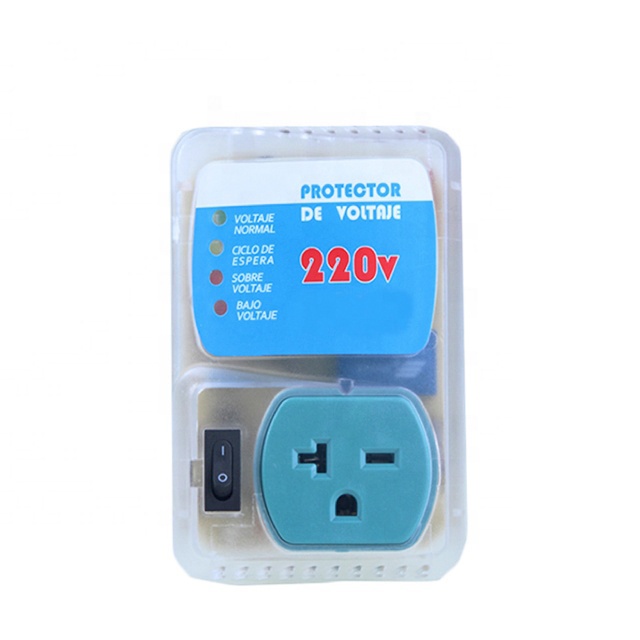

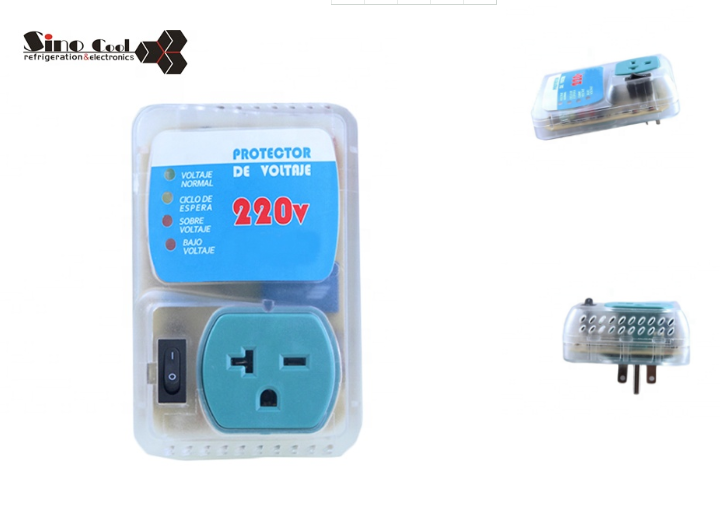

220V AC Voltage Protector for Air Conditioners
This 220V AC voltage protector is designed to safeguard air conditioners and other appliances from voltage fluctuations. It features LED indicators for voltage status and includes a standard AC outlet.
Technical Specifications
Product Overview
Professional AC Voltage Protection
This advanced voltage protector is engineered to safeguard sensitive equipment like air conditioners and major appliances from damaging electrical fluctuations. It features real-time LED status monitoring for voltage conditions and an automated 3-minute delay cycle to ensure power stability. Built with flame-retardant materials and an adjustable under-voltage range, it offers reliable, long-term performance for high-load environments.
Technical Specifications
Key Performance Metrics
220 VAC
Working Voltage
20 A
Max Working Current
4,400 W
Max Power Load
3 mins
Delay Time
Voltage Thresholds
| Parameter | Range/Value |
|---|---|
| Under Voltage | 170-197 VAC (Adjustable) |
| Over Voltage | 265 VAC |
| Frequency | 50-60 Hz |
Physical & Environmental
Dimensions and Build
- Dimensions: 80 x 35 x 120 mm
- Weight: 150g
- Material: Flame retardant PC
- Operating Temperature: -5℃ to +55℃
Logistics & Warranty
Shipping and Support
- Warranty: 1 Year
- Package: Double blister
- Shipping dimensions: 52 x 47 x 37 cm
- Quantity per carton: 50 pieces
Compatibility
- Compatible Appliances
- Air ConditionersRefrigeratorsDryersElectric OvensEngines
