20V Cordless Angle Grinder with Brushless Motor
This 20V cordless angle grinder is equipped with a brushless motor, providing enhanced power and durability. It uses a 100mm grinding disc for efficient material removal and precise control.
Technical Specifications
Overview
High-Performance 20V Brushless Angle Grinder
This 20V cordless angle grinder features a high-efficiency brushless motor that delivers 20-30% more torque and a significantly longer service life compared to traditional brushed models. Designed for professional metal belt cutting and advertisement board assembly, it offers a lightweight, ergonomic solution for aerial and mobile operations. With advanced safety features including a two-step protect switch and anti-exploding slice technology, it ensures reliable performance in demanding work conditions.
Performance Metrics
Performance Highlights
8,500 r/min
No-Load Speed
100 mm
Disc Diameter
20 V
Voltage
Technical Specifications
Technical Details
| Feature | Specification |
|---|---|
| Spindle Diameter | M10 |
| Battery Capacity | 5.0Ah Li-ion |
| Charge Time | 75 minutes |
| Machine Length | 340mm (with battery) |
| Machine Height | 60mm |
| Gear Box Size | 97mm Compact |

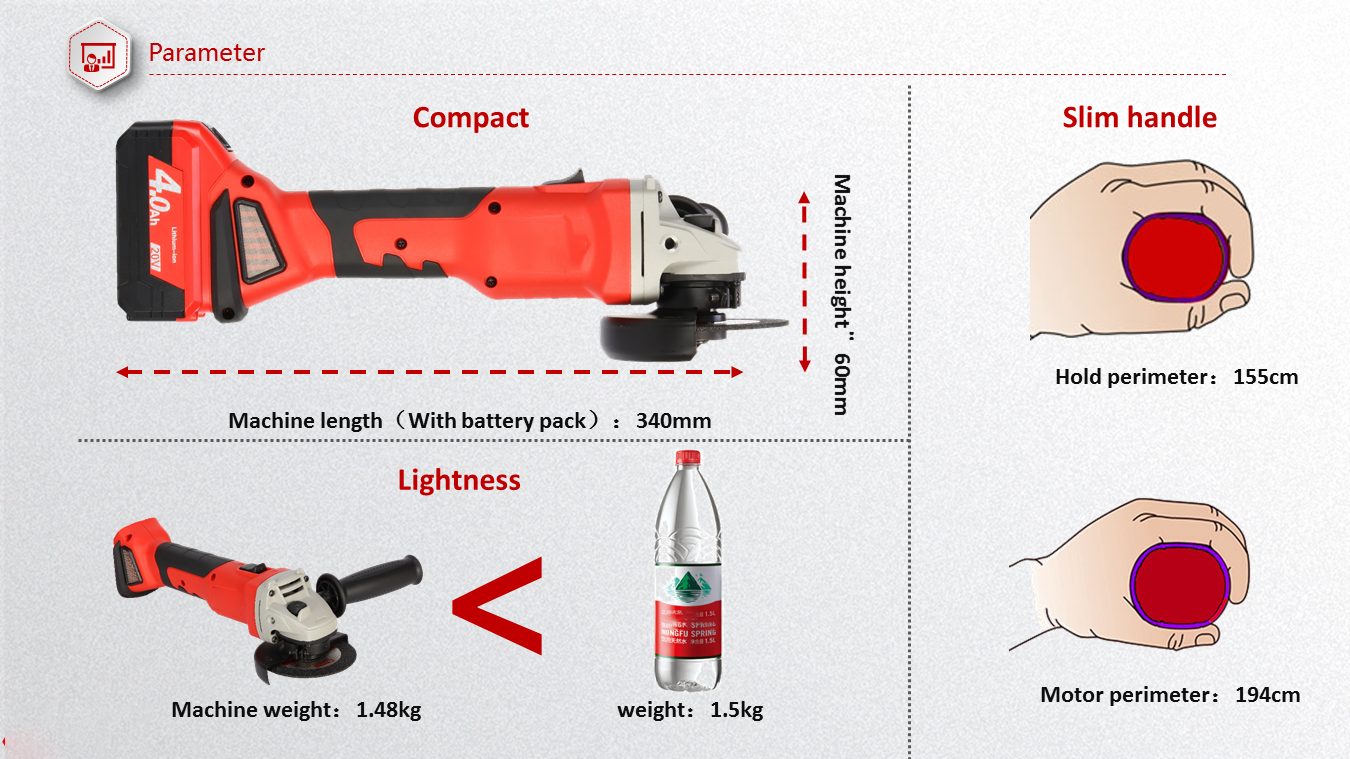

Design & Ergonomics
Ergonomics
- Slim handle with 155mm hold perimeter
- Lightweight 1.48kg body (tool only)
- Coating handle for comfortable grip

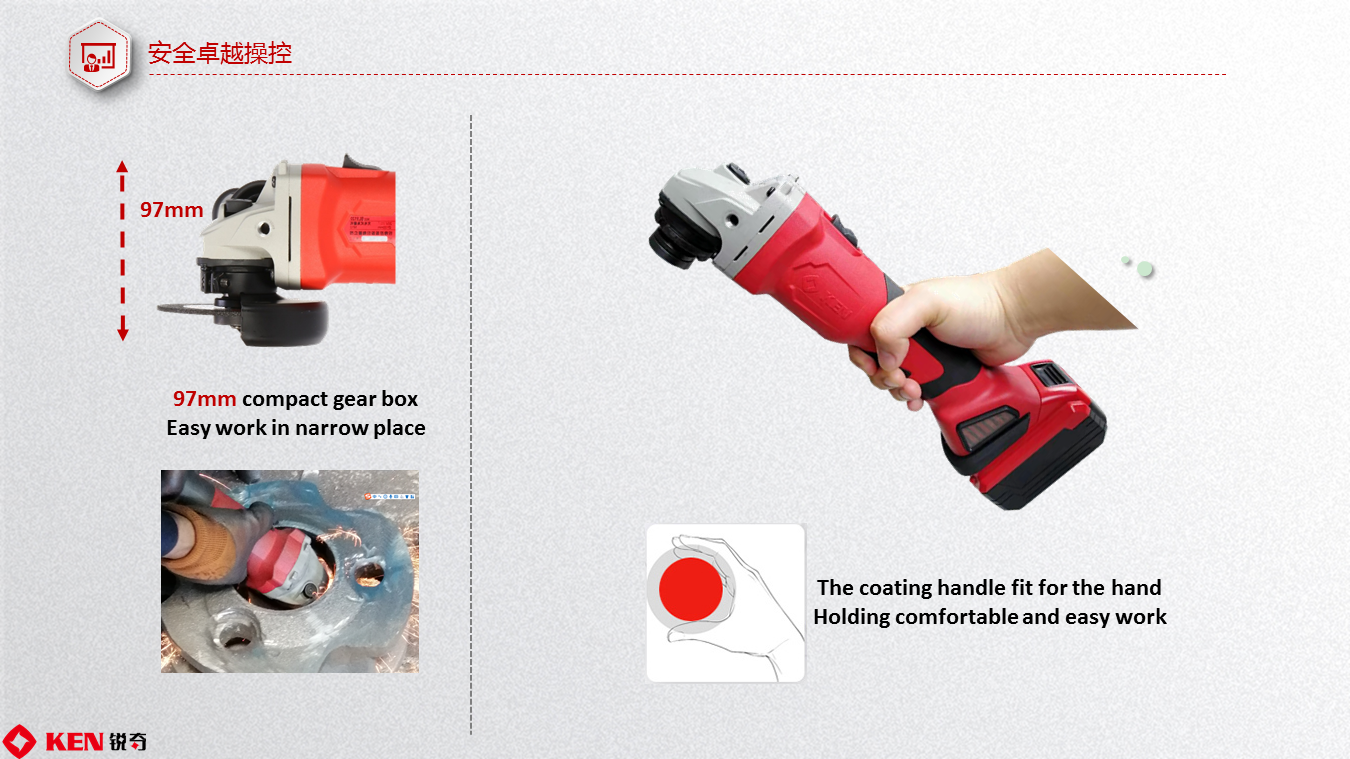

- Compact 97mm gear box for narrow spaces

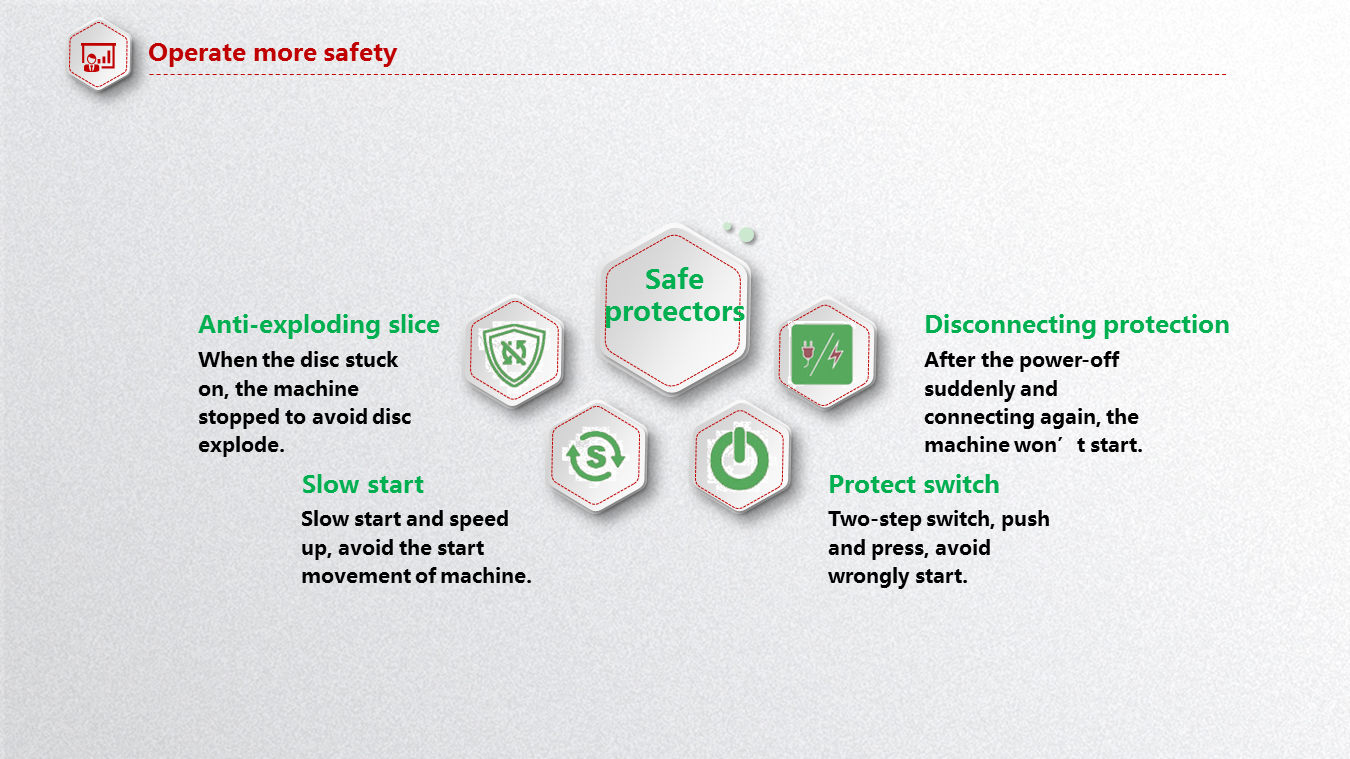

Safety Systems
- Safety Protections
- Anti-exploding sliceSlow startDisconnecting protectionTwo-step protect switchOver-temperature protectionOver-load protectionOver-discharge protectionOver-charge protection
Motor Technology
Brushless Motor Advantages
- 20-30% higher torque efficiency
- 300-400% longer use life
- Maintenance-free (no carbon brushes)

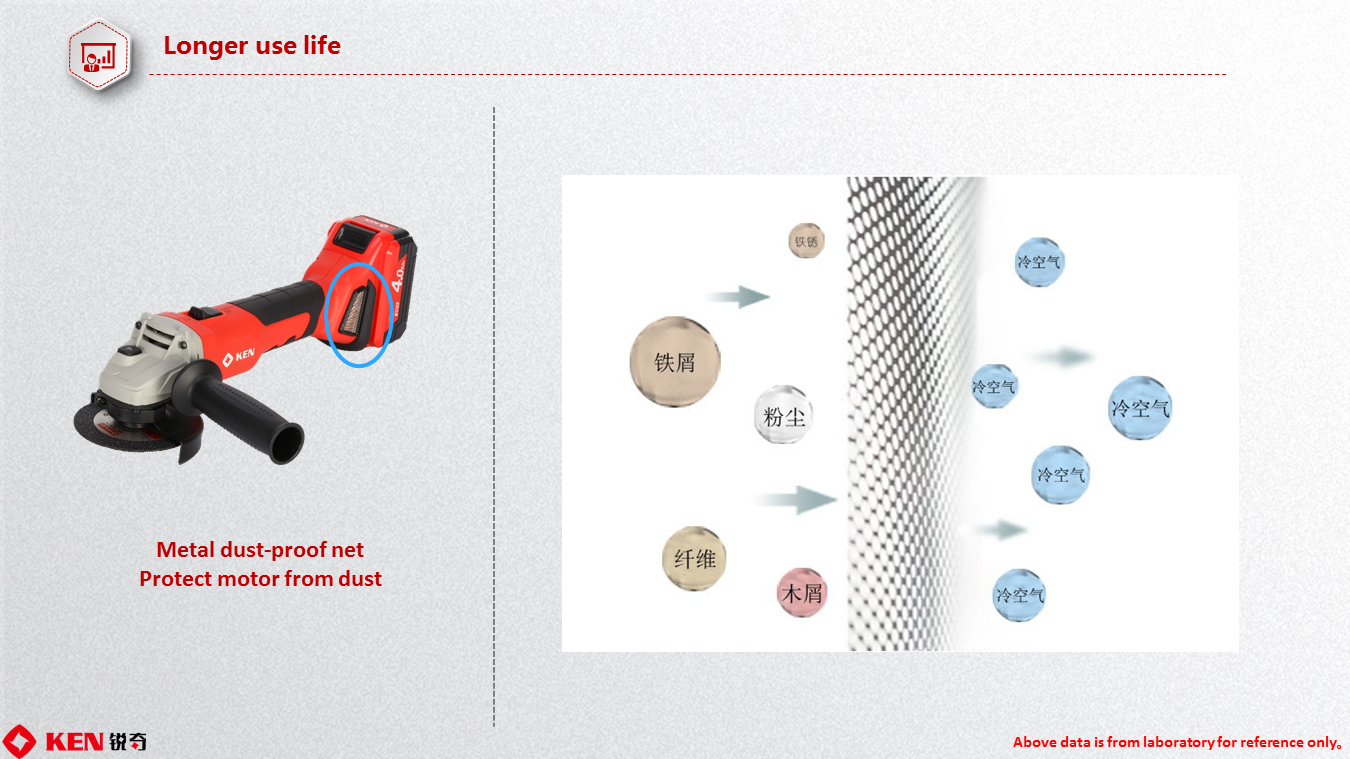

- Metal dust-proof net protection

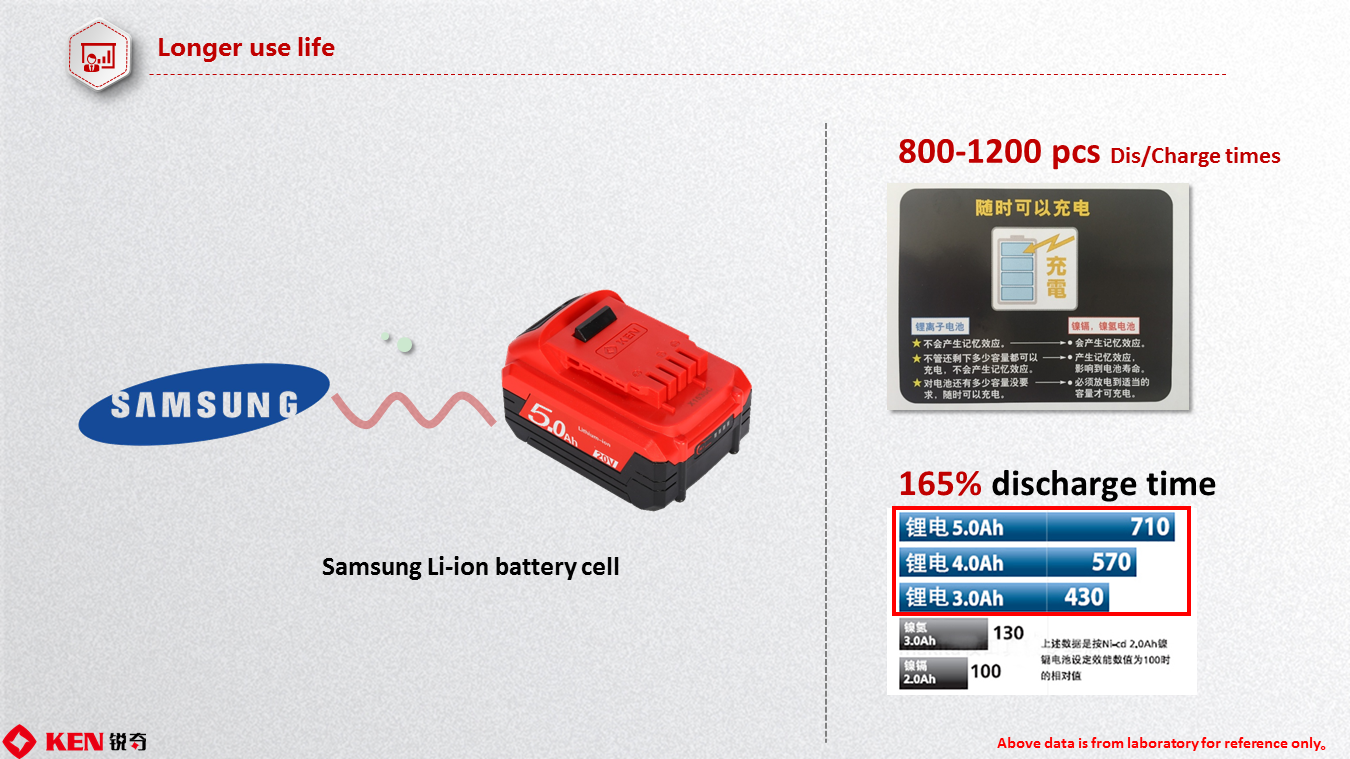

Battery Technology
Battery Performance
- High-quality Li-ion cells
- 800-1200 charge/discharge cycles
- No memory effect (charge at any level)
- 165% discharge time compared to 2.0Ah Ni-Cd
Applications
Recommended Applications
Metal Belt CuttingAngle Bracket CuttingAdvertisement Board AssemblyAerial WorkMobile Operations
