20kW Soundproof Diesel Generator
This 20kW diesel generator features a soundproof enclosure for quiet operation. Designed with a 4-cylinder, 4-stroke engine, it provides reliable power for various applications.
Technical Specifications
Product Overview
Reliable 20kW Soundproof Power Solution

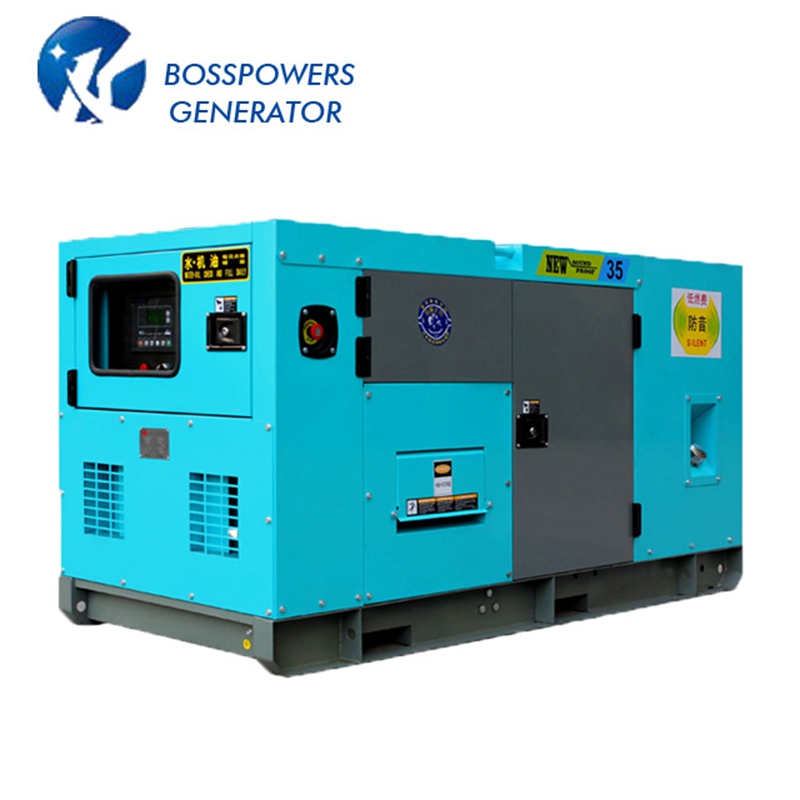

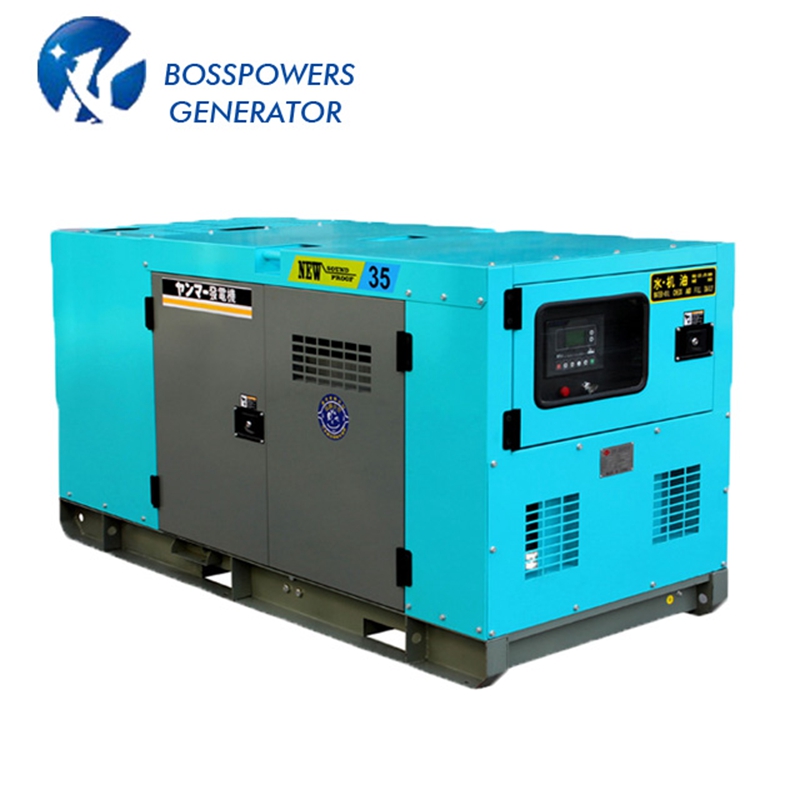

This 20kW diesel generator is engineered for dependable performance in diverse environments, featuring a soundproof enclosure that significantly reduces noise pollution for residential and commercial use. Powered by a robust 4-cylinder, 4-stroke engine, it provides stable power at 50Hz and is designed for easy monitoring via an integrated control panel. Built for durability and efficiency, this unit is an ideal choice for backup, prime, or remote power applications.
Performance Metrics
Key Performance Metrics
20 kW
Prime Power
25 kVA
Capacity
36 A
Rated Current
1,500 Rpm
Rated Speed
- Frequency
- 50 Hz
Engine Specifications
Engine Details
- Heavy duty diesel engine
- 4-Cylinder, 4-Stroke configuration
- Water cooled cooling system
- 12V and 24V starter and charge alternator
- Maintenance-free battery with rack and cable
- Flexible fuel connection hoses
- Manual oil sump drain valve
Operating Conditions
Operating Environment
| Parameter | Requirement |
|---|---|
| Maximum Altitude | 1000m |
| Temperature Range | -15°C to 40°C |
| Relative Humidity | Max 90% |
Technical Features
- Standard Features
- Soundproof EnclosureExhaust SilencerCooling RadiatorIntegrated FanOverload ProtectionLow Fuel Consumption
Model Comparison
Series Specifications
| Model | Power (kW) | Capacity (kVA) | Rated Current (A) |
|---|---|---|---|
| BS-C25 | 20 | 25 | 36 |
| BS-C40 | 32 | 40 | 57.7 |
| BS-C70 | 56 | 70 | 101 |
| BS-C85 | 68 | 85 | 122.7 |
| BS-C120 | 96 | 120 | 173.2 |
| BS-C140 | 112 | 140 | 202 |
| BS-C160 | 128 | 160 | 230.9 |
