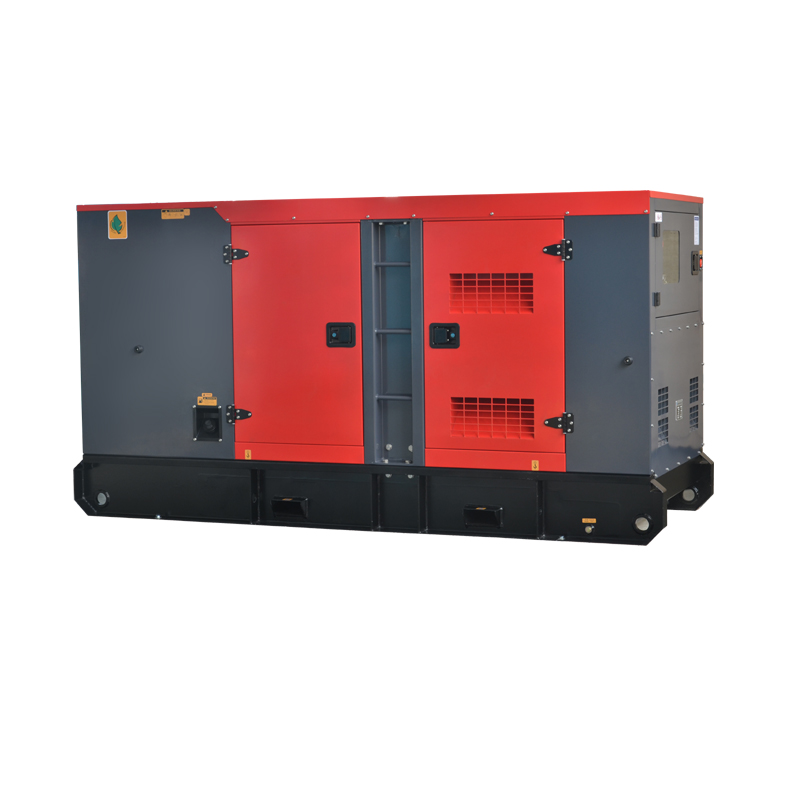

200kW Silent Diesel Generator Set
This 200kW diesel generator set is engineered for dependable power in diverse settings. The soundproof enclosure reduces noise, making it suitable for urban environments.
Technical Specifications
Overview
High-Performance 200kW Silent Diesel Generator
This robust 200kW silent diesel generator set is engineered for reliable backup, prime, or continuous power supply in diverse industrial and commercial environments. Designed with a soundproof enclosure, it effectively minimizes noise pollution, making it an ideal solution for urban or noise-sensitive locations. The unit features an advanced automatic control system and comprehensive safety protections, ensuring efficient operation and durability for critical power requirements.
Performance Metrics
Rated Power
200 kW
Rated Power
250 kVA
Rated Power
- Full Load Fuel Consumption
- 207 g/kw.h
- Noise Level (at 7m)
- 75 dB
Electrical Specifications
Electrical Characteristics
| Parameter | Value |
|---|---|
| Rated Voltage | 400/230V |
| Rated Current | 360A |
| Frequency | 50Hz |
| Power Factor | 0.8 (lag) |
| Phase Connection | Three-phase four-wire |
Engine Specifications
Engine Technical Details
- Type: Four-stroke, waste gas turbine boost, direct injection
- Cooling: Forced closed-cycle water cooling with radiator
- Cylinder Configuration: Inline, 6 cylinders
- Displacement: 8.9L
- Speed: 1500 r/min
- Speed Regulation: Electronic
- Starting: DC24V Electric
Generator Specifications
- Generator Protection & Build
- BrushlessAVR Automatic Voltage RegulationH-Class InsulationIP23 Protection
Physical Dimensions
Physical Specs
3,300 mm
Length
1,300 mm
Width
1,800 mm
Height
3,100 KG
Total Weight
Control System
Control Panel Capabilities
- Automatic and manual start functions (15-50s adjustable)
- Automatic input and switching capabilities
- Real-time monitoring: Voltage, frequency, current, oil pressure, temperature
- Safety shutdowns: Over-speed, low oil pressure, high water temperature
- Electrical protections: Over/under voltage, over/under frequency, short-circuit protection
Accessories
Standard Accessories
Base Oil TankMufflerShock-absorbing padsBattery & cablesToolboxManuals & Certificate
