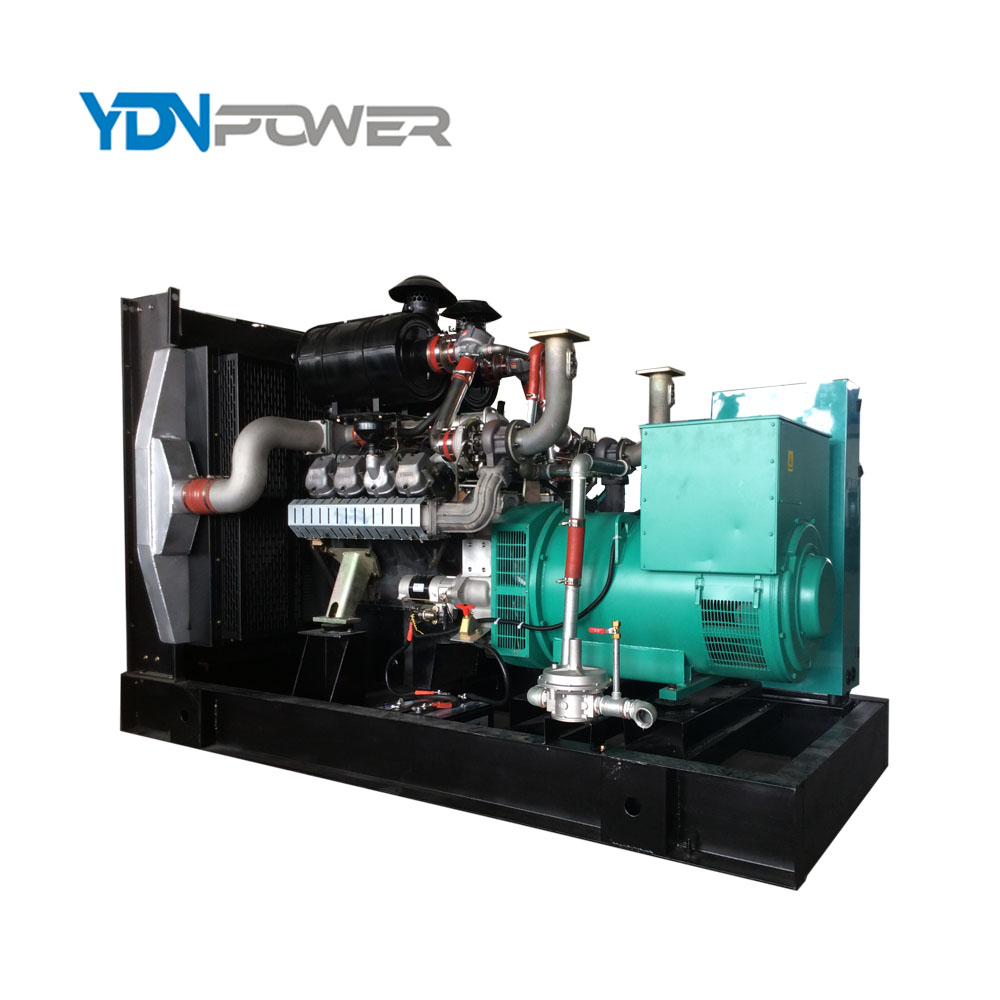

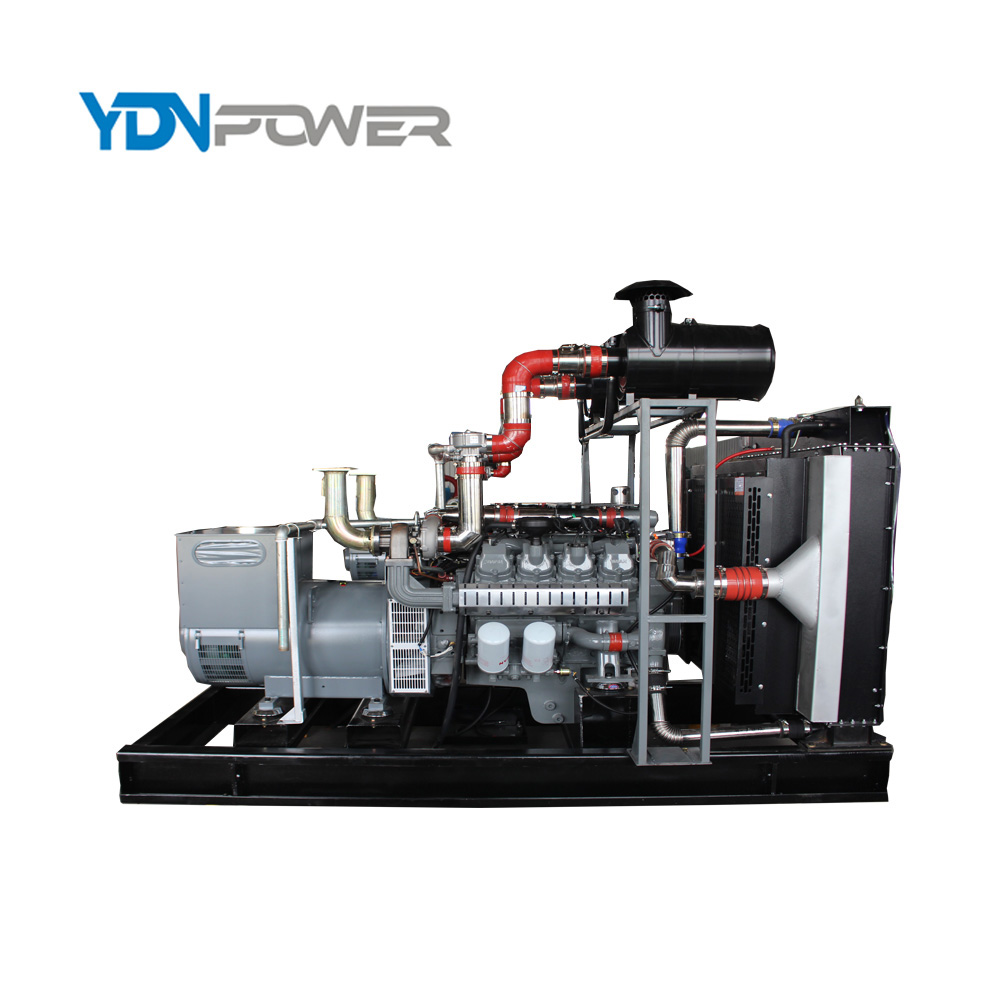

200kW Natural Gas Generator
This 200kW natural gas generator is engineered for continuous, prime, and standby power needs. The generator features a natural gas engine and a high-efficiency alternator, providing a stable and clean power supply.
Technical Specifications
Overview
High-Performance Natural Gas Power Solution
This 200kW natural gas generator is engineered for reliable, continuous power generation in industrial and commercial applications. Built with a heavy-duty 12-cylinder engine and a brushless alternator, it delivers stable electrical output with efficient fuel consumption. The system includes an advanced digital control panel for comprehensive monitoring and protection, ensuring safe operation across diverse environmental conditions.
Performance Metrics
Rated Power
200 kW
Rated Power (kW)
250 kVA
Rated Power (kVA)
Electrical Output
| Parameter | Value |
|---|---|
| Rated Voltage | 220/380 V |
| Frequency | 50 Hz |
| Rated Current | 360 A |
Engine Specifications
Engine Configuration
- Model: DT15
- Type: Four-stroke, Water-cooling, V8-type
- Cylinders: 12
- Rated Speed: 1500 rpm
- Bore x Stroke: 128 x 142 mm
Fuel Efficiency
1 g/KWH
Oil Consumption
60 Nm³/h
Gas Consumption (100% Load)
Control System
Controller Specifications
| Feature | Specification |
|---|---|
| Working Voltage | DC8.0V - DC35.0V |
| Panel Cutout | 214mm x 160mm |
| Weight | 0.95 kg |
Environmental & Physical
Physical Dimensions
- Generator Size: 2850 x 1400 x 1950 mm
- Generator Weight: 3100 kg
- Operating Conditions
- Temp: -25 to +70°CHumidity: 20-93%
