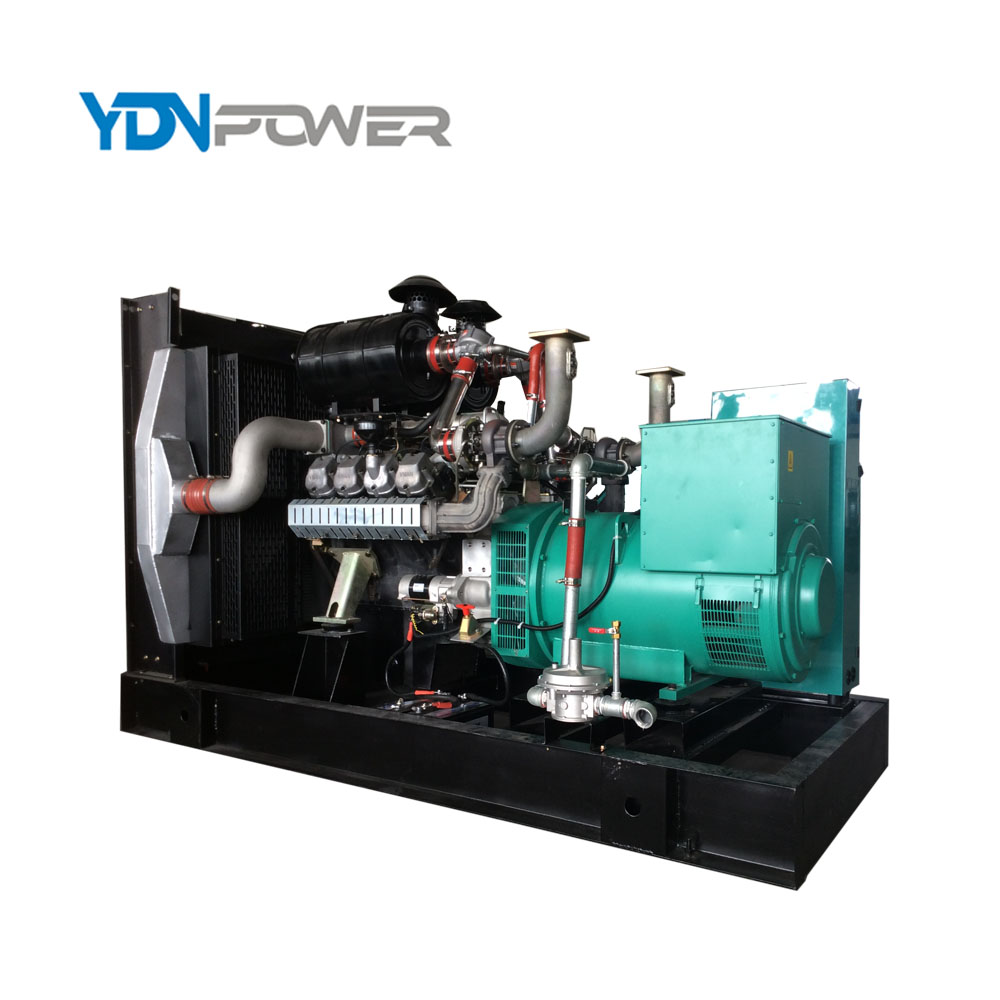

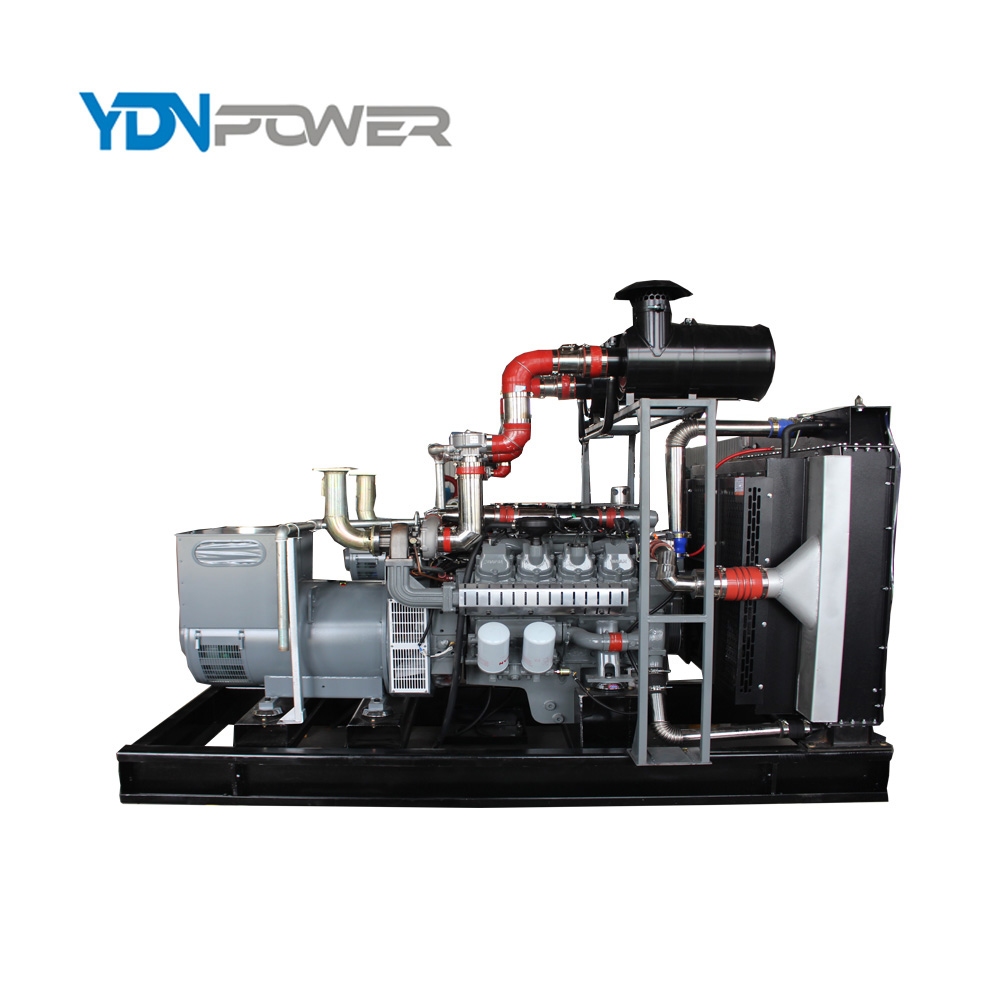

200kW Biogas Generator
This 200kW biogas generator is engineered for reliable and efficient power generation using biogas as fuel. It features a robust V-type engine designed for industrial applications, ensuring consistent performance under demanding conditions.
Technical Specifications
Overview
High-Efficiency Biogas Power Generation
This 200kW biogas generator is engineered for reliable and efficient power conversion, making it an ideal solution for sustainable energy needs in agricultural, landfill, or wastewater treatment facilities. Featuring a robust V8-type engine and an advanced control system, it delivers consistent performance while optimizing fuel consumption. Its compact design and water-cooled architecture ensure durability and ease of integration into existing power systems.
General Specifications
Rated Power Output
200 kW
Rated Power
250 KVA
Rated Power
Electrical Characteristics
| Parameter | Value |
|---|---|
| Rated Voltage | 220/380 V |
| Frequency | 50 Hz |
| Rated Current | 360 A |
Physical Dimensions & Weight
- Dimensions: 2850 x 1400 x 1950 mm
- Weight: 3100 kg
Engine Performance
Core Engine Data
| Attribute | Specification |
|---|---|
| Model | DT15 |
| Type | Four-stroke, Water-cooling, V8-type |
| Cylinder Count | 12 |
| Rated Speed | 1500 rpm |
| Bore x Stroke | 128 x 142 mm |
Consumption Efficiency
1 g/KWH
Oil Consumption
90 Nm³/h
Max Gas Consumption
Alternator Details
Alternator Technical Data
- Model: FLD-200
- Efficiency: 94.5%
- Voltage Regulation: ≤±1%
- Excitation Mode: Brushless, Self Excitation
- Insulation Class: H
Control System
Control System Parameters
- Model: DES 6020
- Working Voltage: DC 8.0V - 35.0V
- Panel Cutout: 214mm x 160mm
Operational Environment
- Working Conditions
- Temperature: -25 to +70°CHumidity: 20-93%
