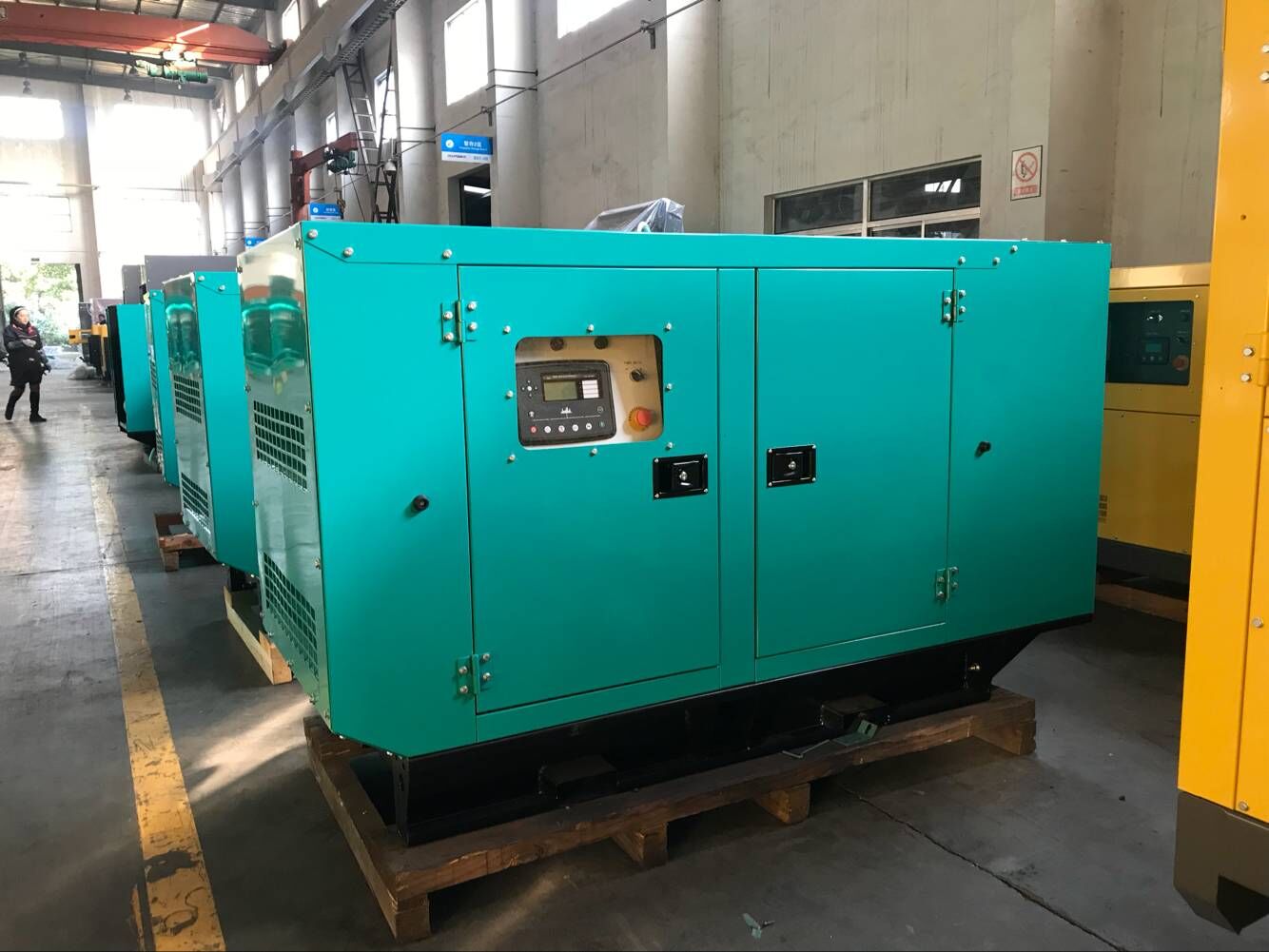

200kVA 160kW 50Hz Diesel Generator Set
This diesel generator set delivers 200kVA or 160kW of power at 50Hz. Designed for dependable power generation, it suits various industrial and commercial applications.
Technical Specifications
Overview
High-Performance 200kVA Power Solution

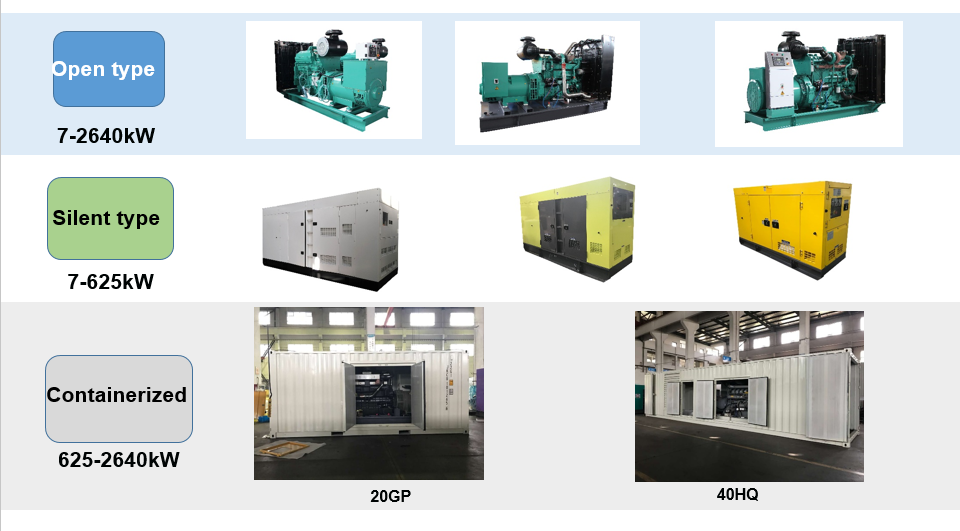

This 200kVA (160kW) diesel generator set is engineered for reliable prime and standby power across industrial, commercial, and emergency applications. Featuring a robust design with high torque and easy-start capabilities, it ensures stable performance even in harsh environments. The unit is available in both open and soundproof configurations, offering flexibility for diverse installation requirements and noise sensitivity levels.
Core Performance
Power Ratings
200 kVA
Prime Power
160 kW
Prime Power
220 kVA
Standby Power
176 kW
Standby Power
- Frequency
- 50 Hz
- Noise Level (Soundproof)
- 75 dBA@7m
Engine & Alternator
Engine Details
- Model: 6CTAA8.3-G2
- High torque and strong power
- Easy to maintain and start
- Alternator Model
- UCI274H
Fuel System
Fuel Consumption (l/hr)
| Load Percentage | Consumption Rate |
|---|---|
| 100% Load | 45 |
| 75% Load | 34 |
| 50% Load | 23 |
| 25% Load | 13 |
Fuel Tank Capacity
- Open Set: 220 Liters
- Soundproof Set: 240 Liters
- Continuous Operation: ≥8 hours
Control & Protection
Protection Functions
- Low oil pressure alarm
- Overvoltage protection
- Over speed protection
- Overload & Short-circuit protection
- High water temperature shutdown
- Control System Options
- DSE4620DSE8610RS232/RS485 InterfaceOptional ATS
Physical Dimensions
- Open Type Dimensions
- 2550 x 960 x 1610 mm (1700 kg)

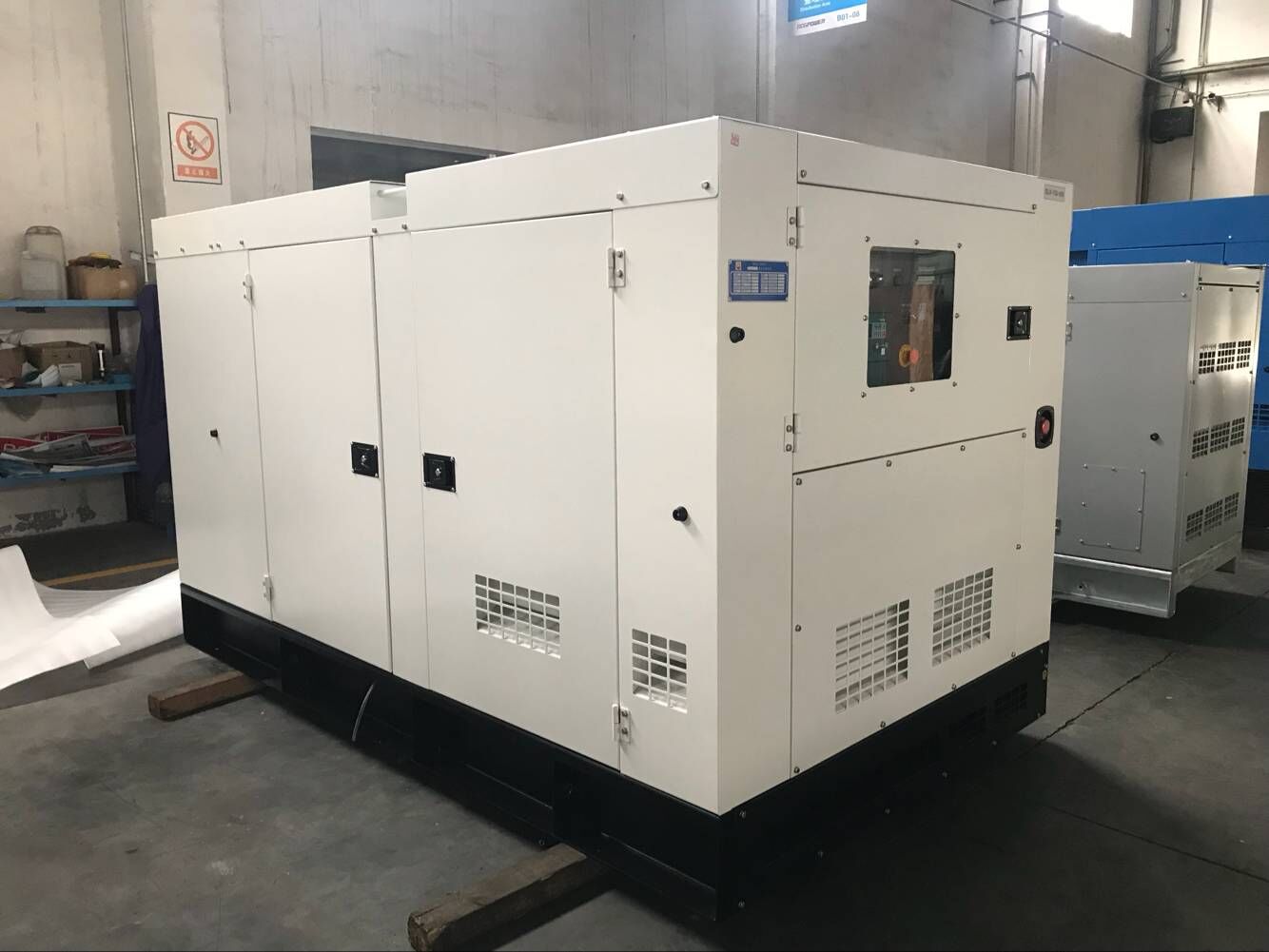

- Soundproof Type Dimensions
- 3430 x 1150 x 1840 mm (2080 kg)
Applications
Suitable Industries
HotelsMedical FacilitiesData CentersMiningOil & GasManufacturingConstruction
Quality & Compliance
- Compliance Standards
- ISO 9001:2008ISO 14001:2004OHSAS 18001:2007CE CertifiedEU & EPA Environmental Standards
