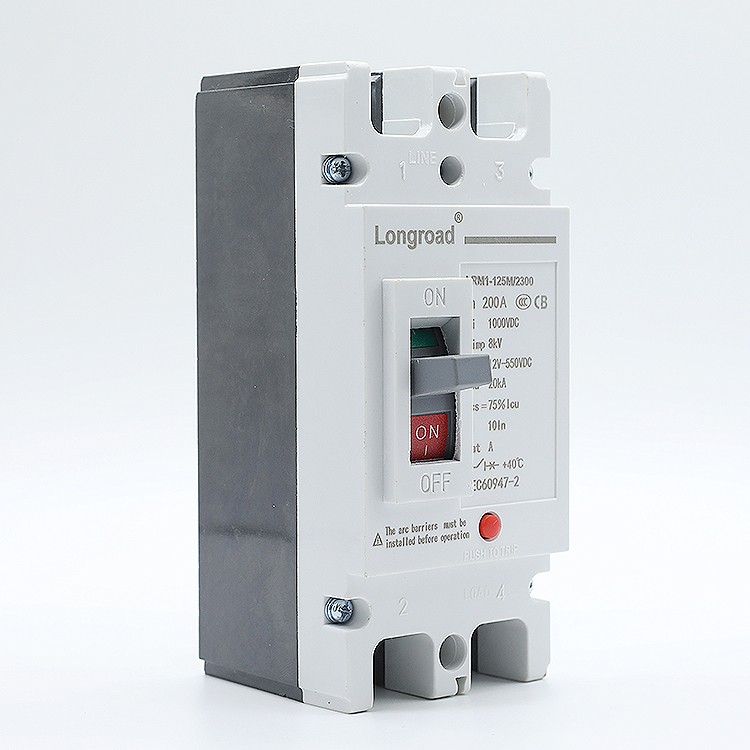

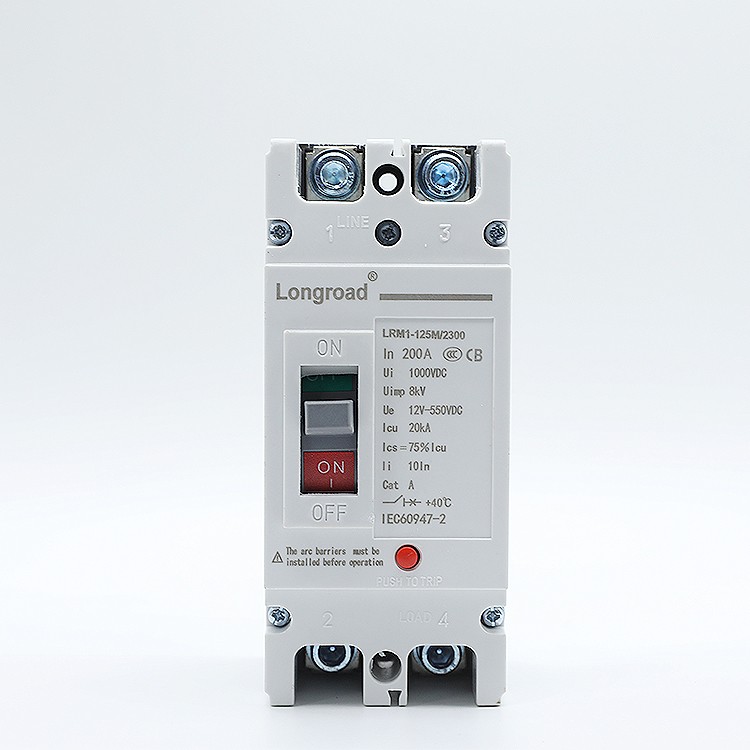

200A Photovoltaic DC Circuit Breaker 1000VDC
This DC circuit breaker is designed for photovoltaic applications. It provides overcurrent and short-circuit protection in DC circuits up to 1000VDC.
Technical Specifications
Overview
High-Performance DC Protection
This DC circuit breaker is specifically engineered for photovoltaic applications, providing reliable overcurrent and short-circuit protection for solar power systems. Designed to handle demanding electrical environments, it supports voltages up to 1000VDC and features a robust 20kA breaking capacity. With integrated safety features like a push-to-trip mechanism and arc barriers, this component ensures both operational efficiency and enhanced safety for DC power infrastructure.
Electrical Ratings
Rated Current (In)
200 A
Rated Current
Voltage Specifications
| Parameter | Value |
|---|---|
| Rated Insulation Voltage (Ui) | 1000V DC |
| Rated Operational Voltage (Ue) | 12V - 1000V DC |
| Rated Impact Voltage (Uimp) | 8kV |
Performance
Service Life
- Mechanical life: 2000 cycles
- Electric life: 10000 cycles
- Breaking Capacity
- 20 kA
- Tripping Characteristics
- 10 times rated current (10In)
Installation & Environment
Protection Degree
IP20
- Operating Temperature
- -25°C to +70°C
Standards & Compliance
- Compliance Standards
- IEC60947-2Category A
