200A 15kV Screened Separable Elbow Cable Connector
This elbow cable connector is molded from peroxide-cured EPDM and is fully shielded and insulated. It is designed for cross-sections from 25mm2 to 125mm2.
Technical Specifications
Product Overview
High-Performance Loadbreak Elbow Connector

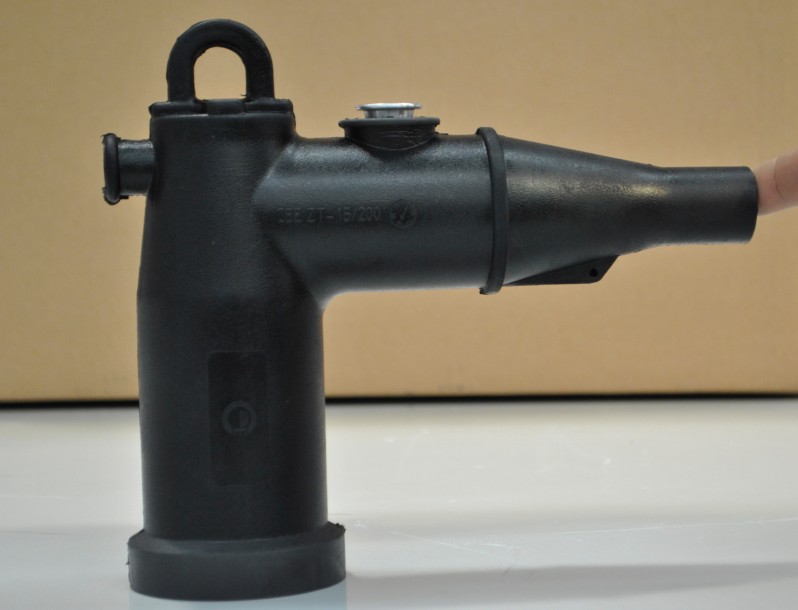

The ZT-15/200 Loadbreak Elbow connector is a fully-shielded and insulated plug-in termination designed for demanding power distribution environments. Molded using high-quality peroxide-cured EPDM insulation, this connector ensures robust protection and reliability when connecting underground cables to transformers, switchgear, and 200A junctions. It features an integrated test point for compatibility with hot line voltage indicators, simplifying maintenance and safety monitoring for professional operators.
Electrical Ratings
Rated Current
200 A
Rated Current
15 kV
Rated Voltage
Technical Specifications
- Insulation Material
- Peroxide-cured EPDM
- Compatible Cable Cross Section
- 25mm² - 125mm²
- Test Point Available
- Yes
Cable Insulation Guide
Cable Insulation Range
| Code | Range (Inches) | Range (mm) |
|---|---|---|
| A | .55~.65 | 14.0~16.5 |
| B | .63~.73 | 16.0~18.5 |
| C | .69~.79 | 17.5~20.0 |
| D | .75~.85 | 19.0~21.5 |
| E | .78~.91 | 20.0~23.0 |
| F | .87~.98 | 22.0~25.0 |
| G | .87~.98 | 22.0~25.0 |
