200A 15kV Loadbreak Elbow Connector

This 200A 15kV loadbreak elbow connector connects underground cables to transformers and switchgear. The separable insulated connector meets IEEE Standard 386 requirements and features an integral test point for voltage detection.

Request a Quote Download PDFPDF

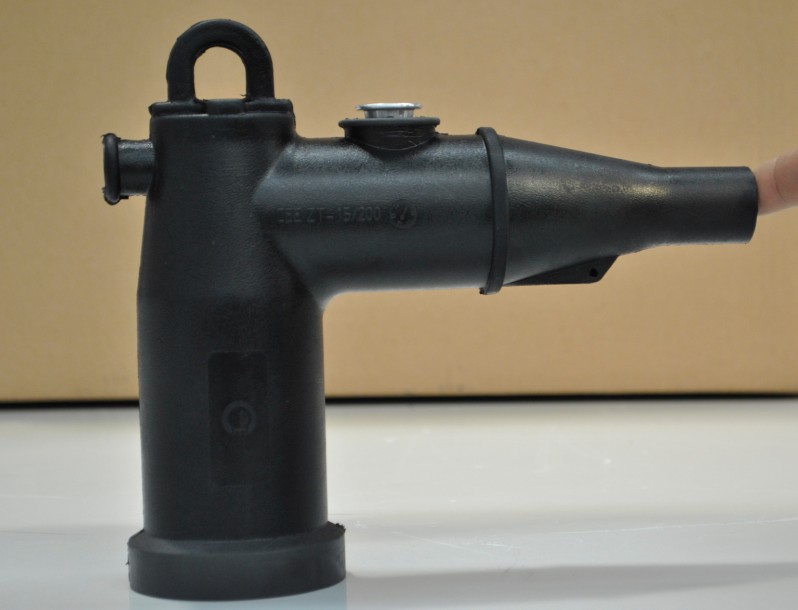

200A, 15kV Separable Loadbreak Elbow Connector 110124 - Image 1

Technical Specifications

Overview

Reliable Underground Cable Termination

The 15kV Loadbreak Elbow Connector is a fully-shielded and insulated plug-in termination designed for secure underground cable connections. Engineered for durability, it is molded from high-quality peroxide-cured EPDM insulation suitable for harsh environmental conditions. This connector provides dependable loadbreak switching characteristics and is fully interchangeable with other industry-standard components.

Electrical Ratings

Rated Current

200 A

Rated Current

Rated Voltage

15 kV

Rated Voltage

Technical Specifications

Compatible Cable Range: 25mm² to 125mm²
Insulation Material: Peroxide-cured EPDM
Key Features: Fully-shieldedSubmersibleLoadbreak ProbeCapacitive Test Point

Compliance & Usage

Typical Applications

Transformers
Switchgear
200A Junctions

Standards Compliance

IEEE 386
