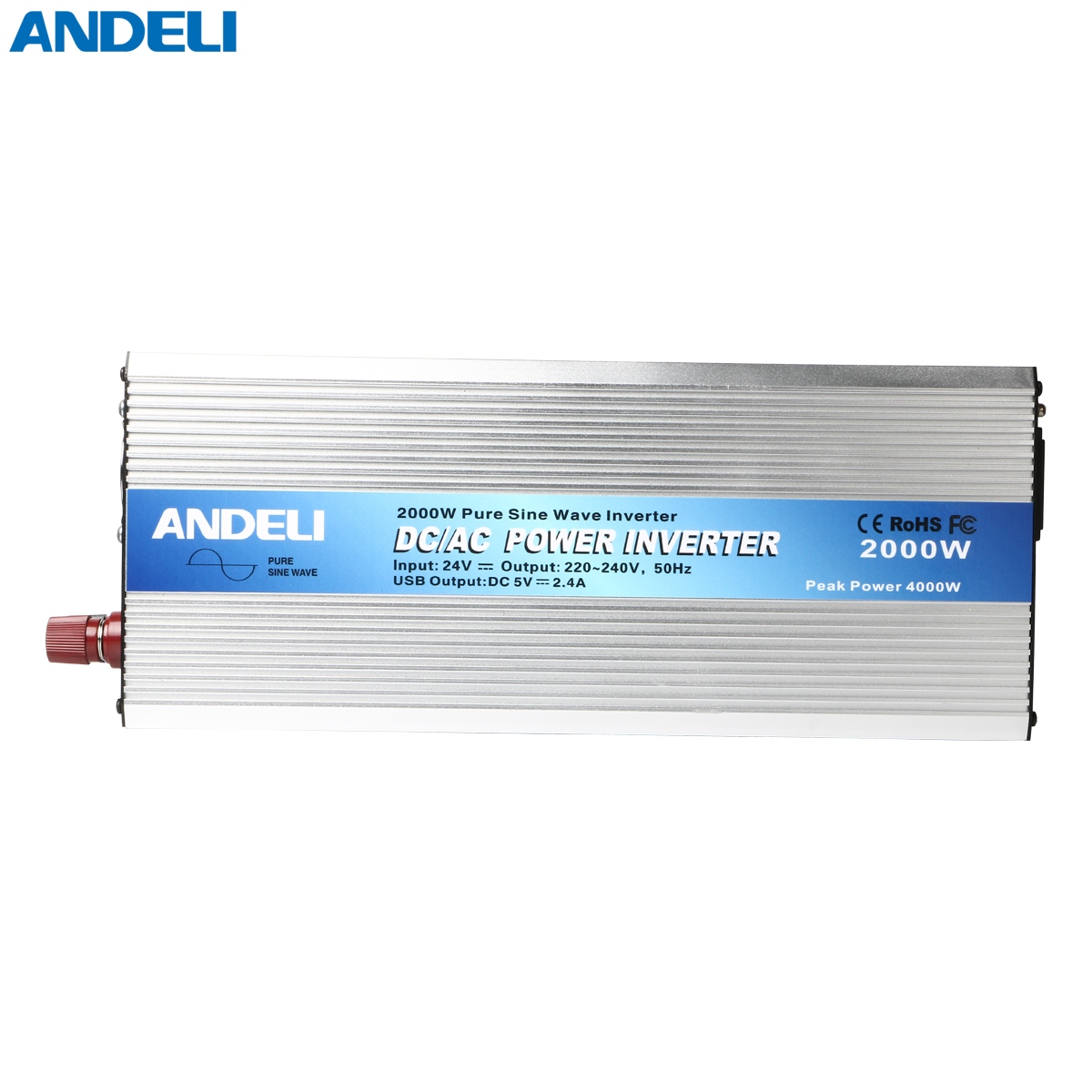

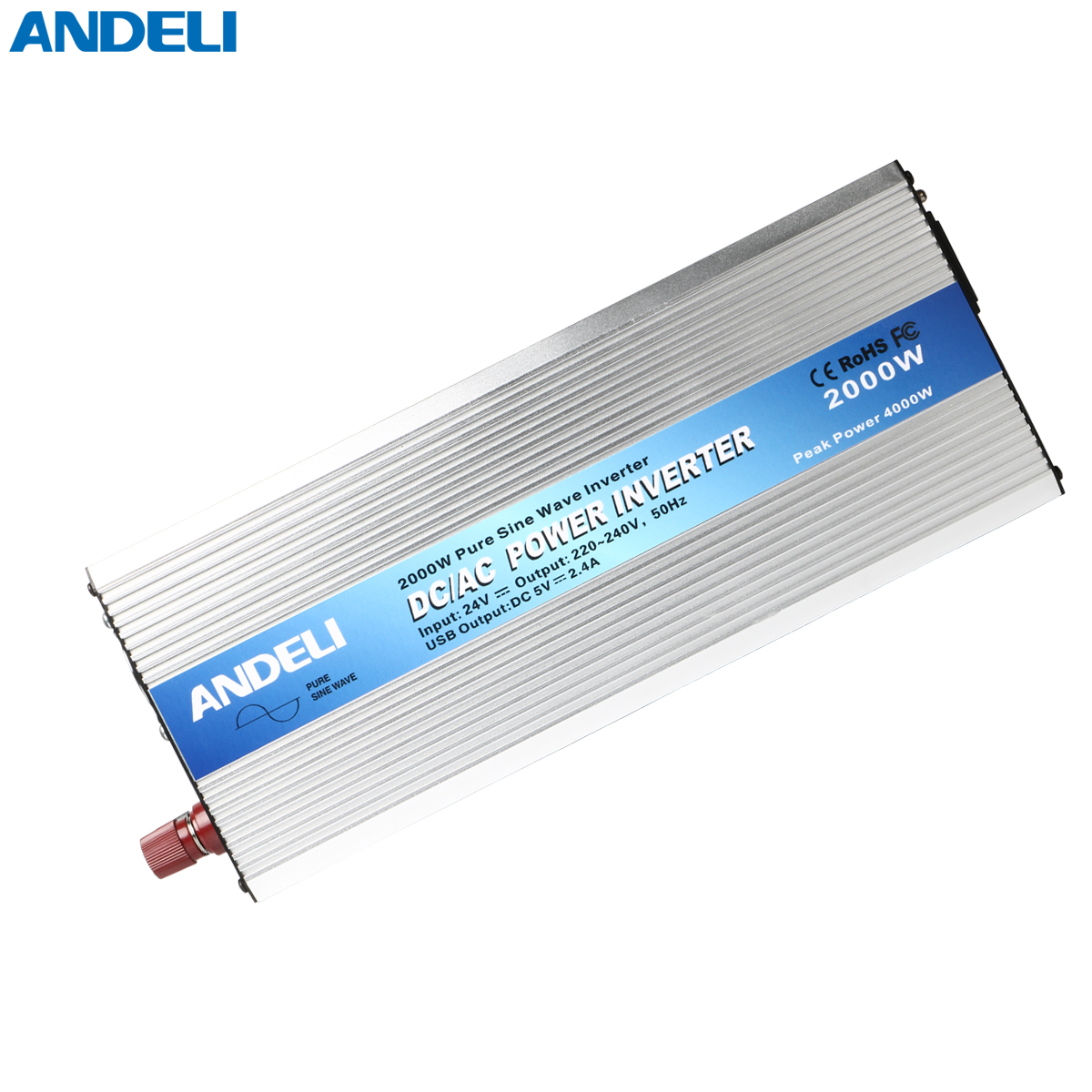

2000W Pure Sine Wave Power Inverter
This 2000W pure sine wave power inverter converts DC power into AC power. It features a robust aluminum shell for efficient heat dissipation and multiple protection functions.
Technical Specifications
Overview
High-Performance Pure Sine Wave Power Inverter
This 2000W power inverter provides a clean and stable pure sine wave output, making it ideal for powering sensitive electronics and household appliances from a 24V DC source. It features a robust aluminum shell for superior heat dissipation and high compressive strength, ensuring durability in industrial or mobile environments. With integrated safety protections and a double CPU design, it offers high conversion efficiency and reliable performance for a wide range of applications.
Power Specifications
Performance Metrics
2,000 W
Continuous Power
4,000 W
Peak Power
24 V DC
Input Voltage
Output Details
- AC Output Voltage
- 220V - 240V AC
- Frequency
- 50Hz
- USB Charging Port
- DC 5V / 2.4A
Protection & Safety
- Safety Protections
- Short Circuit ProtectionOver-Temperature ProtectionOver-Voltage ProtectionUnder-Voltage ProtectionAutomatic Shutdown
Technical Design
- Cooling System
- Intelligent cooling fan (activates automatically at 40°C)
- Control Architecture
- Double CPU design for faster start-up and higher efficiency
Physical Characteristics
Product Dimensions & Weight
| Rated Power | Input Voltage | Size (mm) | Net Weight (kg) |
|---|---|---|---|
| 2000W | 12V/24V | 408 x 152 x 79 | 4.6 |
Applications
Recommended Applications
- Household Appliances
- Office Equipment
- Industrial Tools
- Lighting Systems
- Mobile Power Solutions
Compliance
Certifications
CEROHSFCC
