Technical Specifications
Overview
Professional AC Voltage Regulation

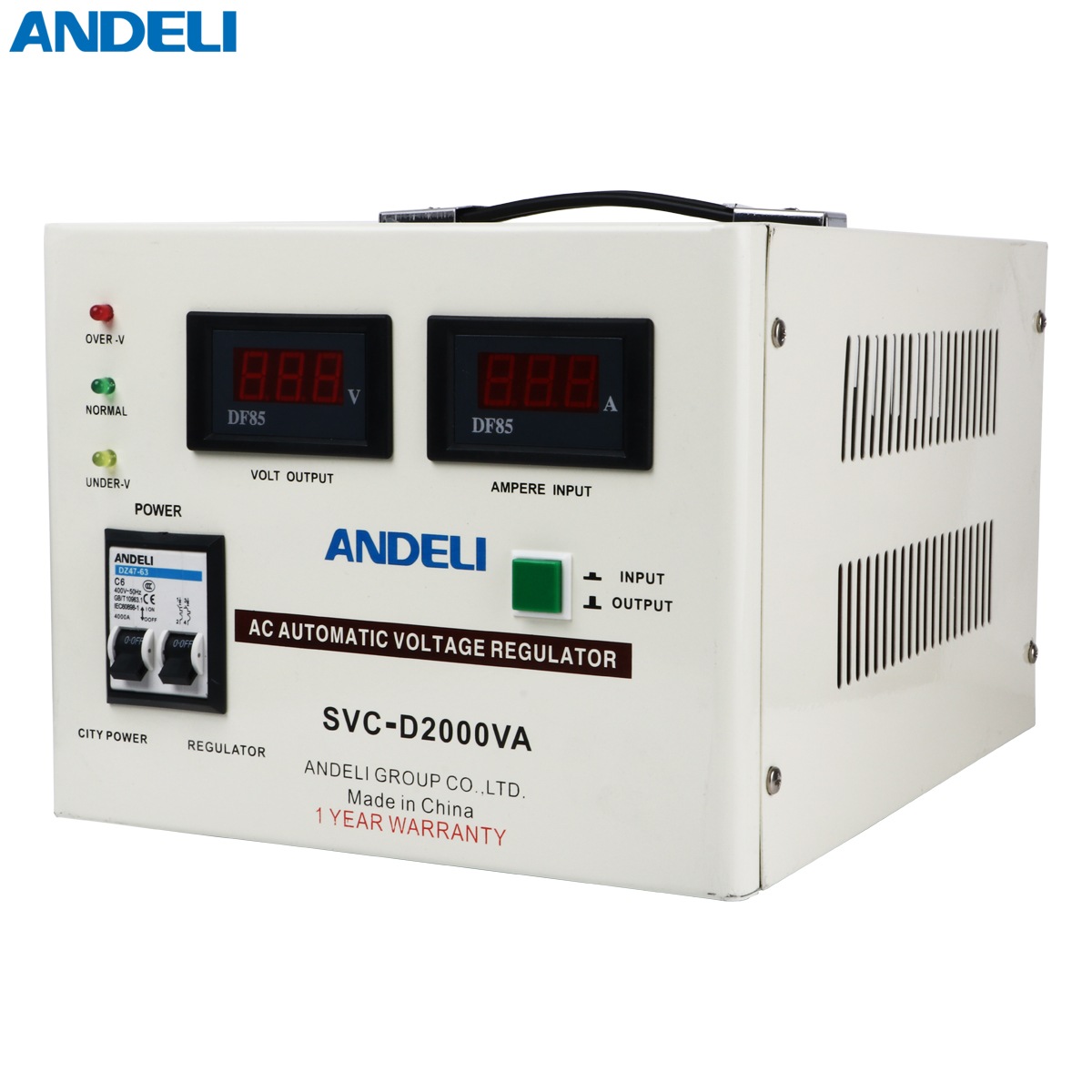

This 2000VA Automatic AC Voltage Regulator is engineered to protect sensitive electrical equipment from power fluctuations, surges, and sags. It features a robust design with high-quality internal components, including an integrated circuit and a high-precision copper coil. With dual output voltage options, it provides versatile and reliable power stability for various professional applications.
Technical Specifications
Performance Metrics
90 %
Efficiency
1 sec
Response Time
0.8 cosφ
Power Factor
- Power Capacity
- 2000 VA

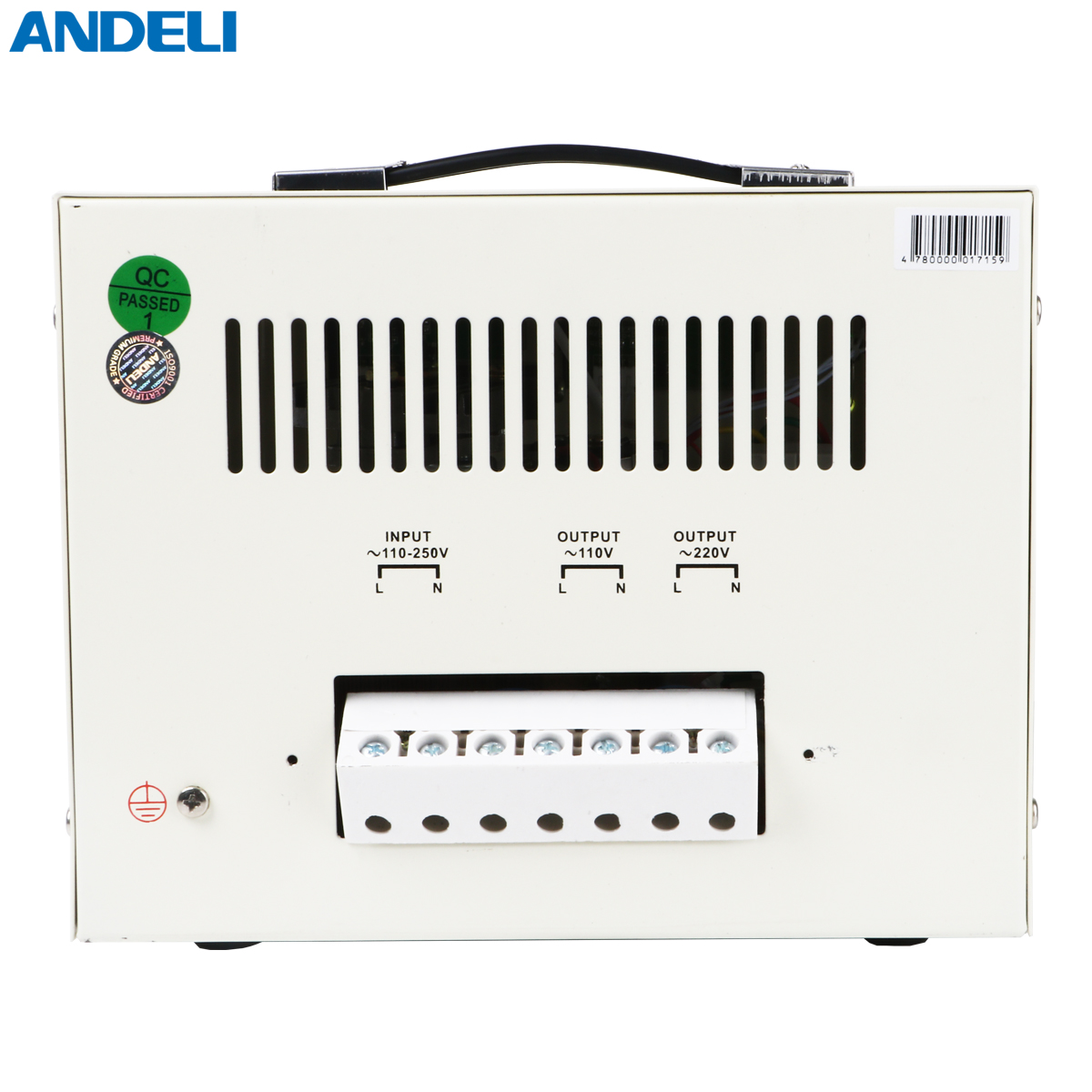

- Input Voltage Range
- 110V-250V
- Output Voltage
- 110V220V
Operating Environment
Operating Conditions
| Parameter | Value |
|---|---|
| Operating Temperature | -10°C to +40°C |
| Relative Humidity | < 90% |
| Insulation Resistance | > 5MΩ |
Certifications
- Compliance
- ISO 9001CEGB/T 10963.1IEC 60898-1
