Technical Specifications
Overview
High-Capacity Testing Solution
This 2000kVA Resistive Reactive Load Bank is designed for rigorous testing and performance verification of high-power UPS systems, inverters, and diesel generator sets. It provides a comprehensive solution for both resistive and inductive load testing, utilizing a modular design for simple operation and maintenance. Built for durability, the unit features forced air cooling and automatic overheating protection, making it a reliable choice for telecom, electric power, and industrial manufacturing applications.
Performance Metrics
Rated Power Capacity
2,000 kVA
Apparent Power
1,600 kW
Resistive Load
1,200 kVAR
Inductive Load
- Load Tolerance
- ±5% per step, ±3% overall
- Power Factor
- 0.8 (lag) to 1
Technical Specifications
Protection Grade
IP55
- Rated Voltage/Frequency
- 400V, 3 phase 4 wire, 50Hz
- Cooling System
- Forced air cooling via axial fan; horizontal inlet, vertical exhaust
- Insulation Class
- F
- Duty Cycle
- Continuous
Control & Connectivity
- Control Modes
- Local Panel ControlSoftware Remote Control
- Communication Interfaces
- RS485RS232
Physical Characteristics
- Dimensions
- 4000mm x 2350mm x 2591mm
- Weight
- 7900 kg
- Enclosure Type

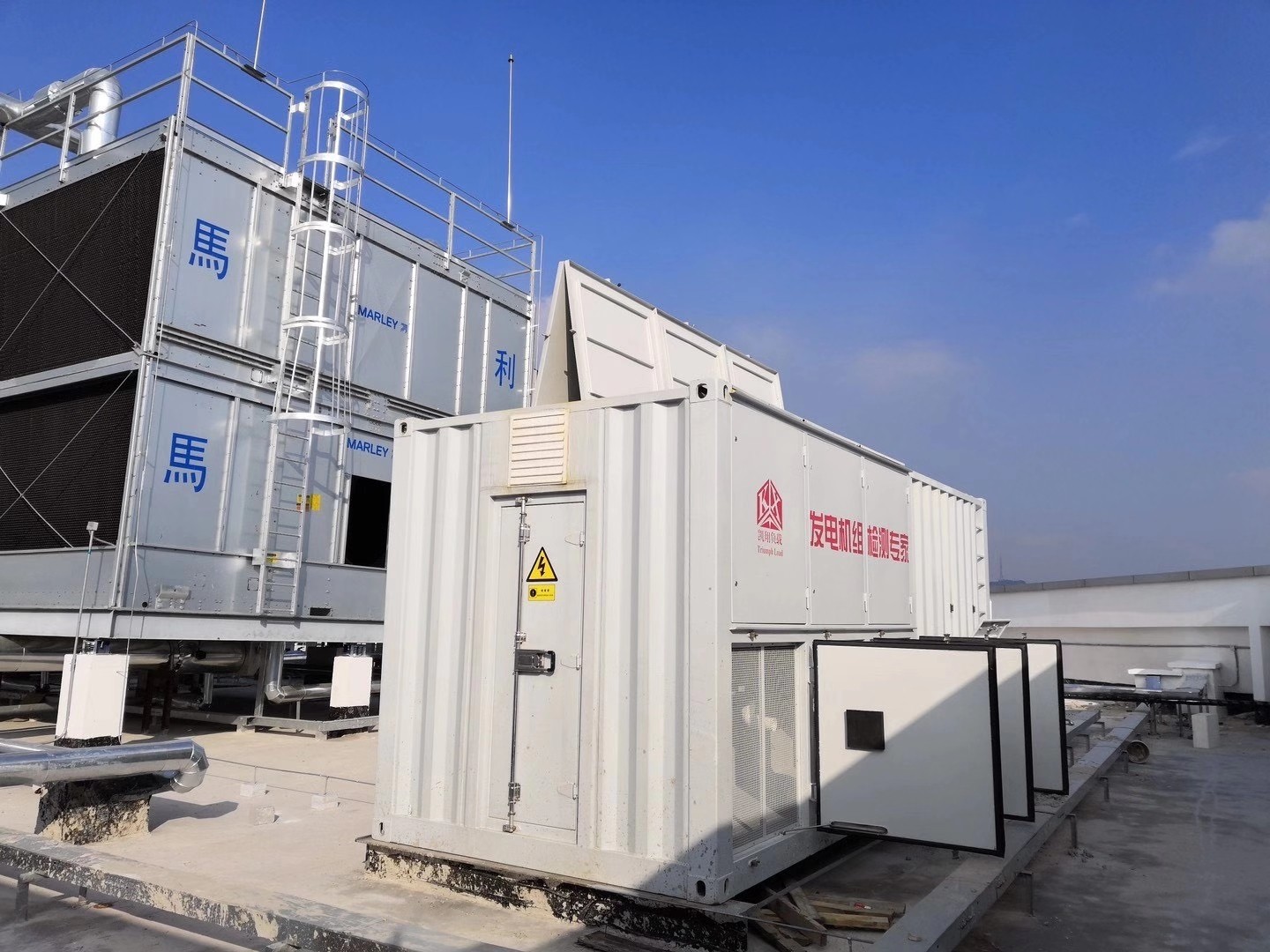

- Container type with ladder, mesh air inlets/outlets, and protection doors
Operating Environment
Ambient Conditions
| Parameter | Range |
|---|---|
| Ambient Temperature | -20℃ to +50℃ |
| Relative Humidity | ≤95% |
| Atmospheric Pressure | 86 to 106 kPa |
