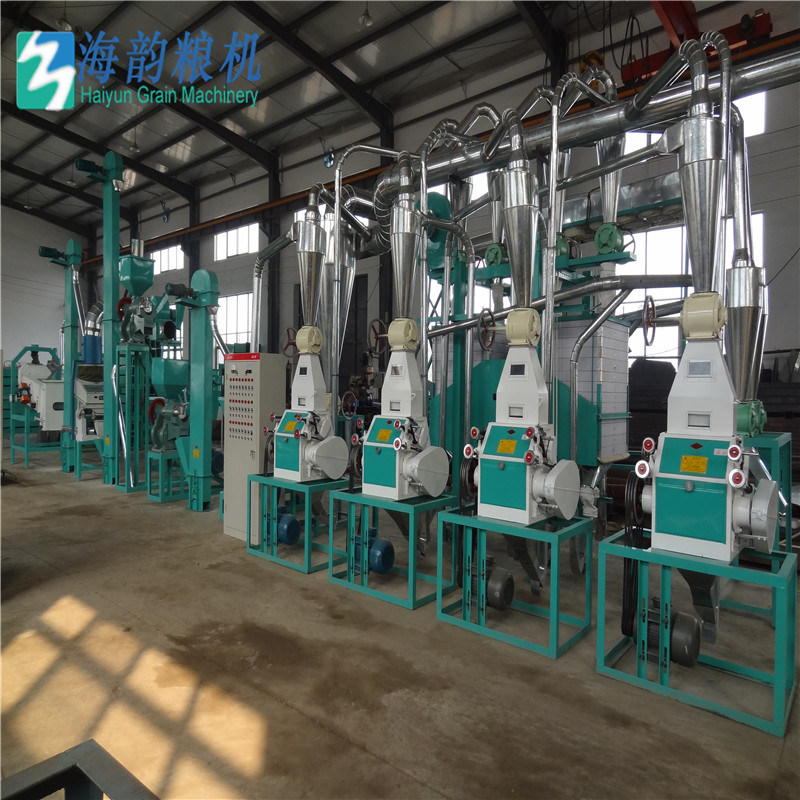

20-Ton per Day Corn Flour Milling Plant
This corn flour mill machine plant processes corn into flour at a rate of 20 tons per day. It utilizes milling stations with rollers and sifters and includes pneumatic conveying systems for material transfer and dust control.
Technical Specifications
Overview
High-Efficiency Corn Milling Solution
This industrial corn flour milling plant is engineered for consistent, large-scale production, processing 20 tons of raw material per 24-hour cycle. The system utilizes a multi-stage process of cleaning, grinding, and sifting to deliver high-quality corn flour and grits that meet national standards. Designed with a horizontal structure, this plant offers a comprehensive solution for commercial grain processing with integrated dust control and centralized electrical monitoring.
Performance Metrics
Daily Input Capacity
Final Product Yield
| Product Type | Yield Percentage |
|---|---|
| Corn Flour | 50-60% |
| Corn Grit | 15-20% |
| Feed Powder (Bran, etc.) | 15-19% |
Technical Specifications
- Power Requirements
- 120 kw
- Operating Environment
- 380V Voltage50Hz FrequencyBelow 1500m Elevation
- Equipment Dimensions
- L17m x W5m x H5m
Raw Material Requirements
Raw Material Standards
- Primary material: Flint corn
- Moisture rate: Within 17%
- Bulk density: > 710g/L
- Hard corn rate: > 70%
Operational Requirements
Staffing Requirements Per Shift
- 1 Operation technician
- 6 Workers (packing and conveying)
Installation & Service
Installation and Training Service
The installation service is provided as a charging service, covering installation guidance, test running, and local worker training. The process typically requires one engineer on-site for 30-40 days. The buyer is responsible for technician travel, accommodation, local transportation, insurance, and a daily service fee. The customer must provide 4-6 workers to assist the engineer and handle civil engineering requirements.
