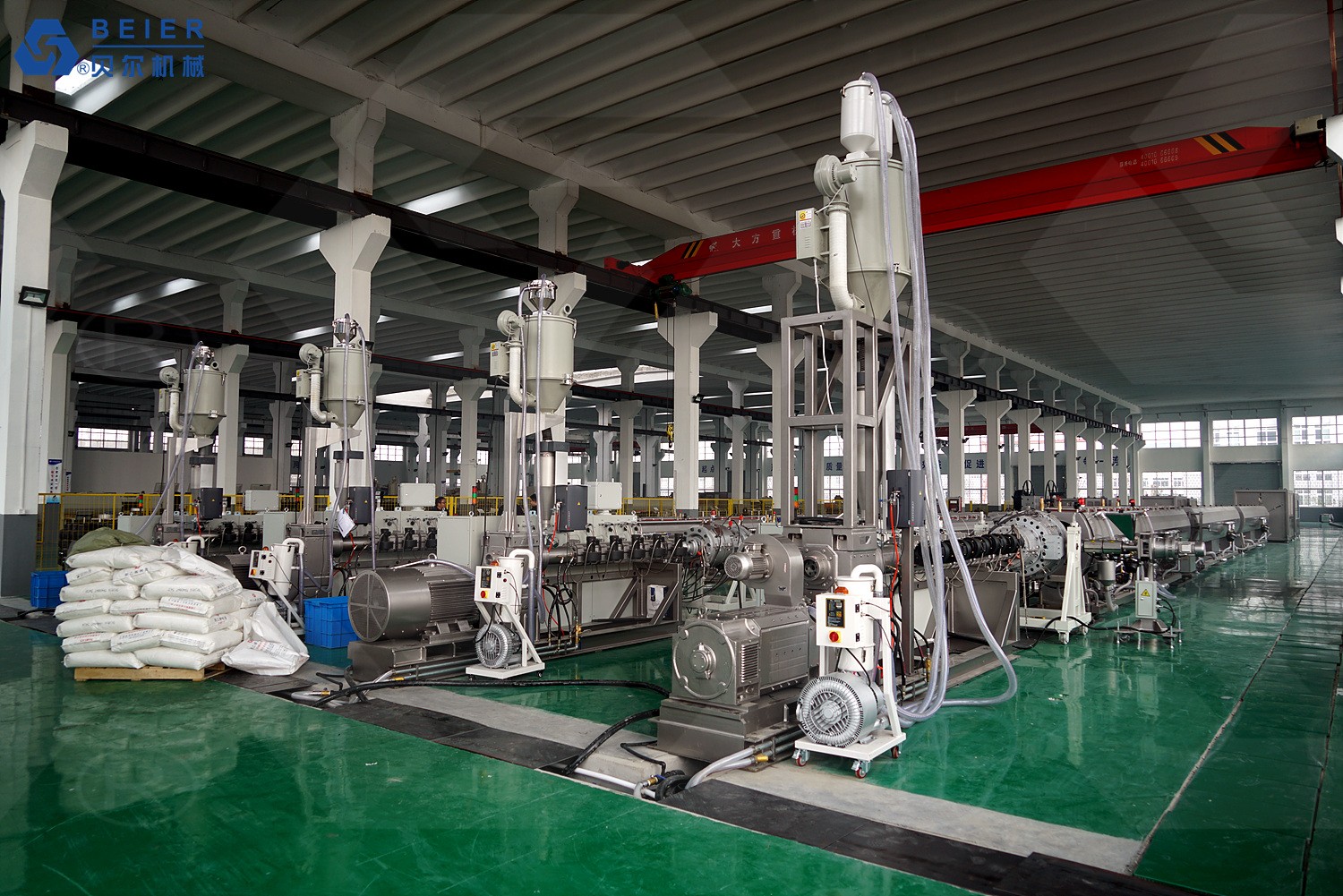

20-63mm Dual HDPE PE PP-R Pipe Extrusion Line
This dual pipe extrusion line is designed for the production of HDPE, PE, PP, and PP-R pipes ranging from 20mm to 63mm in diameter. It is equipped with advanced control systems to ensure stable and reliable operation, producing high-quality pipes with consistent dimensions and excellent mechanical properties.
Technical Specifications
Overview
High-Efficiency Dual Pipe Extrusion
This high-speed extrusion line is engineered for the simultaneous production of two HDPE, PE, PP, or PP-R pipes, significantly increasing output efficiency for B2B manufacturers. The system features a high-torque gearbox and a stability-focused running system designed to lower electrical and water consumption. With advanced vacuum calibration and multi-section cooling, it ensures consistent pipe dimensions and excellent mechanical properties for water supply, drainage, and gas distribution applications.
Technical Capabilities
Pipe Diameter Range
- Compatible Materials
- HDPEPEPPPP-R
Extruder Specifications

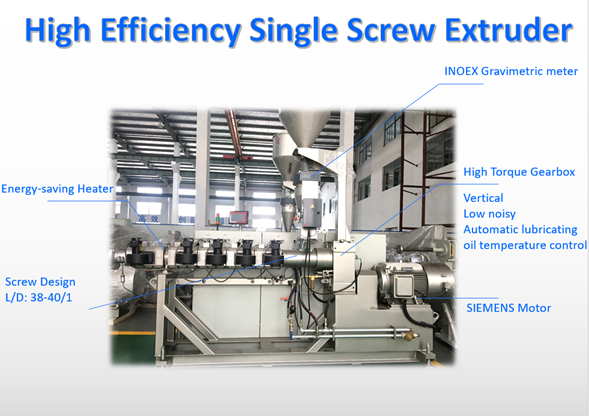

Extruder Features
- High efficiency single screw design
- Spiral grooved bush structure
- High torque vertical gearbox
- Automatic lubricating oil temperature control
- Low noise operation
- Energy-saving heaters
- Screw L/D Ratio
- 38-40/1
Components & Calibration

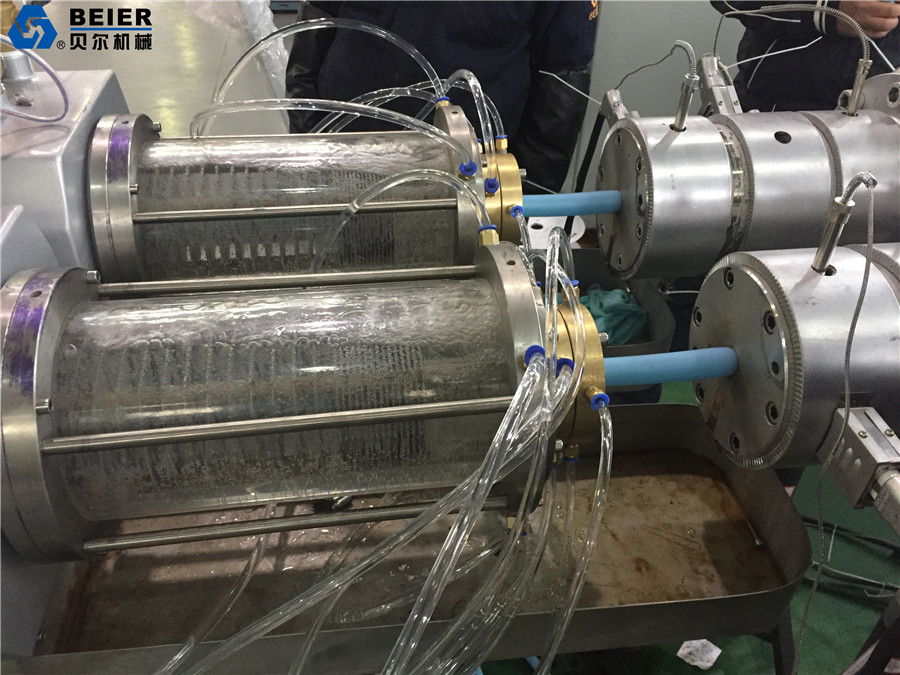

Cooling & Vacuum System
- 9m Two-chamber vacuum design
- Multi-section water membrane cooling
- Double disk calibration sleeve
- Brass and glass material construction
- Die Head Technology
- Spiral head channel with static mixing system for international pressure distribution
Control & Drive System
System Components
| Component | Specification/Feature |
|---|---|
| Main Motor | Siemens Brand |
| Inverter | ABB Brand |
| Control System | PLC Automated Control |
| Reducer | Falk Brand |
| Measurement | Gravimetric Meter |
