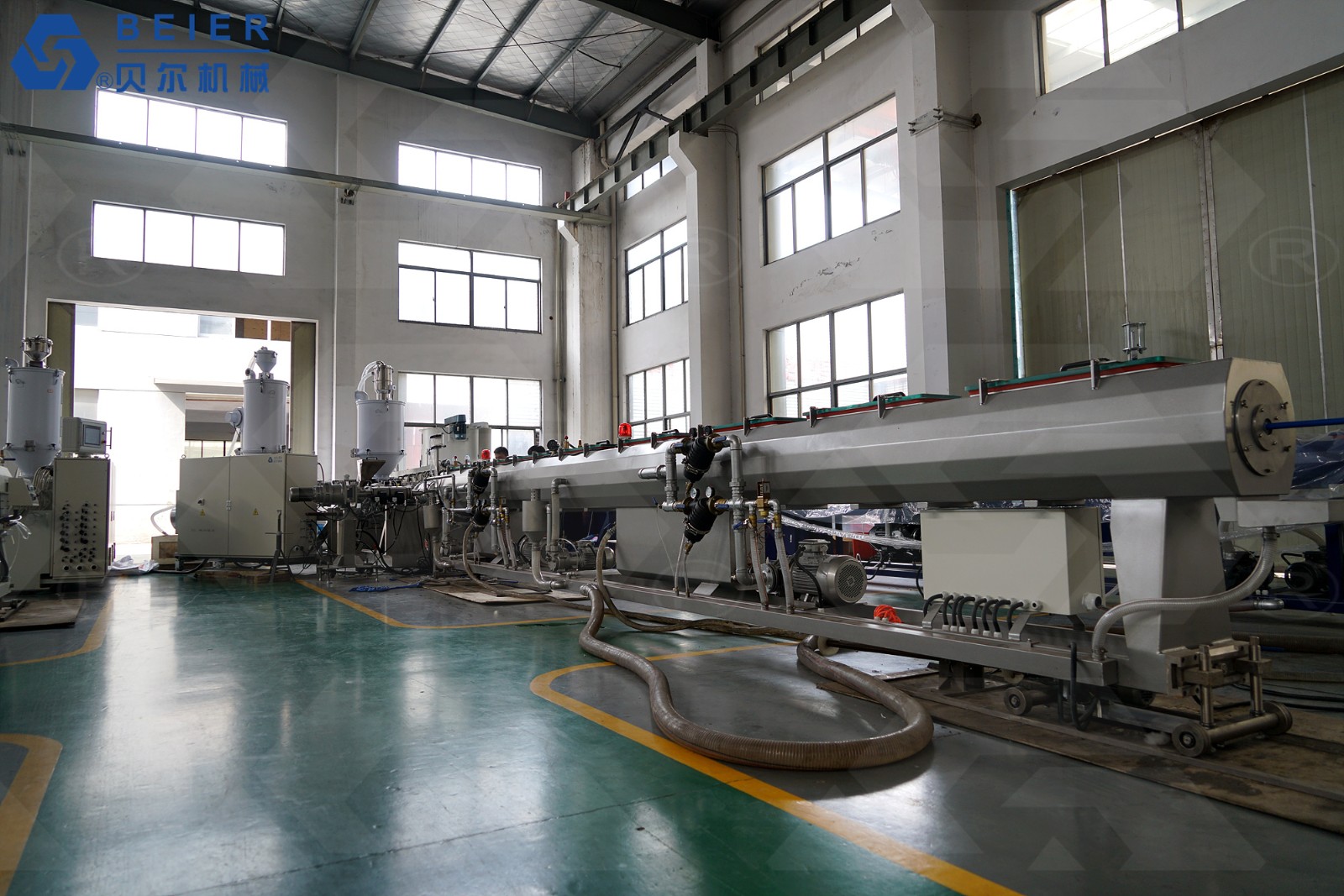

20-160mm HDPE PE PP PP-R Pipe Extrusion Line
This pipe extrusion line is designed for the production of HDPE, PE, PP, and PP-R pipes with diameters ranging from 20mm to 160mm. It features advanced control systems for precise temperature and speed regulation, ensuring consistent pipe quality and dimensional accuracy.
Technical Specifications
Overview
High-Efficiency Pipe Extrusion Solutions
This high-speed extrusion line is engineered for the professional production of HDPE, PE, PP, and PP-R pipes ranging from 20mm to 160mm. It features a high-efficiency single screw extruder with a specialized L/D ratio for optimal melting and material homogeneity. Designed for energy efficiency and stability, the system integrates advanced cooling and vacuum calibration technologies to ensure consistent pipe quality for water, gas, and industrial applications.
Technical Performance
Pipe Diameter Range
20 mm
Minimum Diameter
160 mm
Maximum Diameter
- Compatible Materials
- HDPEPEPPPP-R
Extrusion System

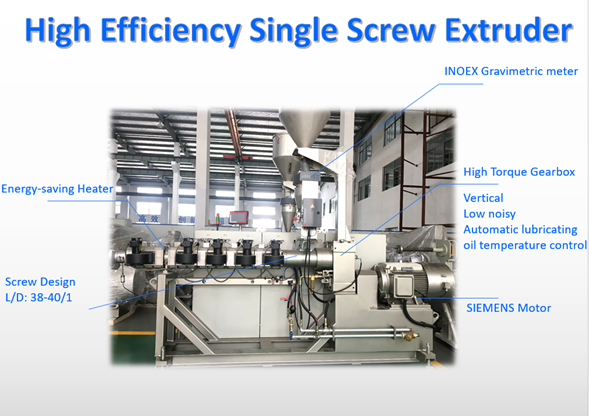

Extruder Features
- High efficiency single screw structure
- Spiral grooved bush design
- L/D Ratio: 38-40/1
- High torque vertical gearbox
- Automatic lubricating oil temperature control
- Low noise operation
Premium Components
Siemens MotorFalk ReducerABB InverterPLC Control SystemINOEX Gravimetric Meter
Cooling & Calibration
Cooling & Calibration Specs
- 9m Two-chamber vacuum design
- Multi-section water membrane cooling
- Double disk calibration sleeve
- Brass and glass material construction
- Spiral head channel for crisscrossed material flow

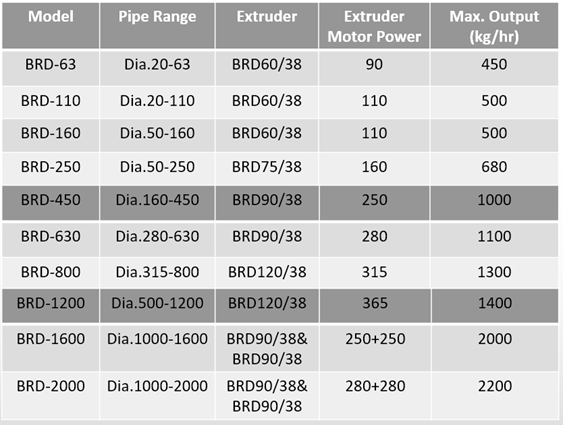

Model Specifications
Extrusion Line Model Comparison
| Model | Pipe Range (mm) | Motor Power (kW) | Max Output (kg/hr) |
|---|---|---|---|
| BRD-63 | 20-63 | 90 | 450 |
| BRD-110 | 20-110 | 110 | 500 |
| BRD-160 | 50-160 | 110 | 500 |
| BRD-250 | 50-250 | 160 | 680 |
| BRD-450 | 160-450 | 250 | 1,000 |
Operational Efficiency
Operational Benefits
- Lower electrical consumption
- Reduced water consumption
- Energy-saving heater technology
- High stability running system
