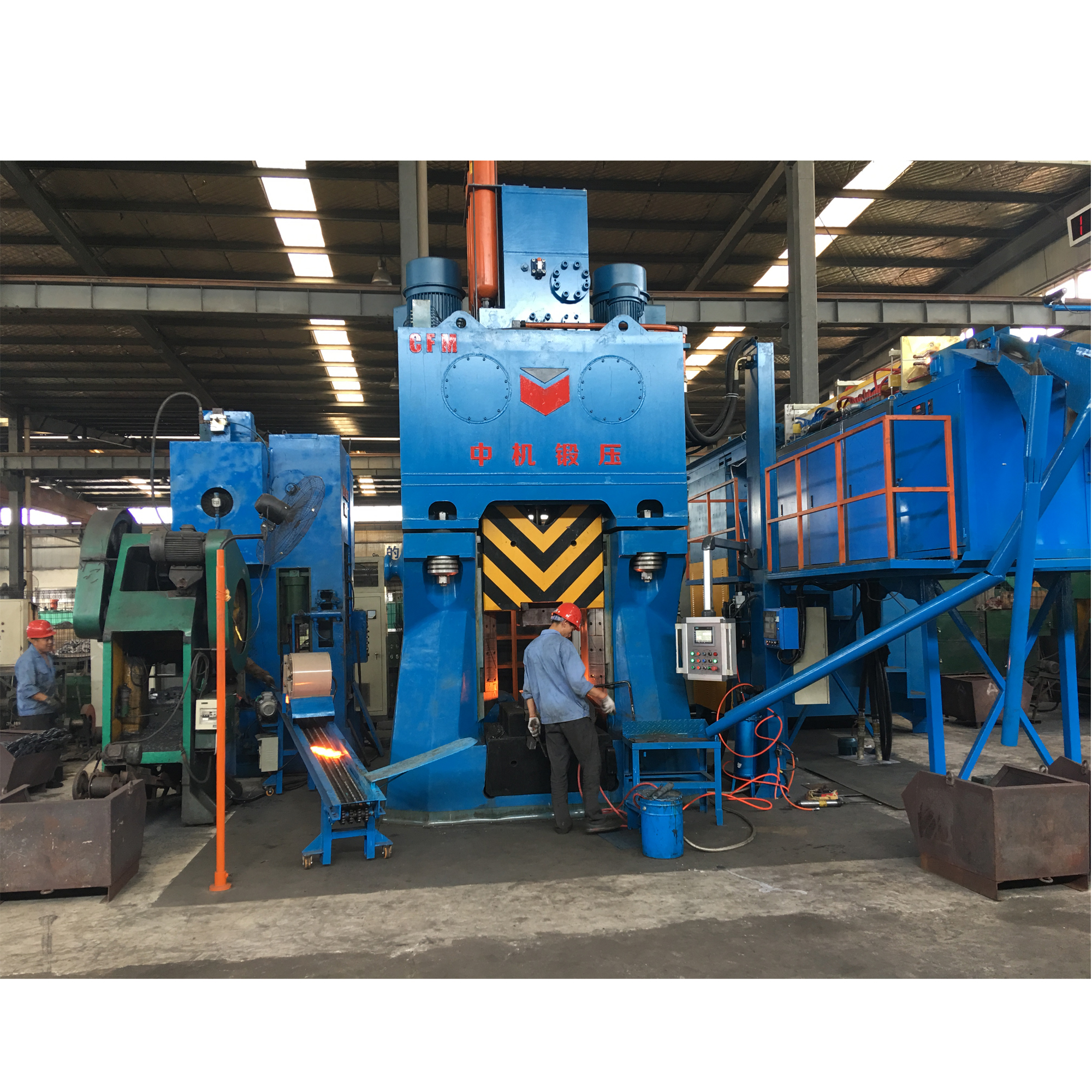

2-Ton Impression Die Forging Hammer for Hand Tools
This 2-ton impression die forging hammer is designed for the precise forging of hand tools and other components. It utilizes a powerful hammering action to shape metal within dies, creating accurate and repeatable parts.
Technical Specifications
Overview
High-Efficiency Impression Die Forging
This 2-ton impression die forging hammer is engineered for the precise manufacturing of hand tools and complex metal components. Featuring advanced program control and a robust one-piece casting steel U-frame, it delivers high accuracy and repeatable results. Designed for industrial environments, the system prioritizes energy efficiency, low maintenance, and operator safety through integrated hydraulic controls.
Key Advantages
- Key Advantages
- High EfficiencyEnergy-SavingHigh AccuracyLow NoiseReliable QualityLow Running CostWide ApplicationEasy Maintenance
Technical Features
Control & Operation
- Program control with numerical input
- Touch screen man-machine interface
- Automatic malfunction diagnosis and alarm
- Digitized striking energy control
- Remote monitoring system (optional)
Hydraulic Specifications
- Integrated hydraulic control system
- Accumulator fixed directly on main valve block
- Advanced taper valve control for fast response
- Full hydraulic driving system (prevents oil/air mixing)
- High and low pressure double anti-leakage design
Mechanical Design
- One-piece casting steel U-frame
- Radial wide guide rails for high ram accuracy
- Swaying combine oil cylinder
- Thin piston rod flexible design
- Three inserted locating faces to prevent bolt stress
Optional Equipment
Available Upgrades
- Die automatic lubrication system
- Blank convey system
- Ejector system
- Scale removing system
- Remote monitoring system
Capacity
Rated Capacity
2 Ton
Hammer Capacity
