2-String PV Combiner Box: 1000V, 25A, with 10A Breakers | Merhein

2-String PV Combiner Box with 10A Circuit Breakers

Technical Specifications

Product Overview

High-Performance Solar Combiner Box

This 2-string solar combiner box is designed to optimize the efficiency and safety of your photovoltaic system. Featuring a 1000V DC capacity and integrated overcurrent and surge protection, it reliably manages solar string inputs while protecting against lightning and power surges. Its rugged, IP65-rated enclosure ensures long-lasting performance even in harsh outdoor environmental conditions.

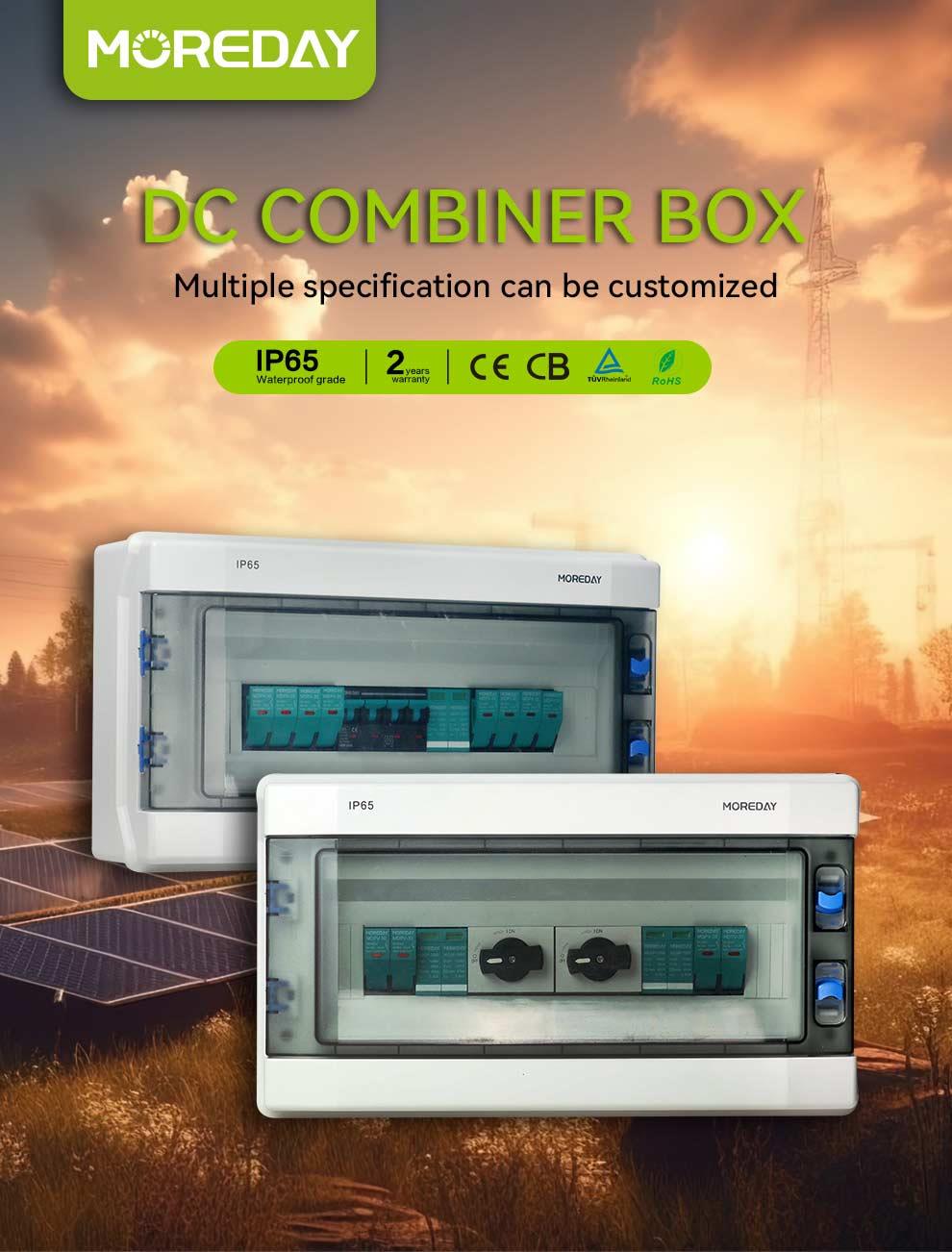

Front view of the solar combiner box with technical features listed — High-efficiency DC combiner box ready for 2-string solar integration.

Technical Specifications

Degree of Protection

IP65IK10

Input Configuration: 2 Strings
Maximum Voltage: 1000 V
Maximum Output Current: 32 A
Max DC Short Circuit Current Per Input: 16 A
Material: Polycarbonate/ABS
Dimensions (W*H*D): 292 x 195 x 132 mm

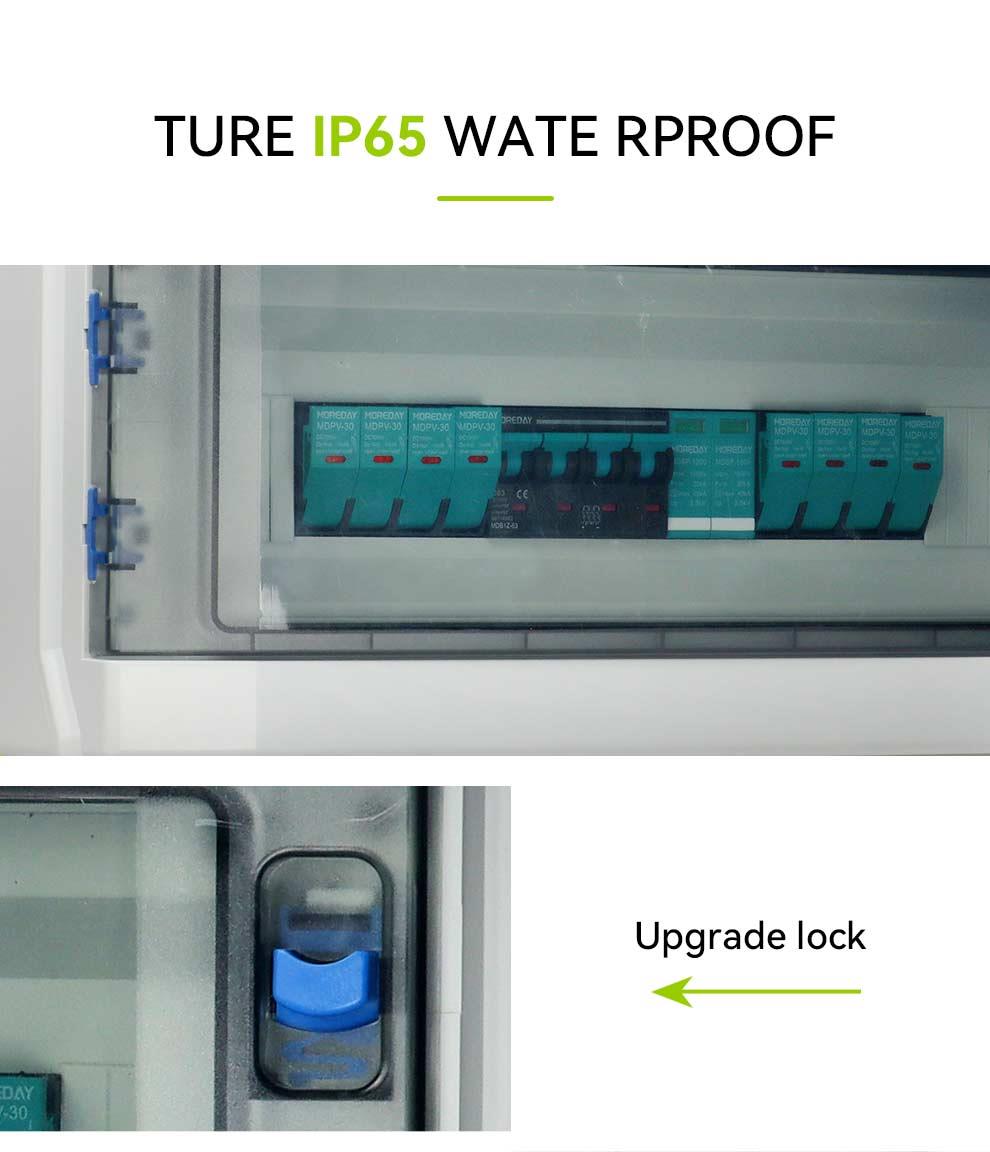

IP65 rated solar combiner box showing internal layout — Weatherproof IP65 enclosure designed for reliable outdoor PV string management.

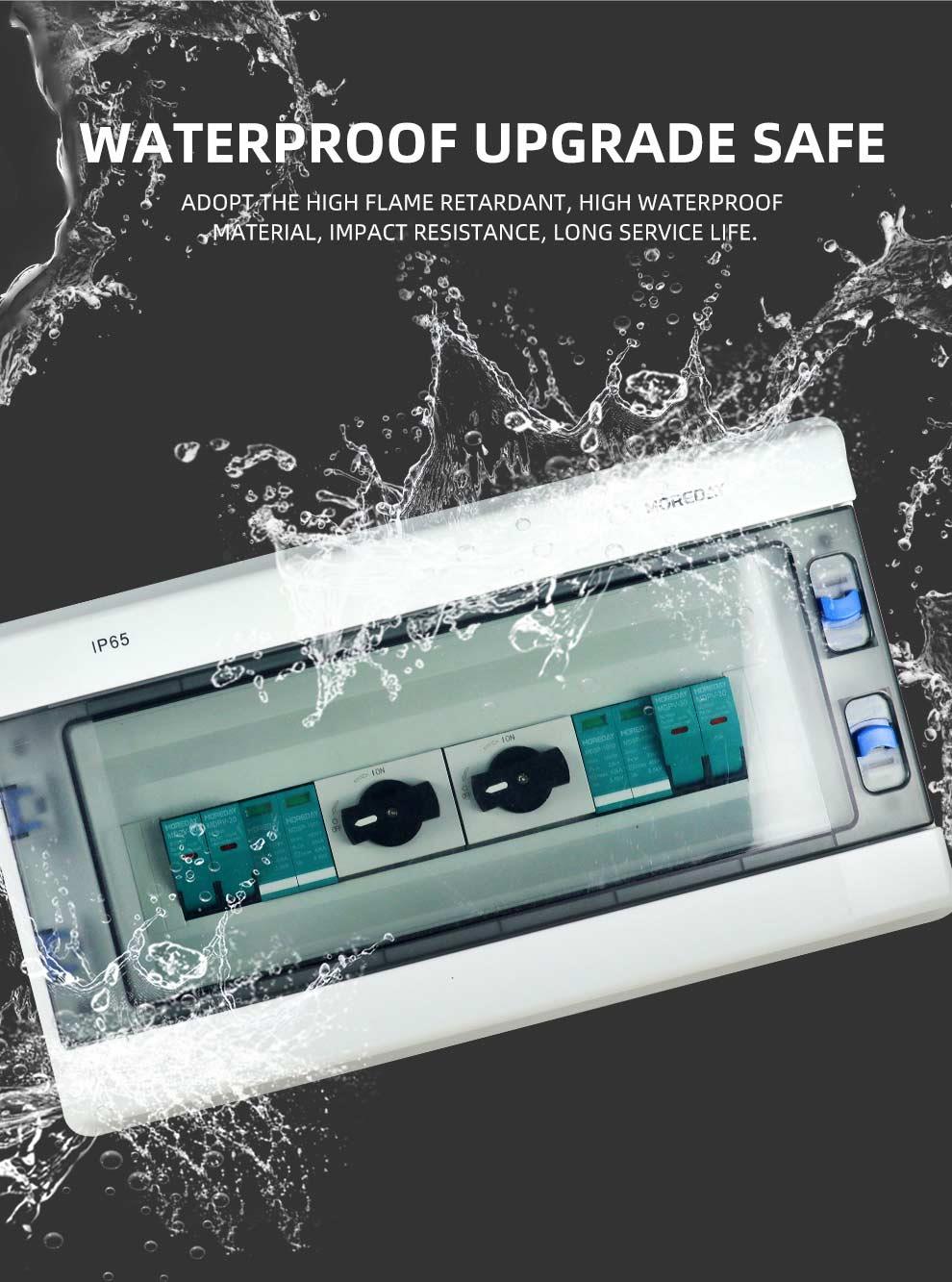

Detail of the combiner box impact-resistant casing — Constructed with high-flame retardant, impact-resistant materials for extended service life.

Compliance

Certifications: CECBTUVRoHS

Components

Key Components

DC Switch Disconnector
DC Surge Arrester (40KA)
10x38mm DC Fuse Holder

Interested in Sourcing This Product?

Submit a request to connect with verified manufacturers who produce this product.

Your Name

Email Address

Company Name

Phone Number

Country

Target Quantity (MOQ)

Requirements

By submitting this form, you agree to our privacy policy and terms of service.

Your information is protected. Privacy policy · Terms of service

2-String PV Combiner Box with 10A Circuit Breakers

This 2-string PV combiner box efficiently combines and manages the output of two strings of solar panels. Its 1000V capacity and 25A rating guarantee compatibility and safety for photovoltaic systems.

Request a Quote Download PDFPDF

2-String PV Combiner Box with 10A Circuit Breakers - Image 1

2-String PV Combiner Box with 10A Circuit Breakers - Image 1

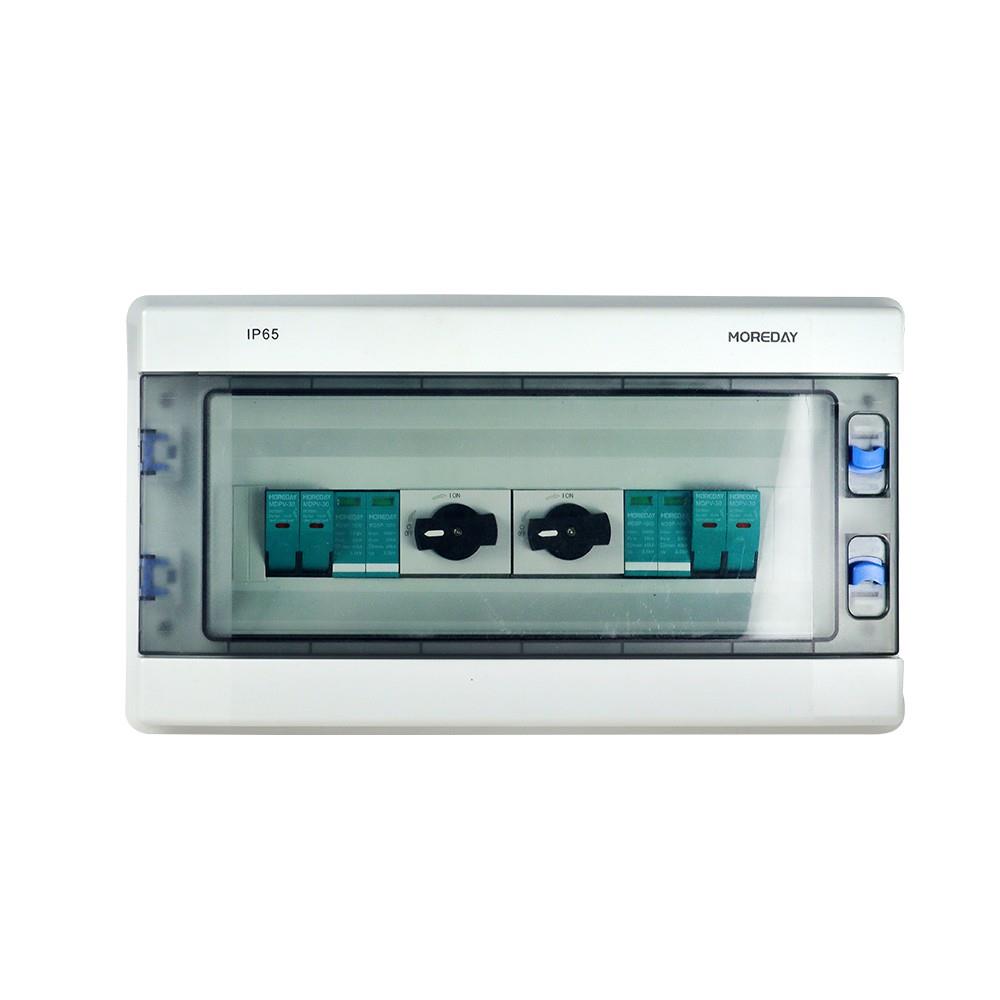

2-String PV Combiner Box with 10A Circuit Breakers - Image 2

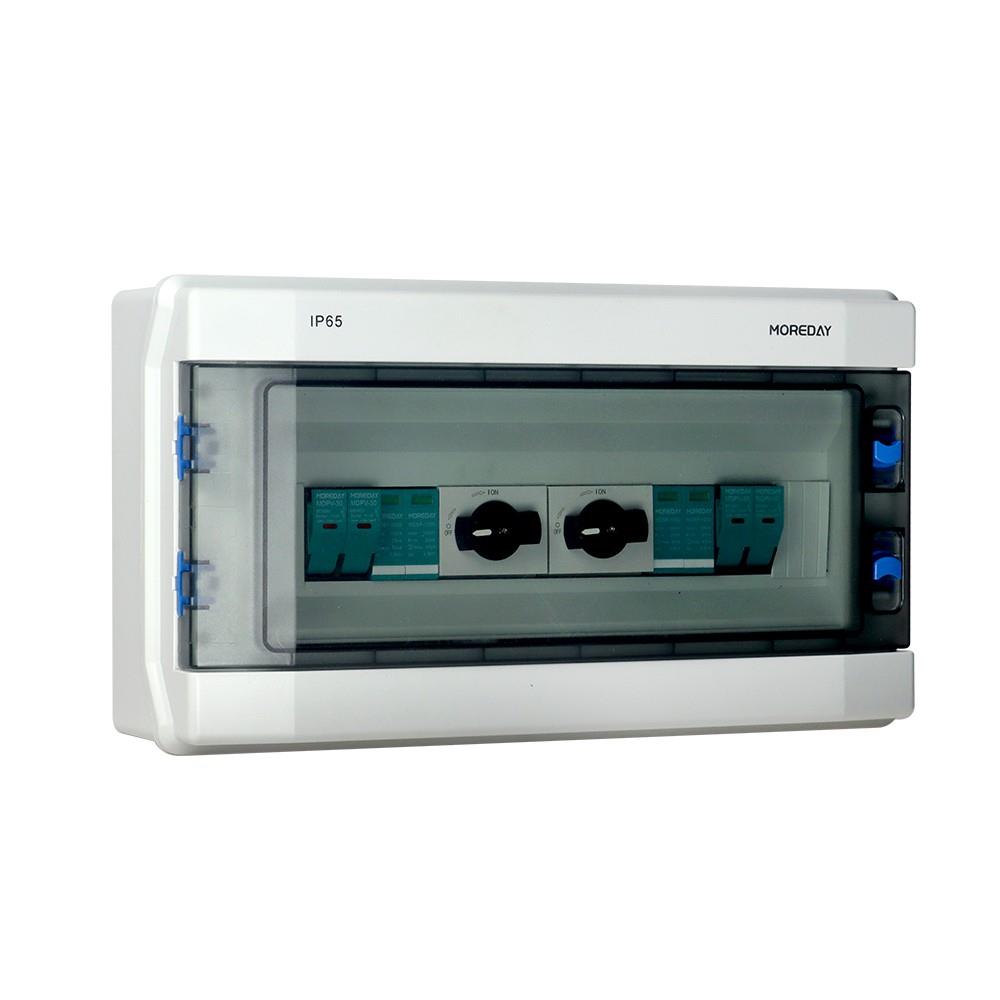

2-String PV Combiner Box with 10A Circuit Breakers - Image 3
