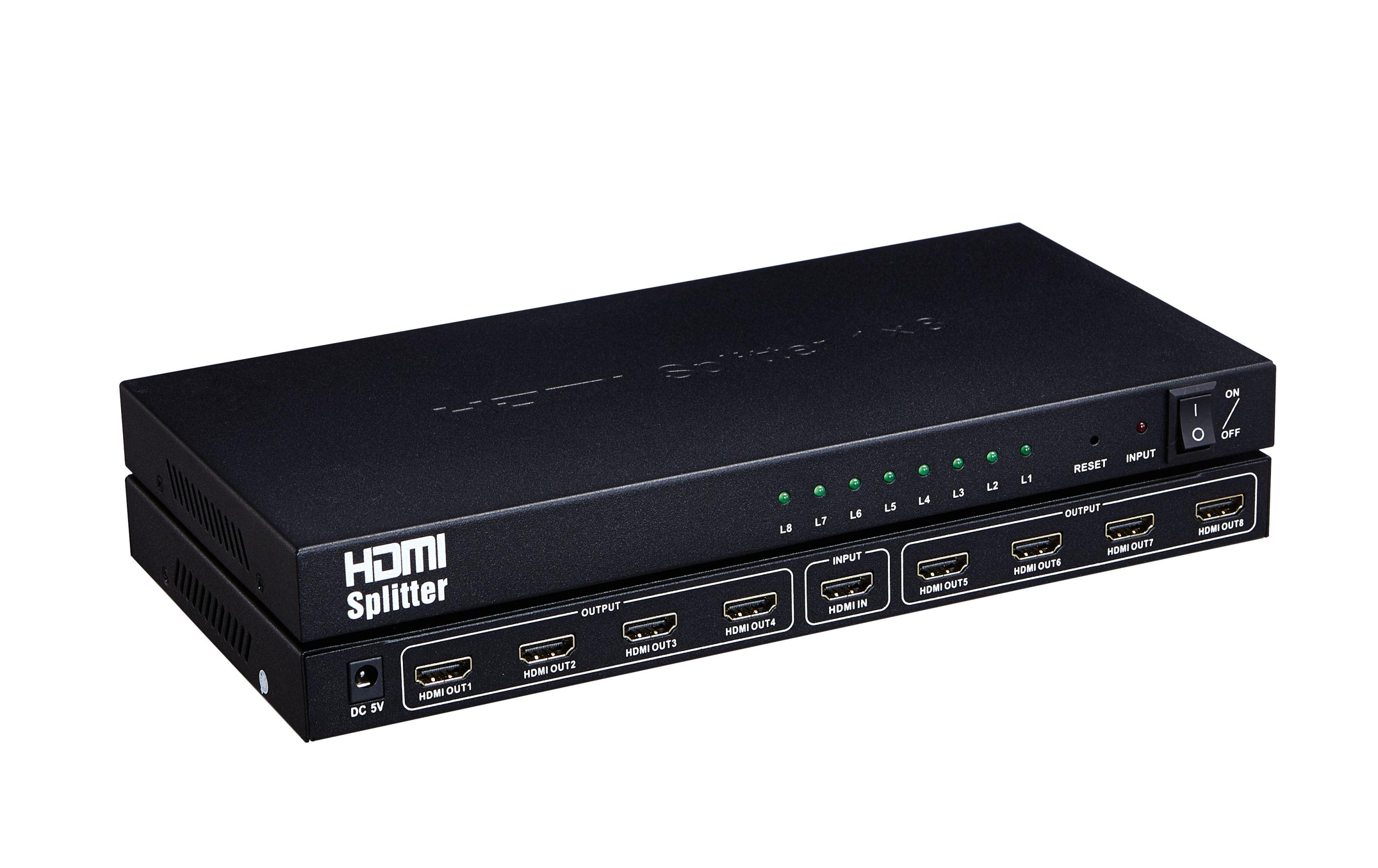

1x8 HDMI Splitter
This 1x8 HDMI splitter allows a single HDMI source to access multiple HDMI displays. It can split one HDMI device to eight HDMI-compatible monitors or projectors.
Technical Specifications
Overview
Professional Signal Distribution
This 1x8 HDMI Splitter allows you to distribute a single HDMI source to eight compatible displays or projectors simultaneously. It is designed to regenerate HDMI signals, making it an excellent choice for extending connections over longer cable runs. With support for high-definition resolutions up to 1920x1080/60Hz, it ensures reliable performance for home theaters, conference rooms, and digital signage applications.
Technical Specifications
Supported Formats
3DBlue-Ray 24/50/60fsHD-DVDxvYCC
- HDMI Version
- 1.4a
- Max Resolution
- 1920x1080/60Hz
- Deep Color Support
- 8-bit10-bit12-bit
Performance Metrics
Performance Metrics
2.25 G
Max Baud Rate
225 Mhz
Max Bandwidth
Connectivity & Power
Cable Range (AWG26)
| Connection Type | Max Length |
|---|---|
| Input | 15 meters |
| Output | 25 meters |
Compatible Sources
- DVD Players
- A/V Receivers
- Set-top Boxes
- Power Adapter
- 5V / 3A
