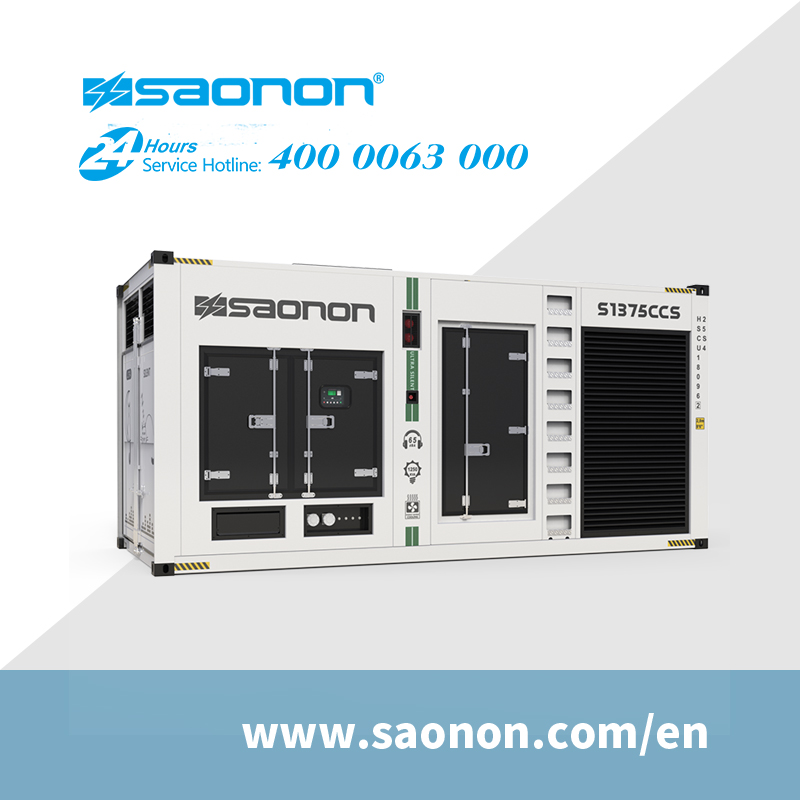

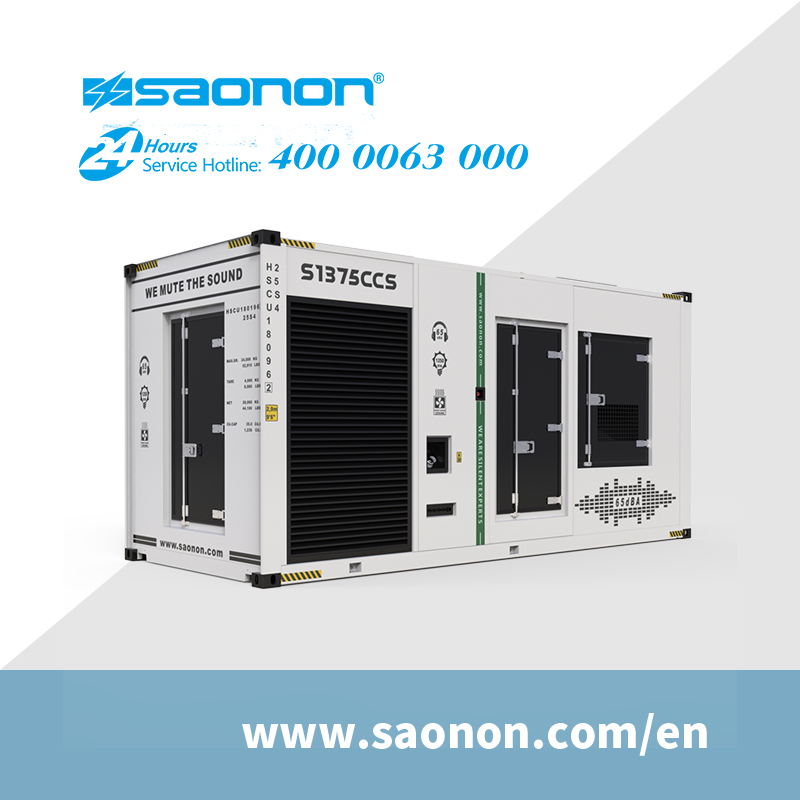

1MW Ultra-Silent Power Station
This 1MW ultra-silent power station is designed for reliable and quiet power generation in demanding project environments. It features a robust enclosure for noise reduction and protection from the elements.
Technical Specifications
Product Overview
High-Efficiency Silent Power Generation
This 1MW project power station is engineered as a smart energy solution for noise-sensitive environments like construction sites, data centers, and urban events. Utilizing professional simulation software for CAE/NVH/CFD analysis, the unit achieves ultra-silent performance with noise levels controlled below 65dBA. The robust containerized design features intelligent temperature control and advanced sound insulation, ensuring reliable, long-term operation while reducing energy consumption.
Performance Metrics
Core Capacity
1,375 kVA
ESP Power
1,250 kVA
PRP Power
65 dBA
Noise Level
Technical Specifications
General Specifications
| Parameter | Value |
|---|---|
| Model | S1375CCS |
| Rated Voltage | 400 V |
| Frequency | 50 Hz |
| Engine | CUMMINS/KTA50-G3 |
| Alternator | STAMFORD/LVI634G |
| Speed | 1500 R/MIN |
| Weight | 16500 kg |
| Dimensions | 6058x2438x2896 mm |
Design Features
Engineering Highlights
- Special box structure with high-efficiency sound insulation
- Built-in cabinet-type muffler providing >35dBa noise reduction
- Intelligent temperature control radiator saving >14kW mechanical power
- External engine intake system for easier maintenance
- Optimized fluid ventilation and low-vibration design
- Compliance & Quality
- Noise ControlWeather ResistantCAE/NVH/CFD Optimized
