1kW-6kW Pure Sine Wave Inverter with AC Charger

This pure sine wave inverter combines an inverter, battery charger, and AC auto-transfer switch into one complete system. It features sophisticated multi-stage charging and pure sine wave output with high surge capability to meet demanding power needs.

Request a QuotePDF

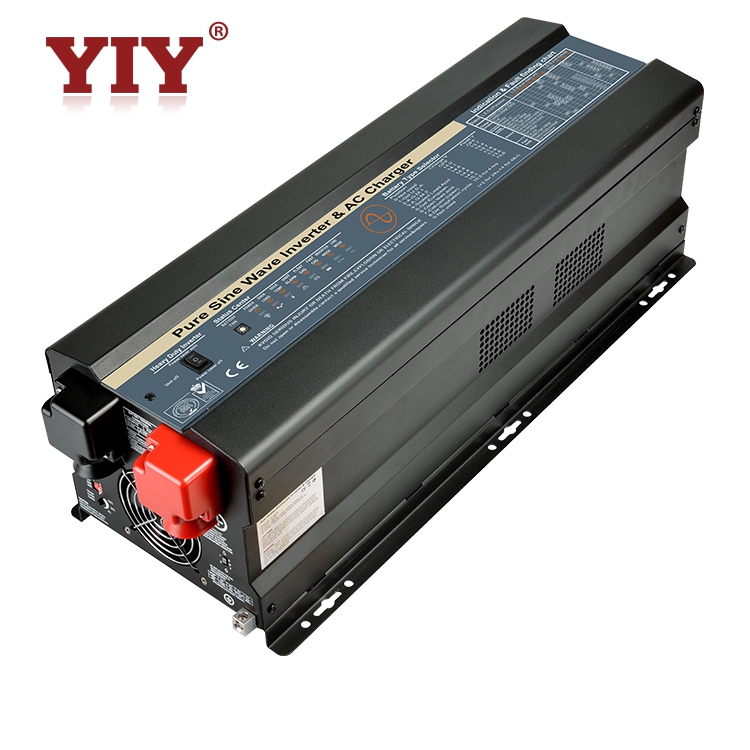

Low idle consumption pure sine wave inverter APP series inverter 1kw-6kw with AC charger - Image 1

Technical Specifications

Overview

Advanced Inverter & Charger System

This high-performance unit combines a pure sine wave inverter, a sophisticated multi-stage battery charger, and an AC auto-transfer switch into one unified system. Engineered for professional and off-grid applications, it delivers a peak conversion efficiency of 92% and features high surge capability to safely power demanding inductive loads. With intelligent power factor correction and low idle consumption, it provides a reliable, energy-efficient solution for renewable energy setups, marine, RV, and backup power environments.

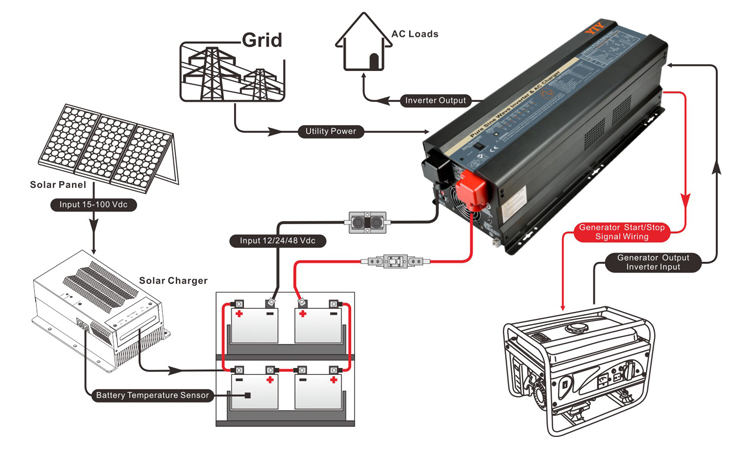

Diagram showing system integration including solar panels, battery, and generator connections.
System integration diagram demonstrating versatility with solar, utility, and generator inputs.
Various application scenarios for the inverter including home, marine, and office use.
Suitable for a wide range of applications including household appliances, marine, RV, and office equipment.

Performance

Key Performance Metrics

6 kW
Max Continuous Power
18 kW
Max Surge Rating
92 %
Peak Efficiency
10 ms
Transfer Time
Power Factor
1

Technical Specifications

Supported DC Input Voltages
12V DC24V DC48V DC
Output Voltage Range
100-120VAC / 220-240VAC
Output Frequency
50Hz / 60Hz (Auto-detect)
Idle Consumption
< 25W (Power Saver On)

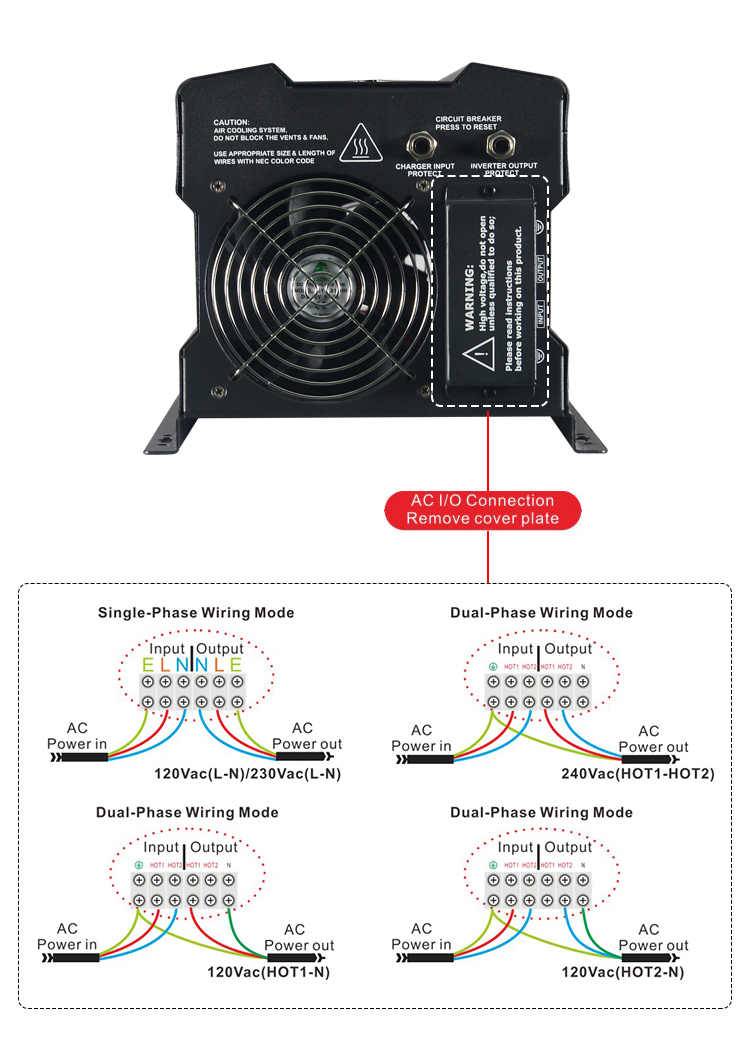

Wiring diagram showing single-phase and dual-phase connection options.
Flexible wiring options supporting single-phase and dual-phase configurations.

Charging & Battery

Charging Capabilities

  • 4-step intelligent battery charging
  • Power Factor Correction (PFC) for charger
  • Up to 110A selectable charge rate
  • 8 preset battery type selector
  • De-sulphation mode for flat batteries

Compatible Battery Types

Gel USAAGM 1AGM 2Sealed Lead AcidGel EuroOpen Lead AcidCalcium

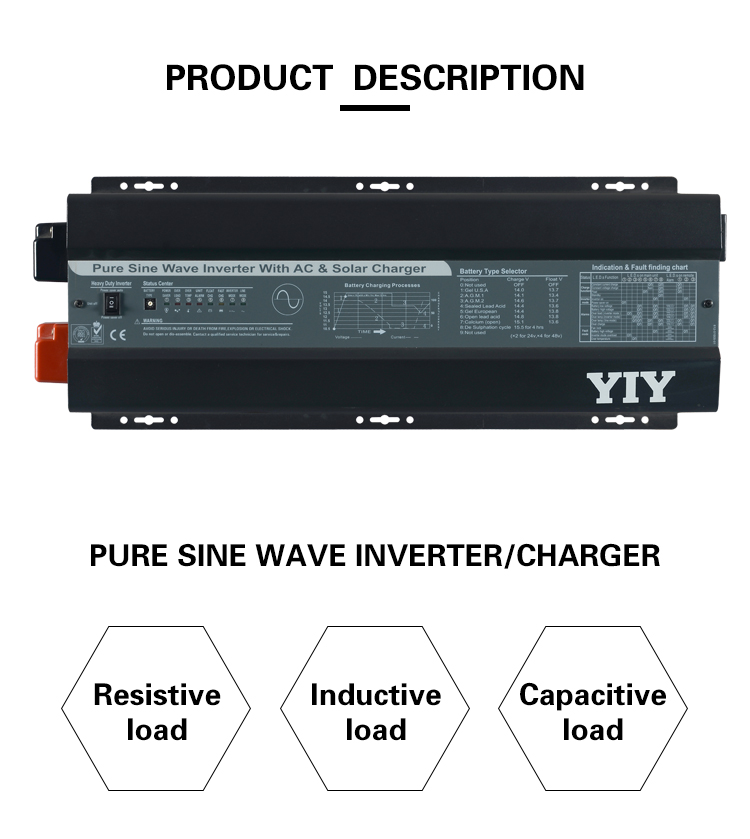

Battery charging process graph and battery type selector chart.
Detailed battery charging process and selector guide for optimized battery health.

Features & Protection

Protections

  • Overload protection (up to 300% for 20s)
  • Short circuit protection
  • Over-temperature protection
  • High/Low battery voltage protection
  • 15s delay transfer for generator protection
Advanced Functionality
Pure Sine Wave OutputRemote Control CompatibleGenerator Start/Stop SignalPower Saving ModeBattery Temperature Sensor

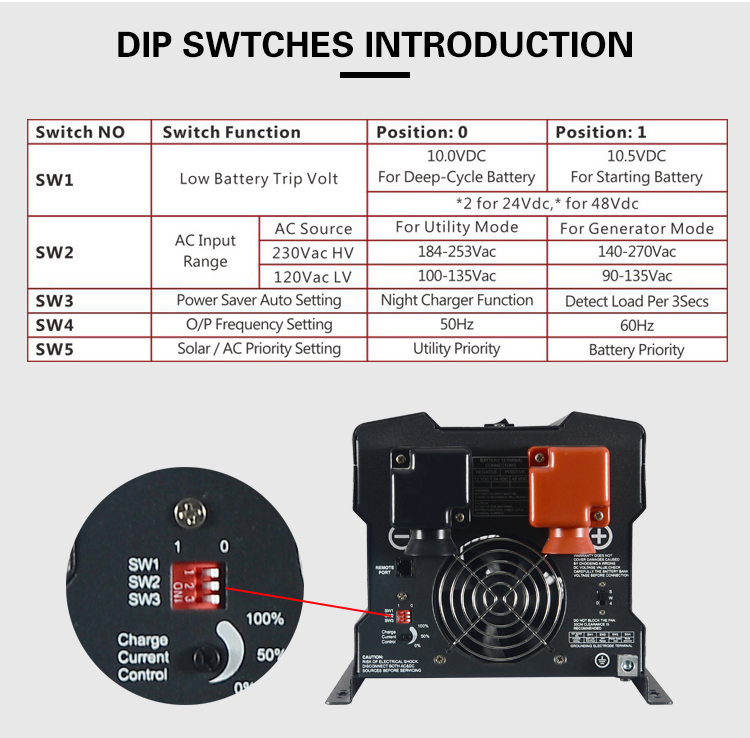

DIP switch configuration guide for inverter settings.
Easy-to-use DIP switch settings for customizing low battery trip, AC input range, and power frequency.
