1kW-6kW Pure Sine Wave Inverter Charger

This pure sine wave inverter charger provides up to 300% overload capability for 20 seconds. It also features a power-saving mode and a 4-step intelligent battery charging system.

Request a Quote Download PDFPDF

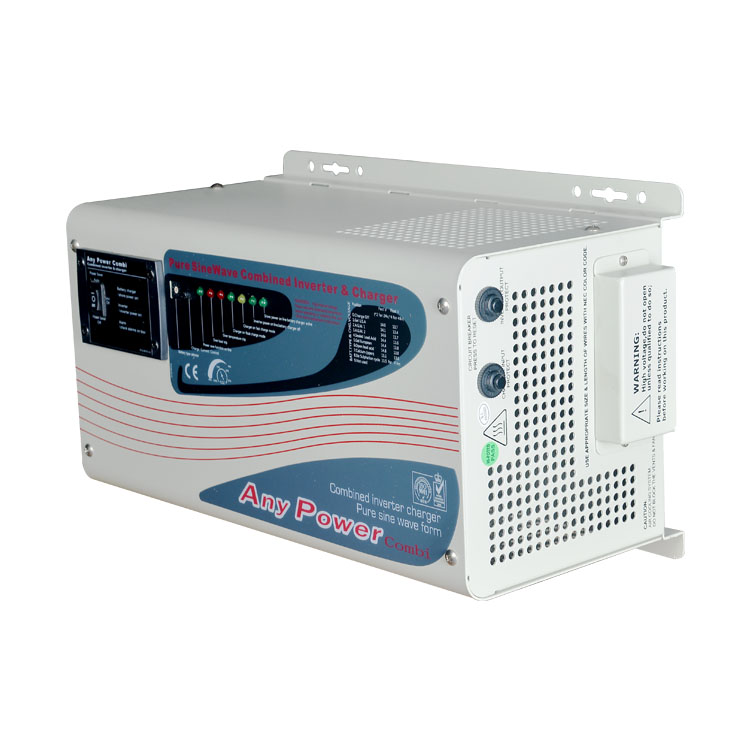

Low idle consumption pure sine wave inverter AP series inverter 1kw-6kw with AC charger - Image 1

Technical Specifications

Overview

Professional Power Conversion

This high-performance pure sine wave inverter charger offers a versatile power solution for off-grid, mobile, and backup applications. Designed with low idle consumption and intelligent 4-step battery charging, it ensures efficient energy management and reliable power continuity. With robust overload capability and support for multiple battery types, it is engineered to handle demanding loads while protecting sensitive electronic equipment.

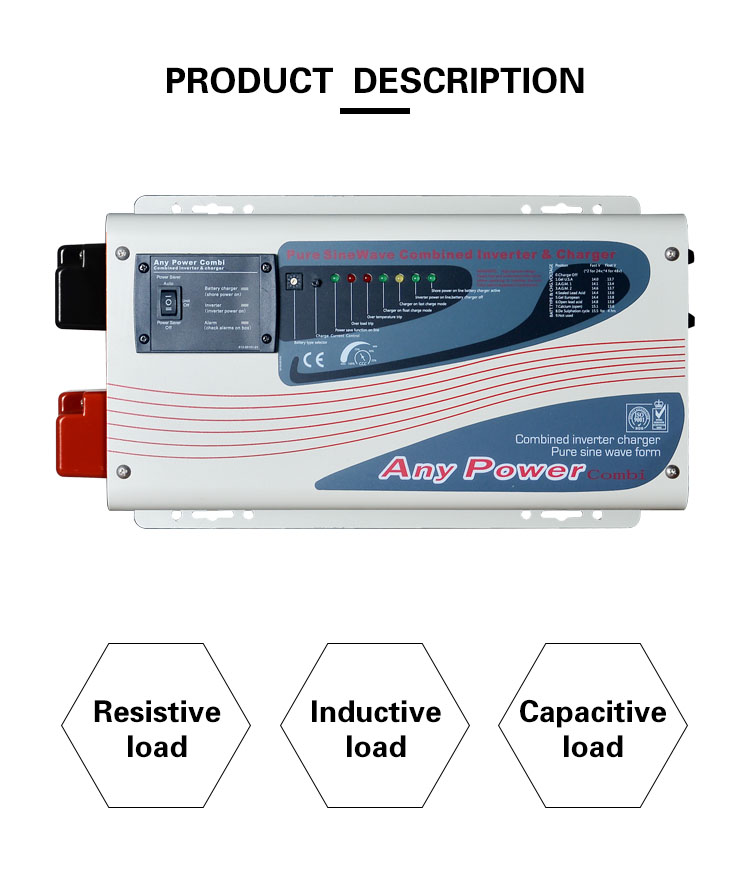

Front panel of the inverter charger showing status indicators and CE certification — The unit features clear status indicators for battery charge and inverter operation, suitable for various load types.

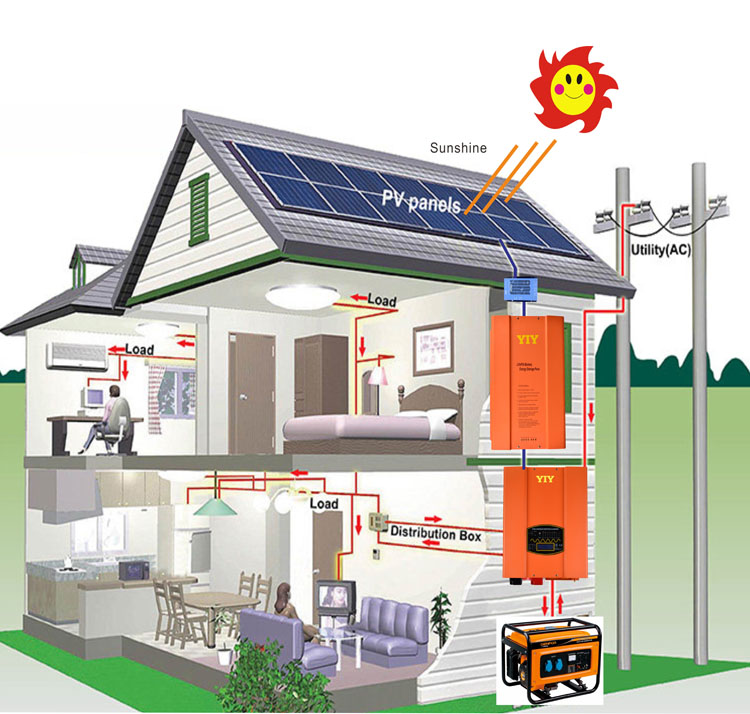

Diagram of a home power system using the inverter — Typical home power system setup integrating solar energy, utility grid, and backup generator.

Performance

Rated Power Output

1 kW

Minimum Power

6 kW

Maximum Power

Surge Rating (20s): 300 %
Typical Transfer Time: 10 ms
Nominal Efficiency: 88 %

Technical Specifications

Output Waveform: Pure Sine Wave
DC Input Voltage: 12Vdc24Vdc48Vdc
AC Output Voltage: 100-120Vac220-240Vac
Output Frequency: 50 Hz

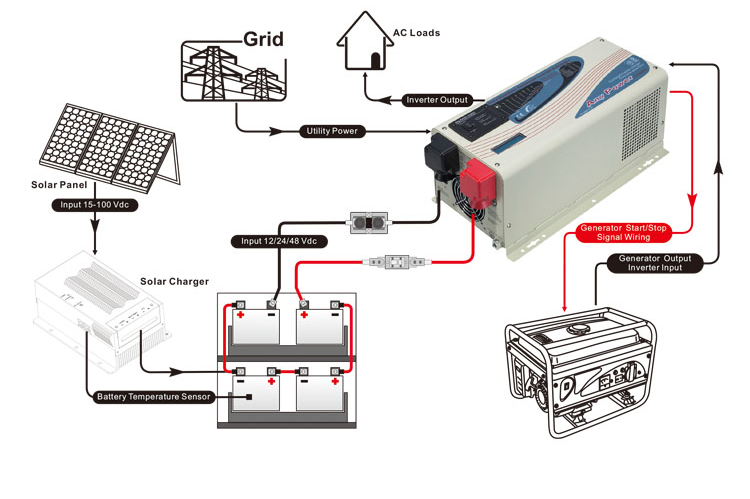

Diagram of the inverter system showing solar, battery, and utility grid integration — System diagram illustrating integration with solar panels, utility grid, generators, and AC loads.

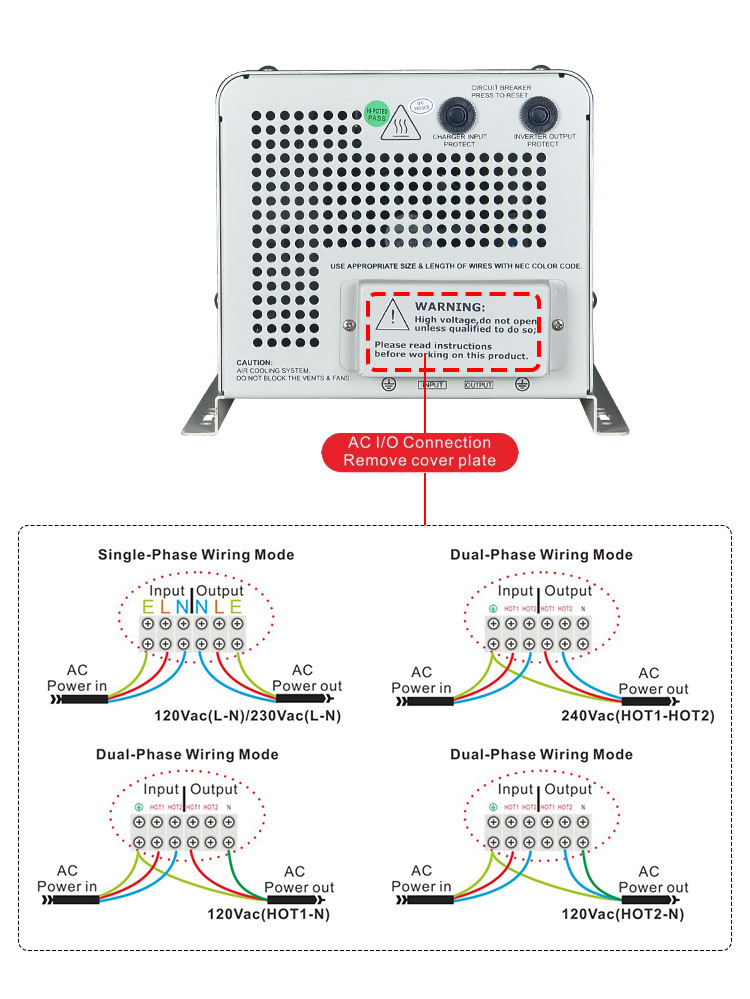

Rear panel wiring and connectivity diagram — Rear panel view showing input/output terminals and circuit breakers, with wiring guidance for phase configurations.

Battery Management

Compatible Battery Types

Gel U.S.A
AGM 1
AGM 2
Sealed Lead Acid
Gel Euro
Open Lead Acid
Calcium

Charging Stages: 4
Max Charge Rate: 110 A

Features

Key Features

Power Saving ModeRemote Control CompatibleGenerator FriendlyMultiple Cooling FansDe-sulphation Mode

Protection Systems: OverloadShort CircuitHigh VoltageLow BatteryOver-temperature

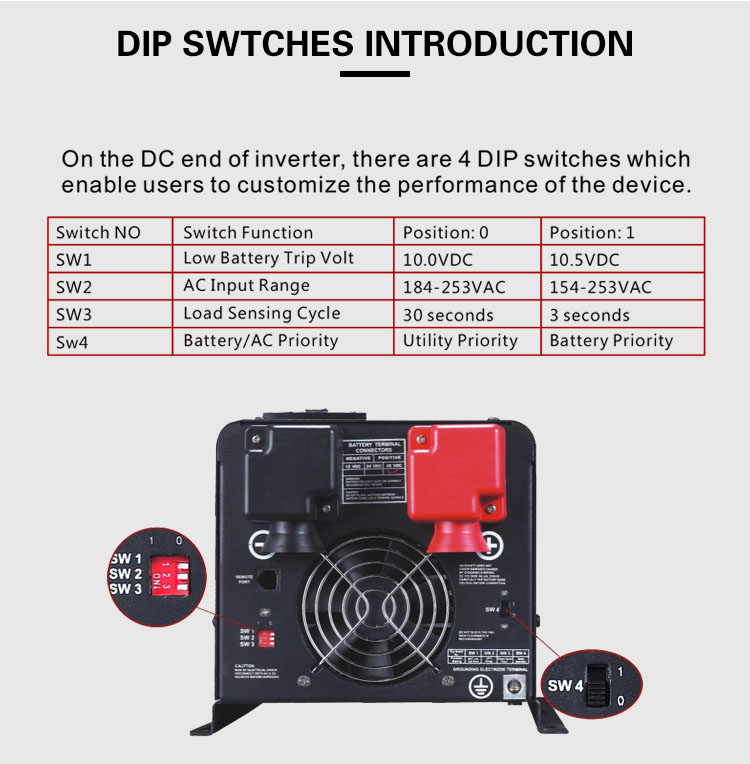

DIP switch configuration guide for the inverter — Customizable performance settings via DIP switches, allowing adjustment of low battery trip voltage and AC input range.
