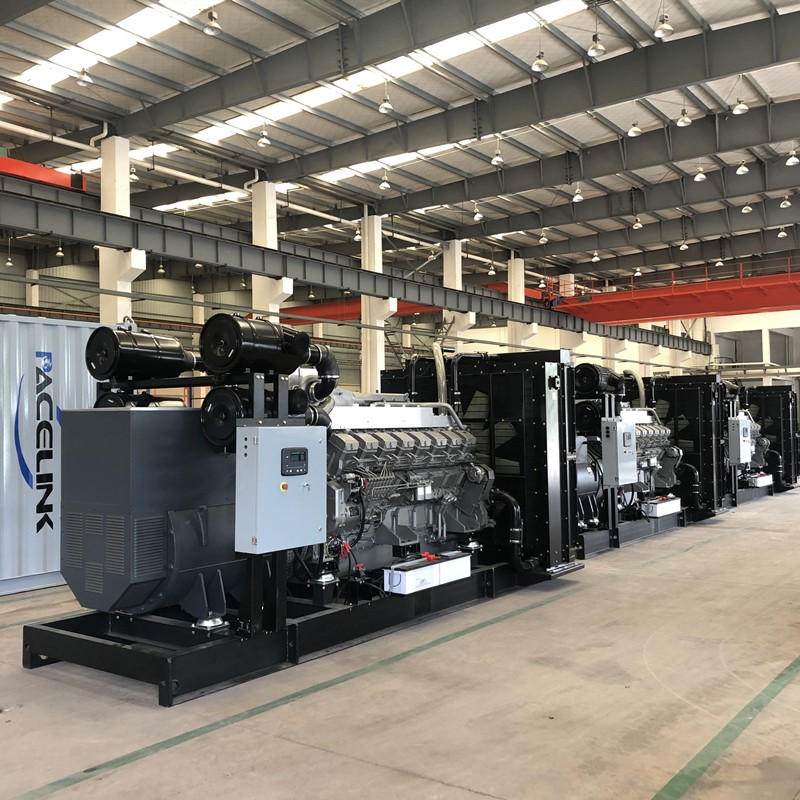

1800kVA Open Type Diesel Generator
This open type 1800kVA diesel generator is designed for continuous or standby operation. It features a diesel engine coupled with a heavy-duty alternator, providing stable and efficient power output.
Technical Specifications
Overview
High-Performance 1800kVA Power Solution
This 1800kVA open-type diesel generator is engineered for reliable prime or standby power applications in industrial and commercial environments. Powered by a high-performance engine, it features a robust design with vibration isolation, advanced cooling systems, and comprehensive protection functions. Built for ease of maintenance and shipping, it includes external access points for fuel, oil, and coolant, along with CSC plate certification for direct vessel transport.
Engine Specifications
Standby Power
1,895 kW
Standby Power
- Engine Model
- S16R-PTAA2-C
- Configuration
- 16 Cylinders, V-Type, 4-Cycle
- Displacement
- 65.37 L
Alternator Specifications
Electrical Characteristics
| Parameter | Value |
|---|---|
| Rated Voltage | 400 V |
| Frequency | 50 Hz |
| Power Factor | 0.8 |
| Phase | 3 |
| Protection Grade | IP23 |
- Rated Prime Power
- 1600 kW
Features & Protection
Cooling System
- 40°C Radiator (Standard)
- 50°C Radiator (Optional)
- Belt-driven fan with safety guard
Maintenance Access
- External fuel inlet
- External coolant drain
- External oil drain
- Key Features
- Low Noise DesignCSC Plate CertifiedMaintenance-Free BatteryVibration IsolatorsResidential Silencer
