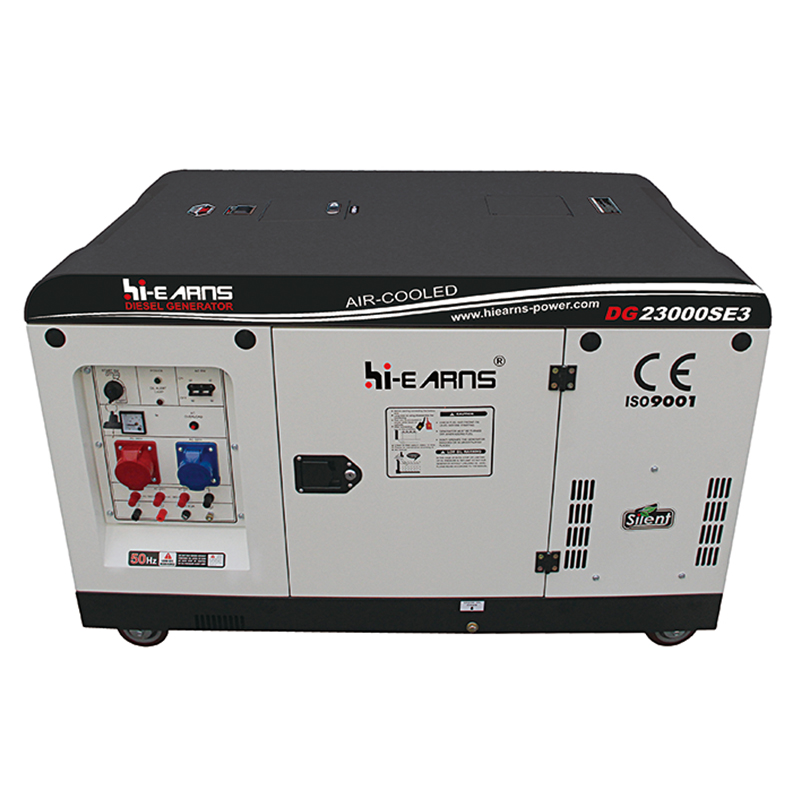

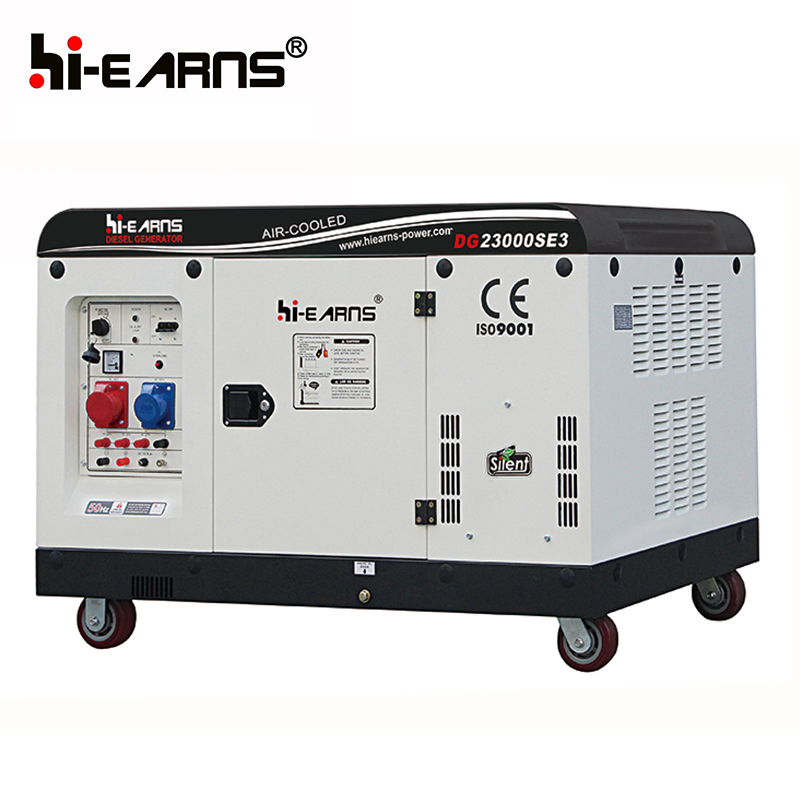

16KW Silent Diesel Generator with Air-Cooled Two-Cylinder Engine
This 16KW silent diesel generator provides a reliable power solution for various applications. It features a robust air-cooled diesel engine and silent operation, making it suitable for noise-sensitive environments.
Technical Specifications
Overview
High-Performance Silent Power
This 16KW silent diesel generator is engineered for reliable, consistent power delivery in both residential and commercial settings. Featuring a robust two-cylinder, air-cooled engine, it balances high output with efficient operation and reduced noise levels. Designed for versatility, it includes advanced safety features and a soundproof enclosure, making it an ideal solution for noise-sensitive environments requiring dependable backup power.
Performance Metrics
Core Performance
16 KW
Max Output
15 KW
Rated Output
50 Hz
Frequency
82 dBA
Max Noise Level
Engine Specifications
Engine Configuration
| Specification | Detail |
|---|---|
| Engine Model | HR2V98F |
| Type | Two-cylinder, 4-stroke, Air-cooled |
| Displacement | 1326 CC |
| Bore x Stroke | 98 x 88 mm |
| Combustion System | Direct Injection |
Technical Specifications
Electrical Output
- Rated AC Voltage: 220/380V
- Power Factor: 1
- DC Output: 12V/8.3A
- Phase: Three Phase
- Alternator Type: Self-excited, 2-pole
Fuel & Lubrication
- Fuel Tank Capacity: 30L
- Fuel Consumption Rate: ≤240 g/kw.h
- Lubrication Oil Volume: 4L
- Compatible Fuel: Light diesel oil (0#, -10#, -20#, -35#)
Features
Optional Upgrades
DC Circuit BreakerCalculagraphBig WheelsCurrent MeterATSRemote Control
- Standard Equipment
- VoltmeterAC Output SocketAC Circuit BreakerOil Warning LightOil Alert System45AH Battery
Dimensions & Logistics
Physical Specs
- Dimensions: 1360 x 820 x 940 mm
- Net Weight: 350 kg
- 20FT Container Capacity: 20 units
- 40HQ Container Capacity: 44 units
