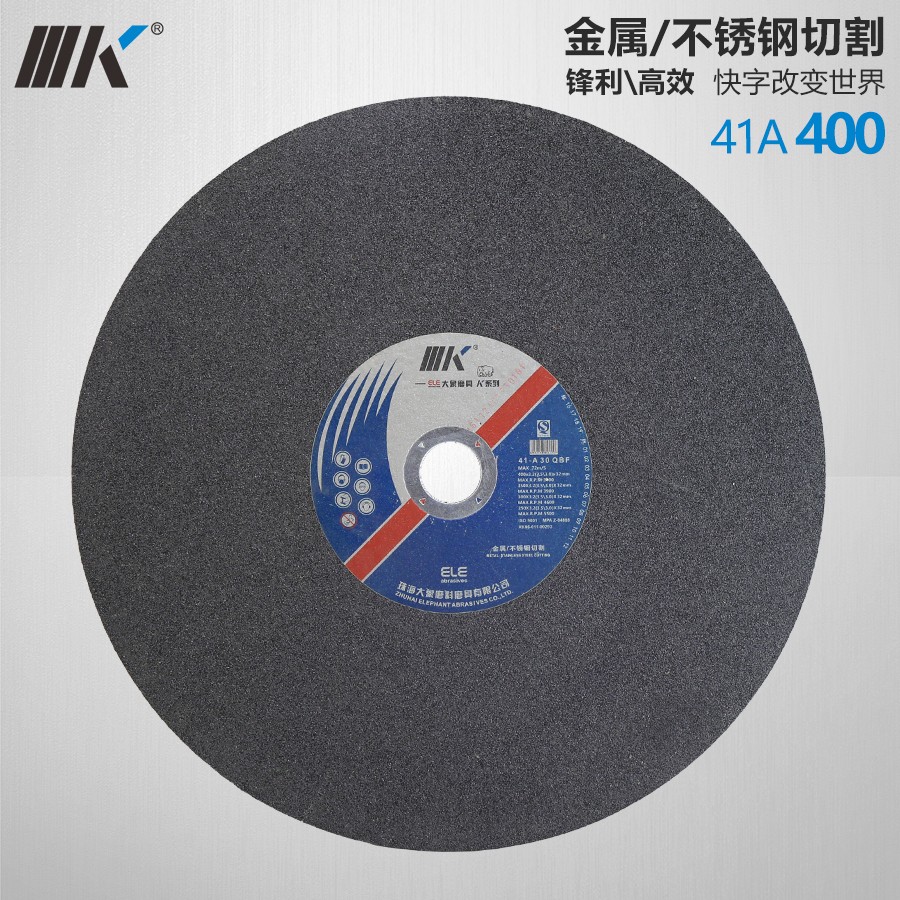

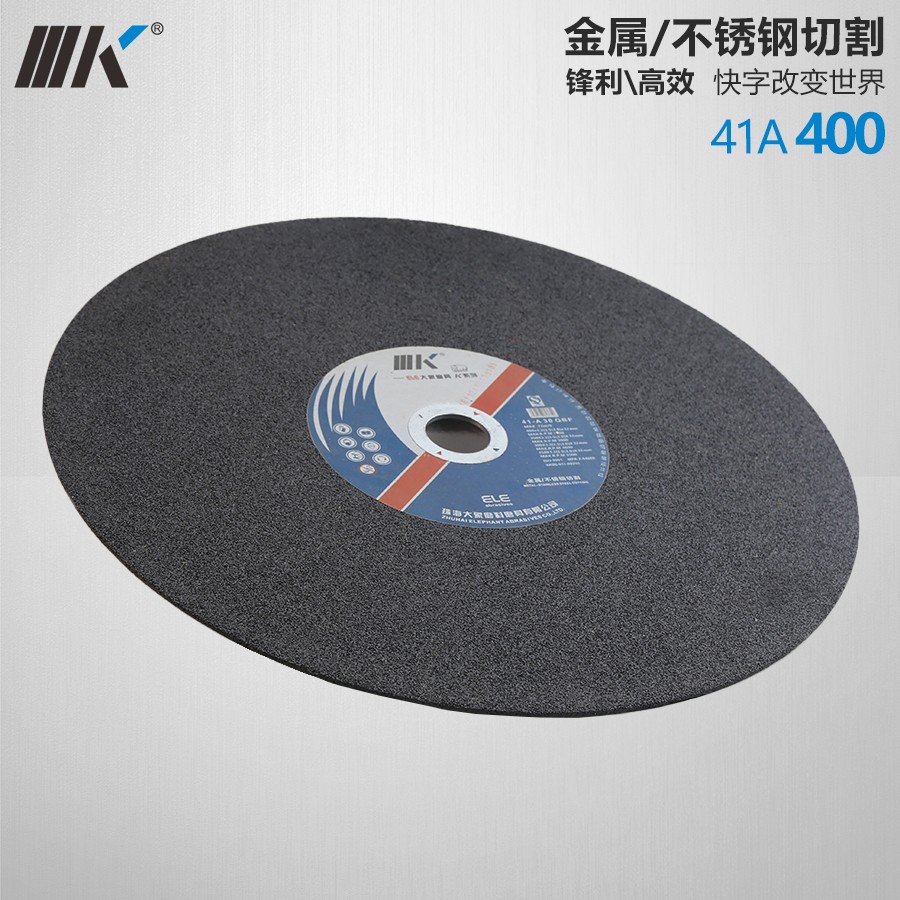

16 inch Metal Cutting Wheel

This 16 inch (400*3.2*25.4mm) metal cutting wheel is designed for cutting metal. It is a T41 large flat wheel that provides fast cutting speeds.

Request a Quote Download PDFPDF

Technical Specifications

Product Overview

High-Performance Cutting Solution

These 16-inch reinforced resin cut-off wheels are engineered for high-speed cutting applications on metal and stainless steel. Designed for both professional fabrication and industrial use, they provide a clean, burr-free finish with exceptional material removal rates. The durable abrasive composition ensures longevity, reducing the frequency of disc changes during demanding projects.

Designed for high-speed performance on metal and inox materials.

Technical Specifications

Dimensions

400 mm

Diameter

3.2 mm

Thickness

25.4 mm

Arbor Size

Performance Ratings

72 m/s

Max Speed

4,600 rpm

Max RPM

Wheel Type: T41 Flat Cutting Wheel
Certifications: ISO 9001MPA Z-04888

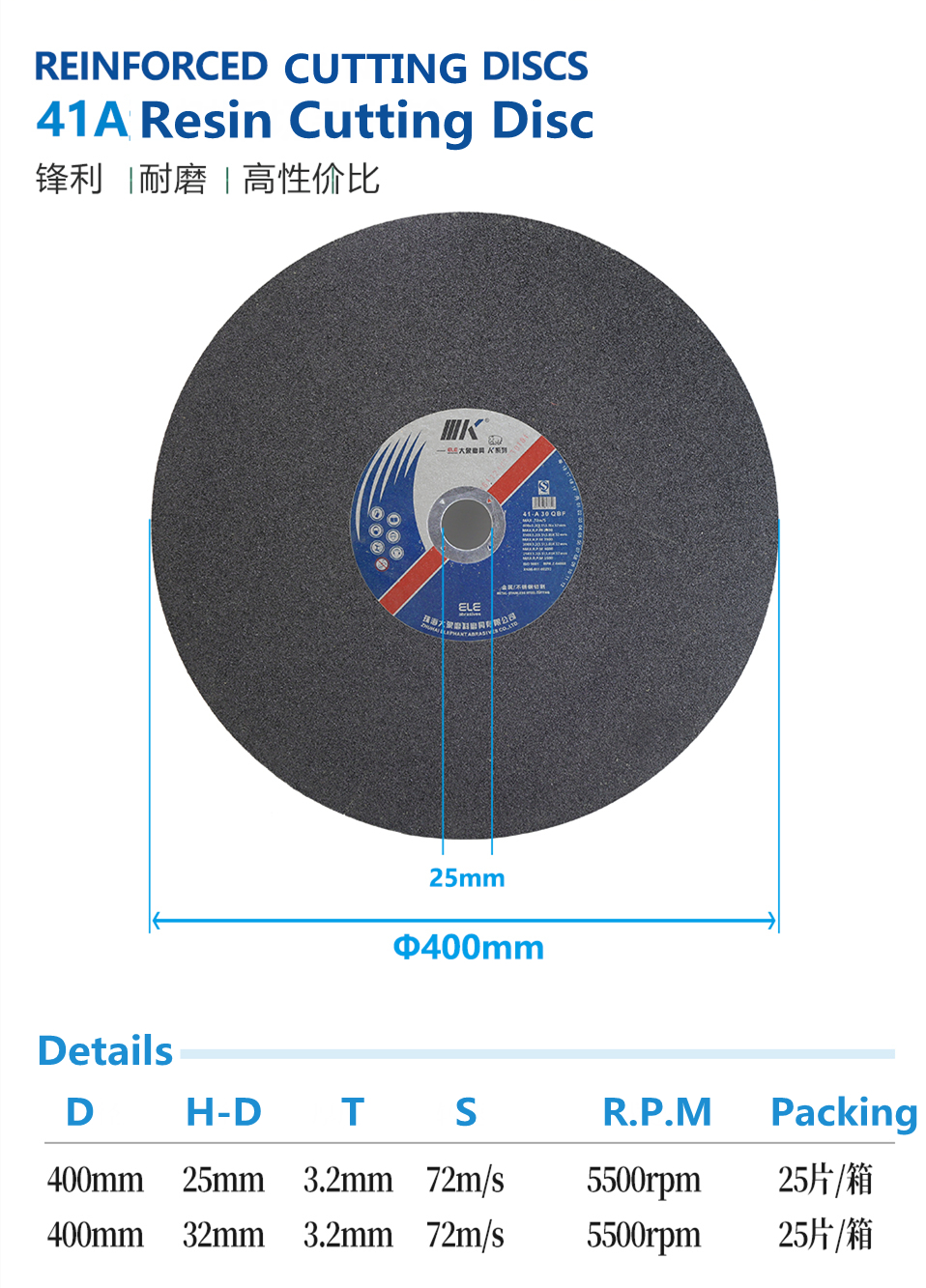

Technical breakdown of dimensions and speed ratings for the 400mm cutting discs.

Usage & Safety

Compatible Materials

Stainless Steel
Steel Plate
Steel Pipe
General Metal

Operation Safety

Strict adherence to safety protocols is required. Always wear protective eyewear, ear protection, a dust mask, and gloves during operation. Do not exceed the maximum RPM, avoid excessive force, and prevent impact during use.
