15m Kelly Bar Rotary Drilling Rig

This drilling rig is designed for foundation construction, water wells, and mine drilling. It features a 15-meter Kelly bar and a robust rotary head for effective drilling in diverse soil conditions.

Request a Quote Download PDFPDF

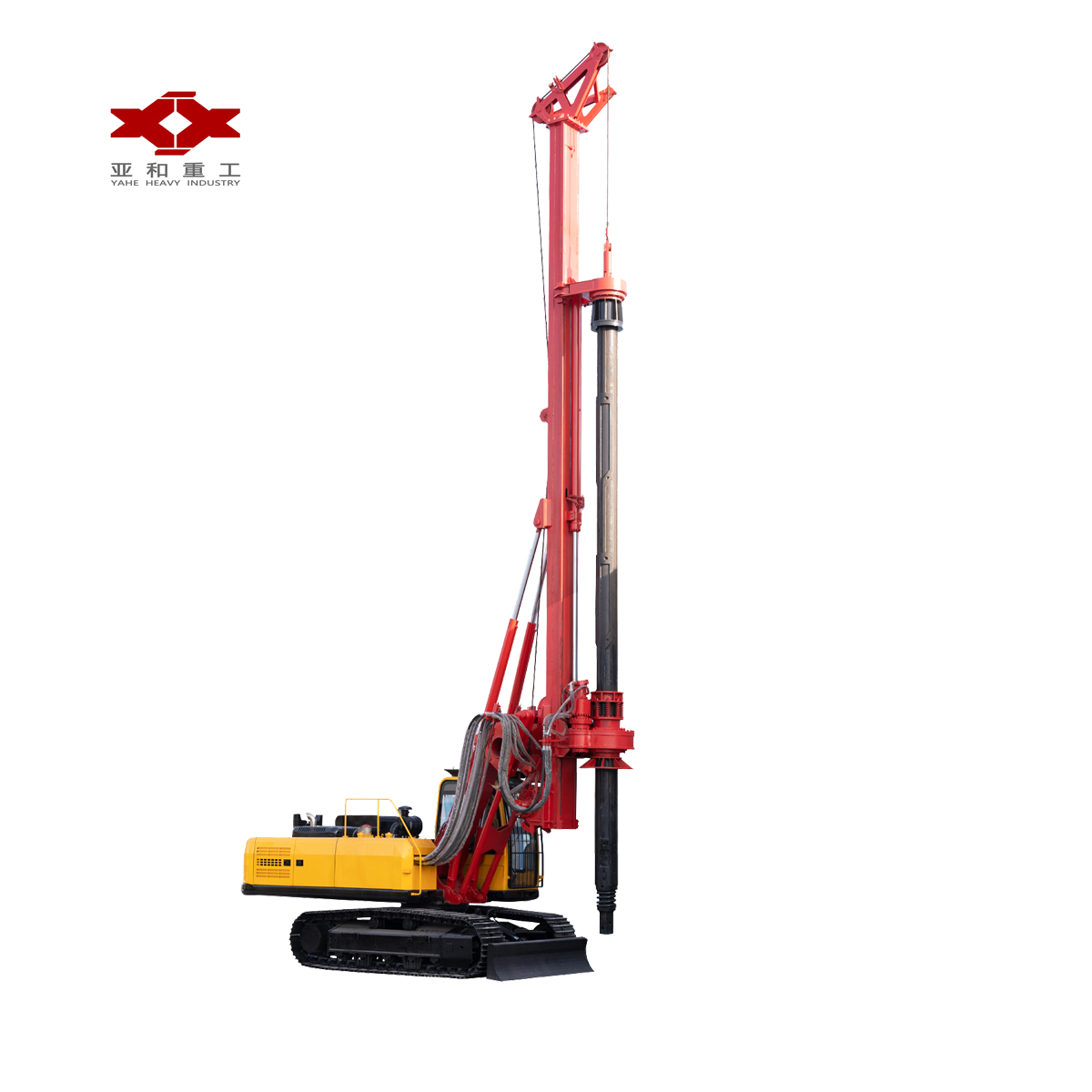

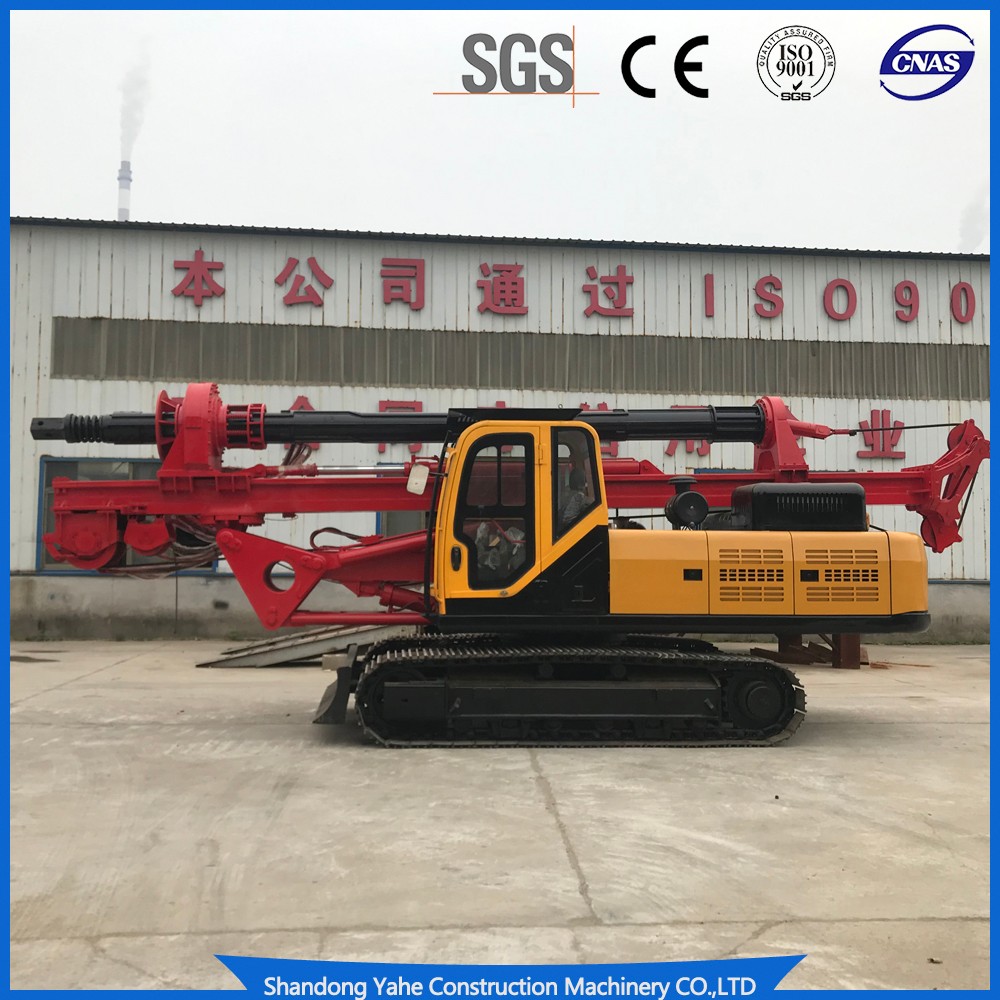

DR-90 15m kelly bar rotary drilling rig - Image 1

Technical Specifications

Overview

Versatile Drilling Performance

This 15m Kelly Bar Rotary Drilling Rig is engineered for efficiency in small-scale integrated construction projects. Designed for versatility, it excels in non-hard soil layers such as silty soil, making it ideal for cast-in-place piles, continuous walls, and foundation reinforcement. With a compact footprint, advanced hydraulic systems, and a focus on operator safety, this rig offers a high cost-performance ratio for demanding site requirements.

Technical Specifications

Suitable Soil Types

Non-hard soil layers
Silty soil

Max Drilling Depth: 15 m
Drilling Diameter Range: 450 - 1500 mm

Features & Safety

Safety Features

Fall-proof steel cockpit guardrail
Advanced hydraulic system

Certifications

Quality Certifications

CESGSISO
