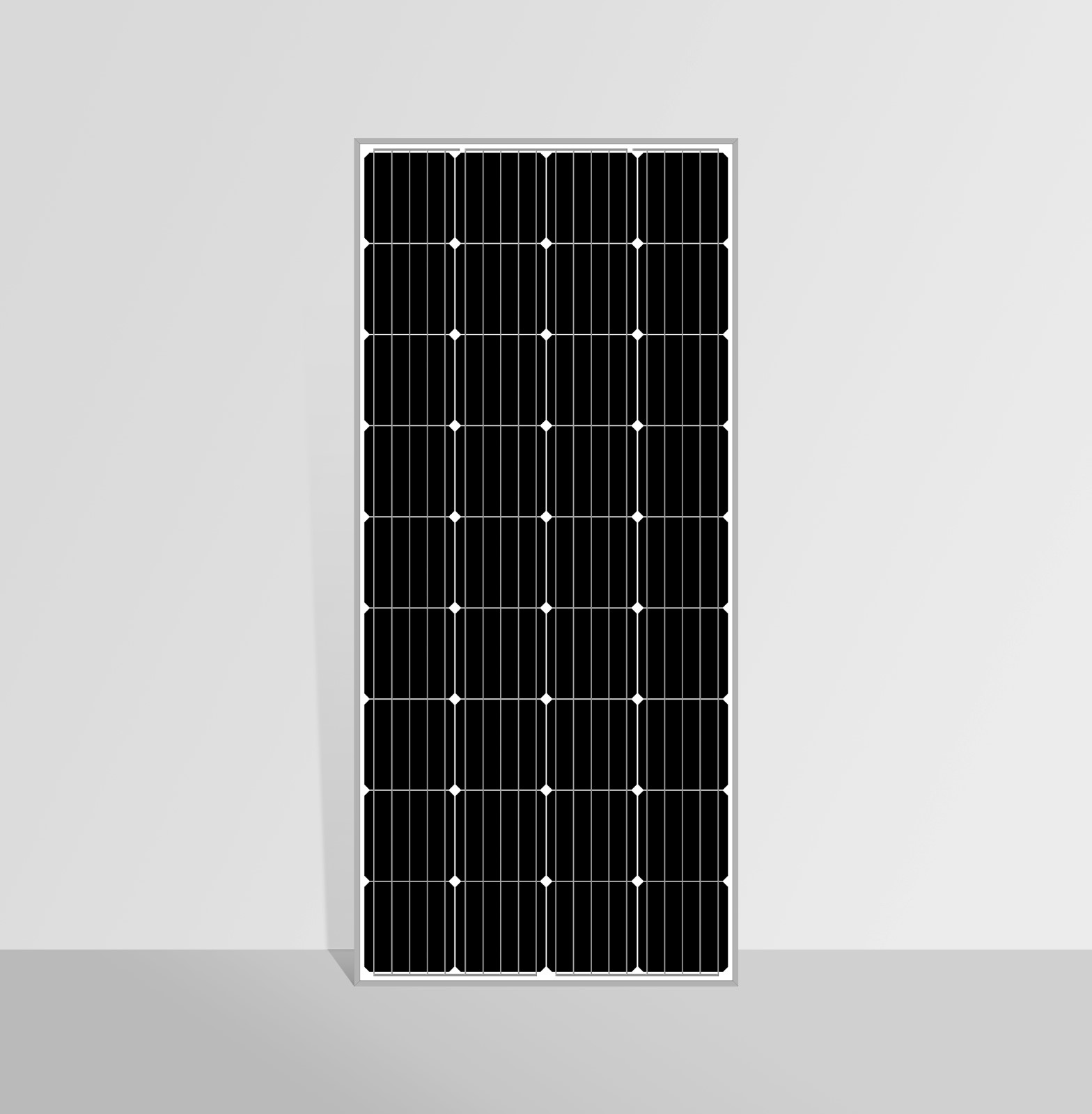

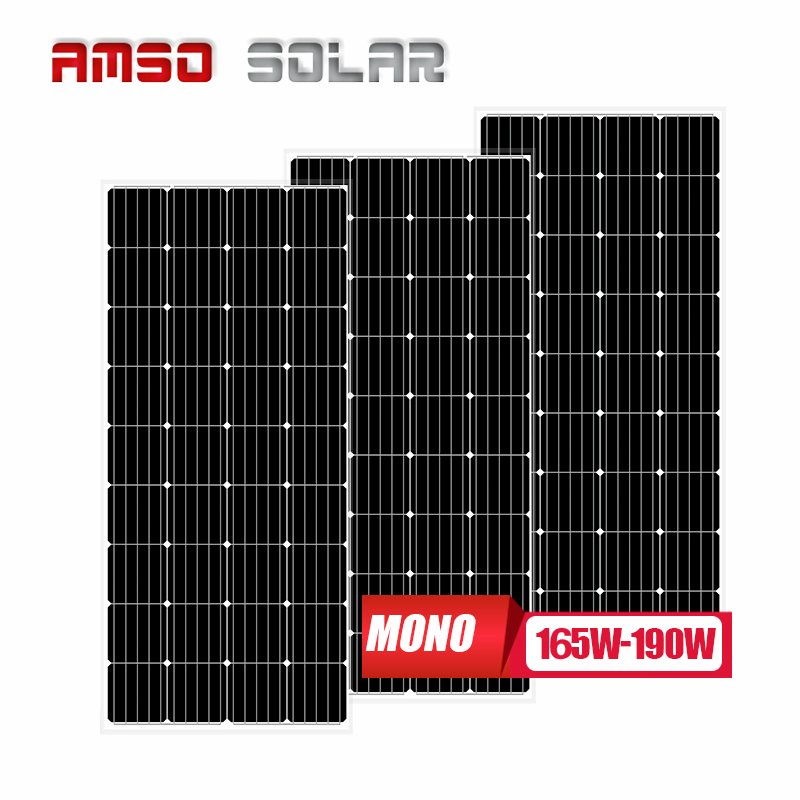

155W-190W Monocrystalline 36-Cell Solar Panel
This monocrystalline solar panel contains 36 cells and delivers between 155W and 190W of power. It is designed for use in residential, commercial, and off-grid solar systems.
Technical Specifications
Product Overview
High-Efficiency 36-Cell Monocrystalline Solar Panel
This standard-size solar panel series offers a power range from 155W to 190W, utilizing 36 high-efficiency monocrystalline cells. Designed for versatility, these modules are ideal for residential, commercial, and off-grid applications where reliable energy generation is required. The panels feature advanced 5-busbar technology and a robust aluminum frame to ensure long-term durability and excellent performance even in low-light conditions.
Key Performance Metrics
Performance Highlights
190 W
Max Power Output
20.37 %
Max Efficiency
36
Cell Count
1,500 VDC
Max System Voltage

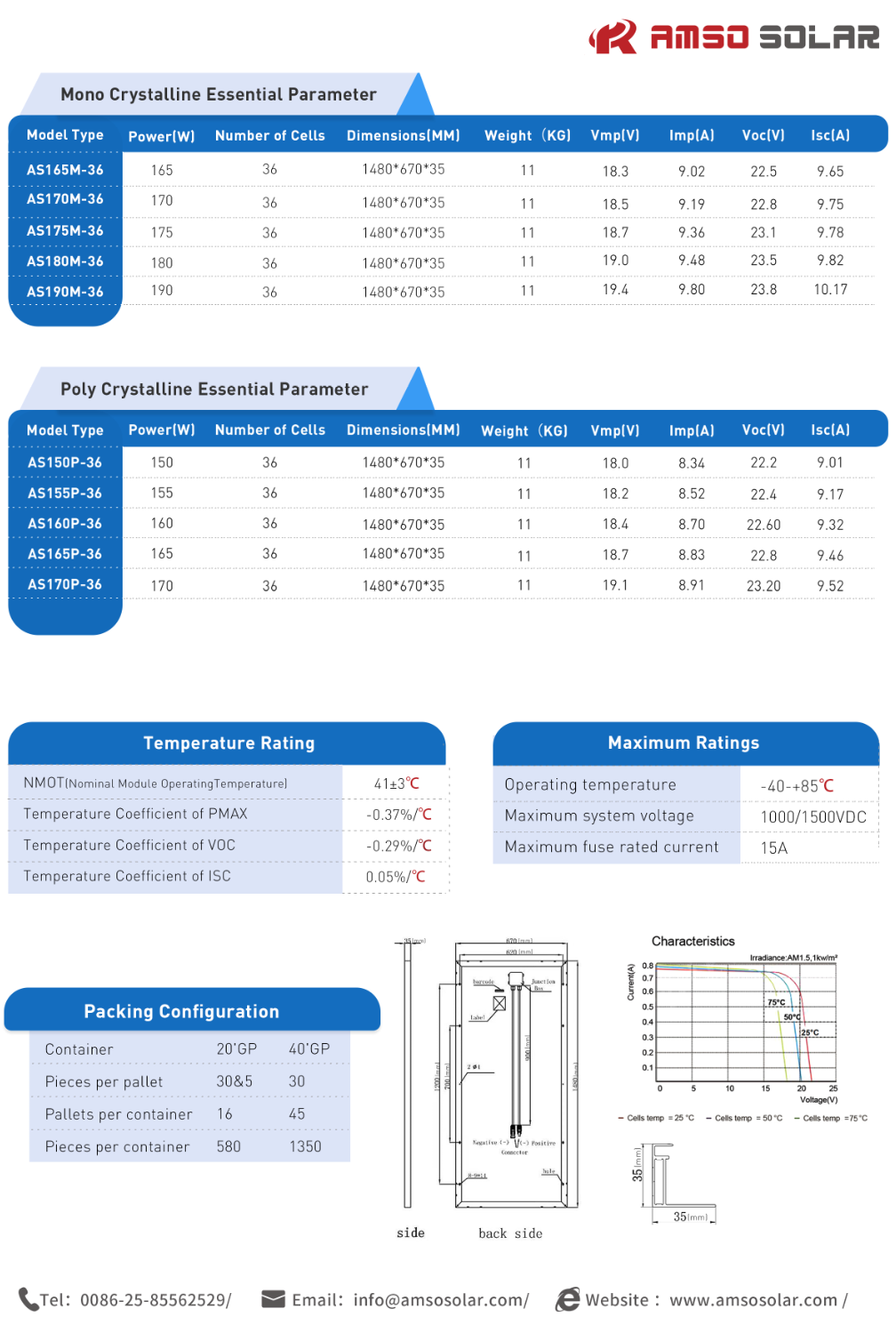

Electrical Specifications (Mono)
Monocrystalline Model Comparison
| Model | Pmax (W) | Vmp (V) | Imp (A) | Voc (V) | Isc (A) |
|---|---|---|---|---|---|
| 165M-36 | 165 | 18.3 | 9.02 | 22.5 | 9.65 |
| 170M-36 | 170 | 18.5 | 9.19 | 22.8 | 9.75 |
| 175M-36 | 175 | 18.7 | 9.36 | 23.1 | 9.78 |
| 180M-36 | 180 | 19 | 9.48 | 23.5 | 9.82 |
| 190M-36 | 190 | 19.4 | 9.8 | 23.8 | 10.17 |
Physical Characteristics
- Module Dimensions
- 1480 * 670 * 35 mm
- Module Weight
- 11 kg
- Frame Type
- High-stability Aluminum Frame
Environmental Ratings
Mechanical Load Capacity
- Wind Load: 2400 Pascal
- Snow Load: 5400 Pascal
- High Salt Mist Resistance
- Ammonia Resistance
- Operating Temperature Range
- -40°C to +85°C
Temperature Coefficients
- Temp. Coefficient of PMAX
- -0.37 %/°C
- Nominal Module Operating Temp
- 41±3°C

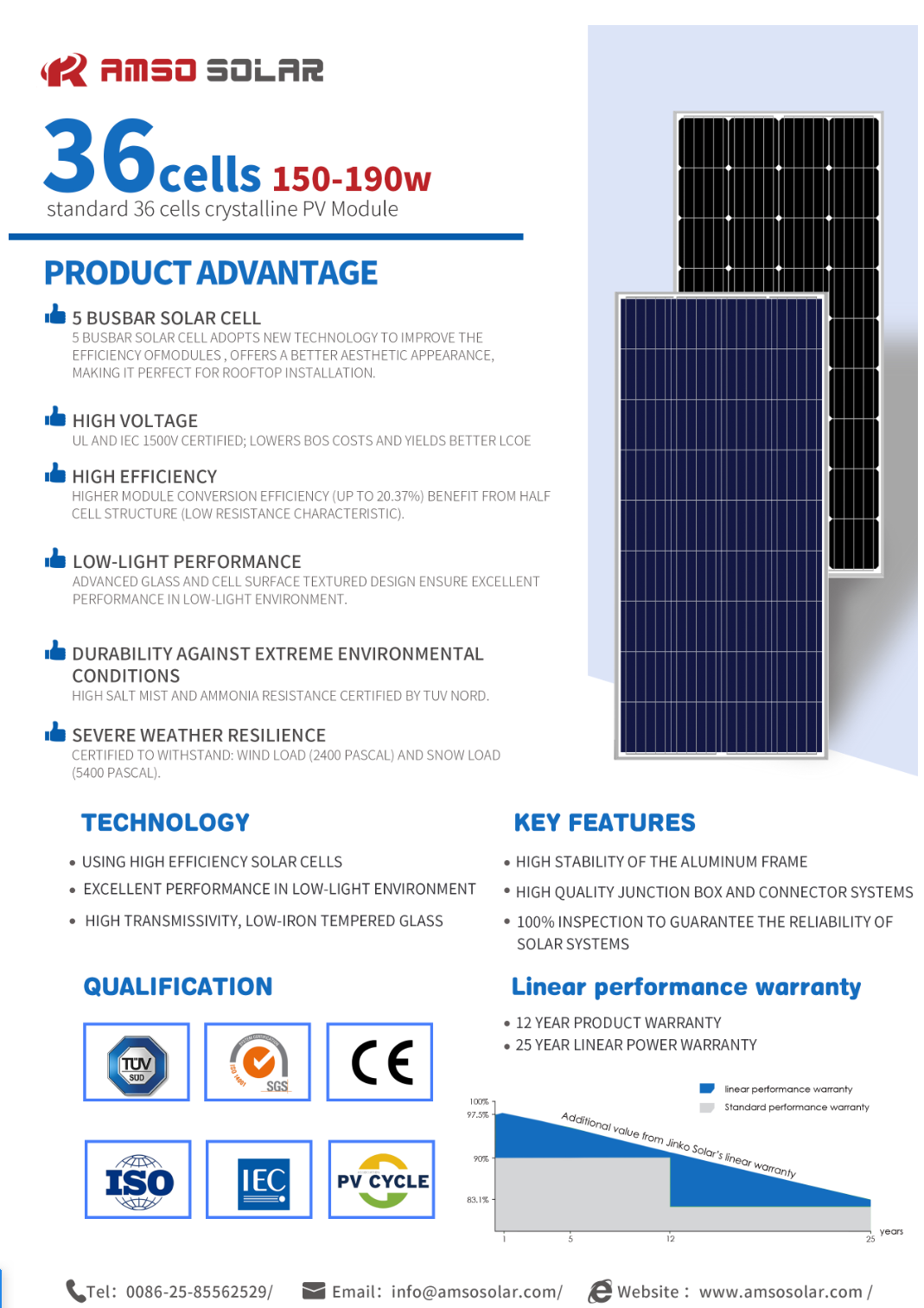

Certifications & Warranty
Warranty Coverage
- 12-Year Product Warranty
- 25-Year Linear Power Warranty
- Product Certifications
- TUVCESGSIEC 1500VULISO
Logistics Data
- 40'GP Container Capacity
- 1350 pieces (45 pallets)
