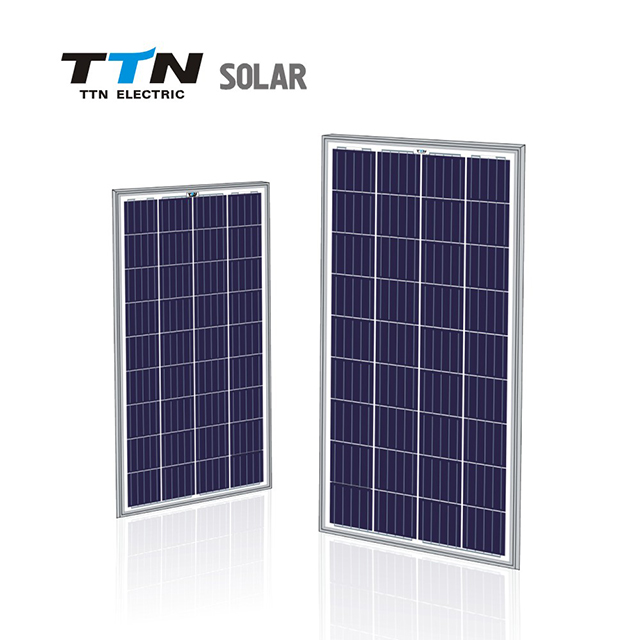

150W Polycrystalline Solar Panel
This high-efficiency 150W polycrystalline solar panel is designed for renewable energy applications. It is ideal for both grid-tied and off-grid solar systems, offering reliable power generation and durable performance in various weather conditions.
Technical Specifications
Product Overview
High-Efficiency Solar Power
This 150W polycrystalline solar panel is engineered for reliable power generation in both off-grid and grid-tied systems. Built for durability and performance, it features a 36-cell series configuration that excels in diverse environmental conditions. It is an ideal choice for residential, industrial, and commercial solar energy applications.
Certifications
- Compliance and Standards
- CETUVSGS
Electrical Specifications
Nominal Power
150 Wp
Rated Power
18.21 V
Max Power Voltage
8.24 A
Max Power Current
Performance Parameters
| Parameter | Value |
|---|---|
| Open Circuit Voltage (Voc) | 22.6V |
| Short Circuit Current (Isc) | 8.73A |
| Max System Voltage | 1000V |
| Module Efficiency | 15.22% |
Mechanical Data
- Physical Dimensions
- 1470mm x 670mm x 35mm
- Cell Layout
- 36 (4x9) 156x156mm Polycrystalline cells
Operating Conditions
Temperature Coefficients
- Isc: +0.05%/°C
- Voc: -0.34%/°C
- Pm: -0.42%/°C
- Temperature Range
- -40°C to +85°C
Warranty and Durability
Warranty Terms
10-Year Product Warranty25-Year Linear Warranty
