Technical Specifications
Overview

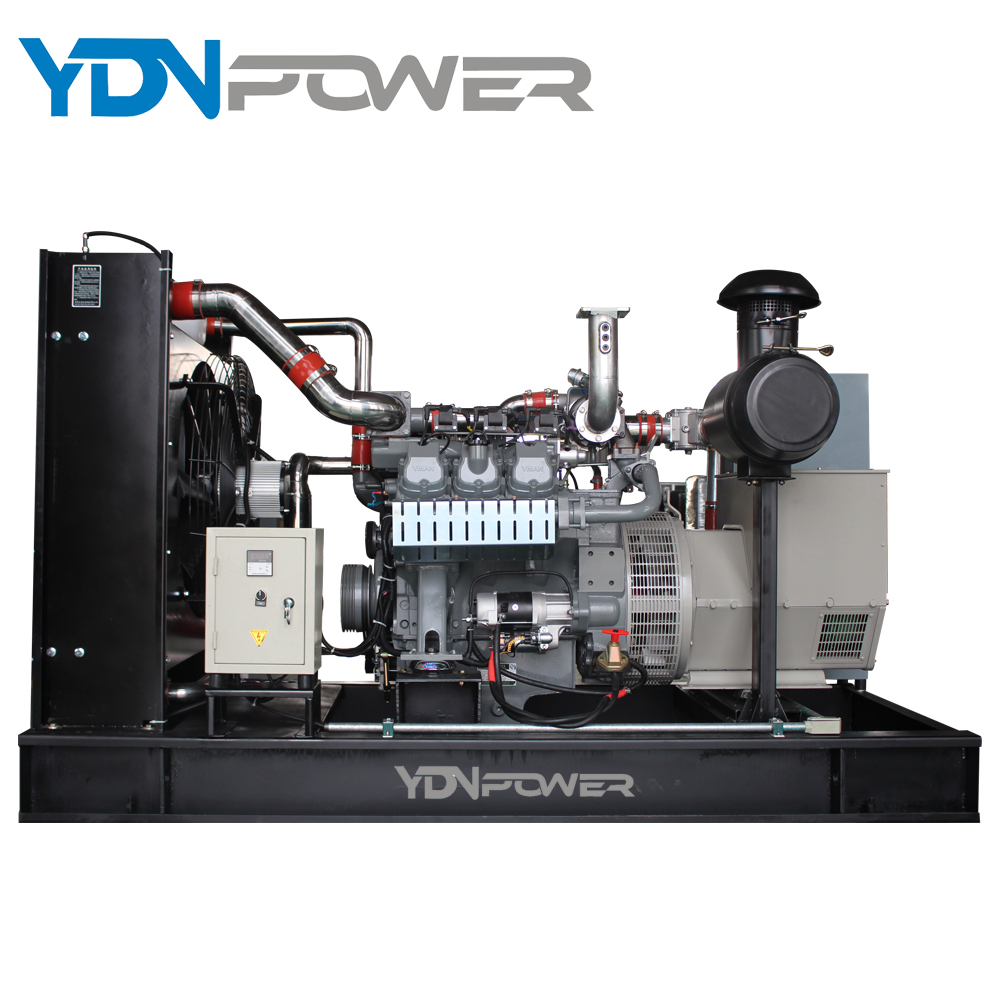

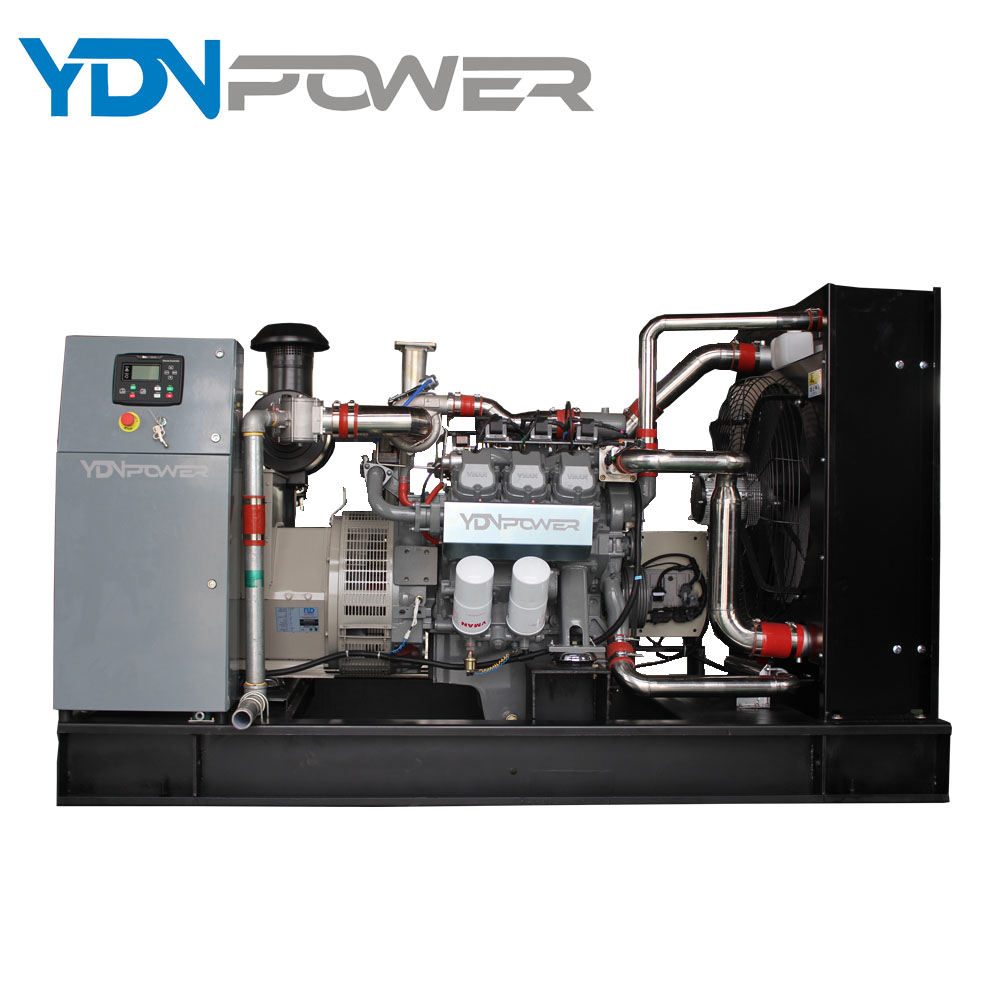

High-Efficiency Natural Gas Power Solution
This 150kW natural gas generator provides a reliable and clean energy source for continuous or standby power requirements. Engineered for industrial and commercial applications, it features a heavy-duty four-stroke engine and a high-efficiency brushless alternator to ensure stable voltage output. The unit includes an advanced digital control system for comprehensive monitoring, fault diagnostics, and automated operation.
Performance Metrics
Key Performance Metrics
150 kW
Rated Power
270 A
Rated Current
1,500 rpm
Rated Speed
94.5 %
Alternator Efficiency
Engine Specifications
Engine Configuration
| Parameter | Specification |
|---|---|
| Type | Four-stroke, Water-cooling, V6-type |
| Cylinder Count | 12 |
| Bore x Stroke | 128 x 142 mm |
| Rated Power | 200 kW |
- Fuel Consumption
- 45 Nm³/Hour
Electrical System
- Voltage & Frequency
- 220V380V50Hz
- Excitation Mode
- Brushless, Self Excitation
Control System
Control Module Dimensions
- Overall Dimensions: 266mm x 182mm x 45mm
- Panel Cutout: 214mm x 160mm
Operating Environment
- Temperature: -25°C to +70°C
- Humidity: 20% to 93%
Physical Dimensions
Physical Specs
- Size: 2600 x 1500 x 1800 mm
- Weight: 2500 kg
