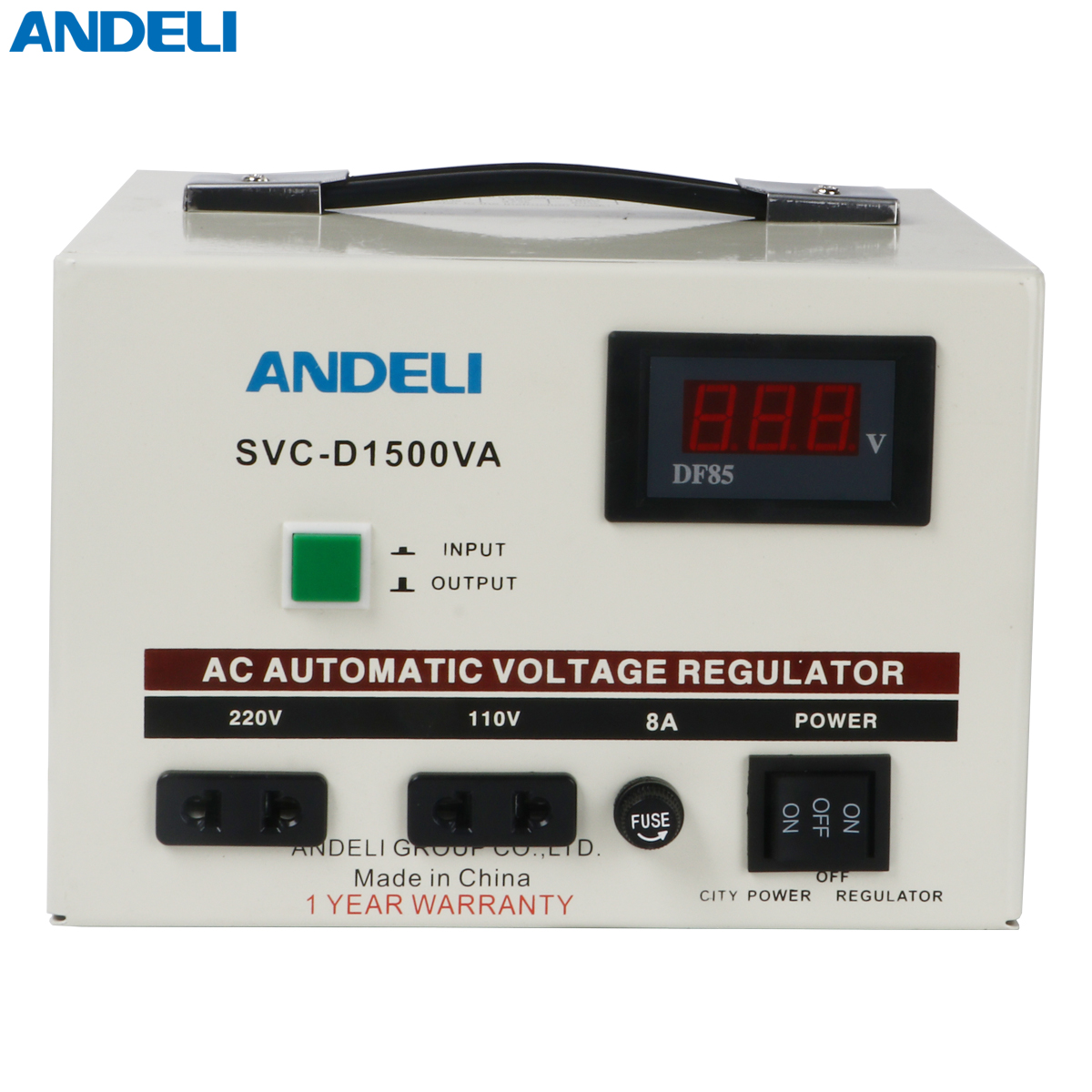

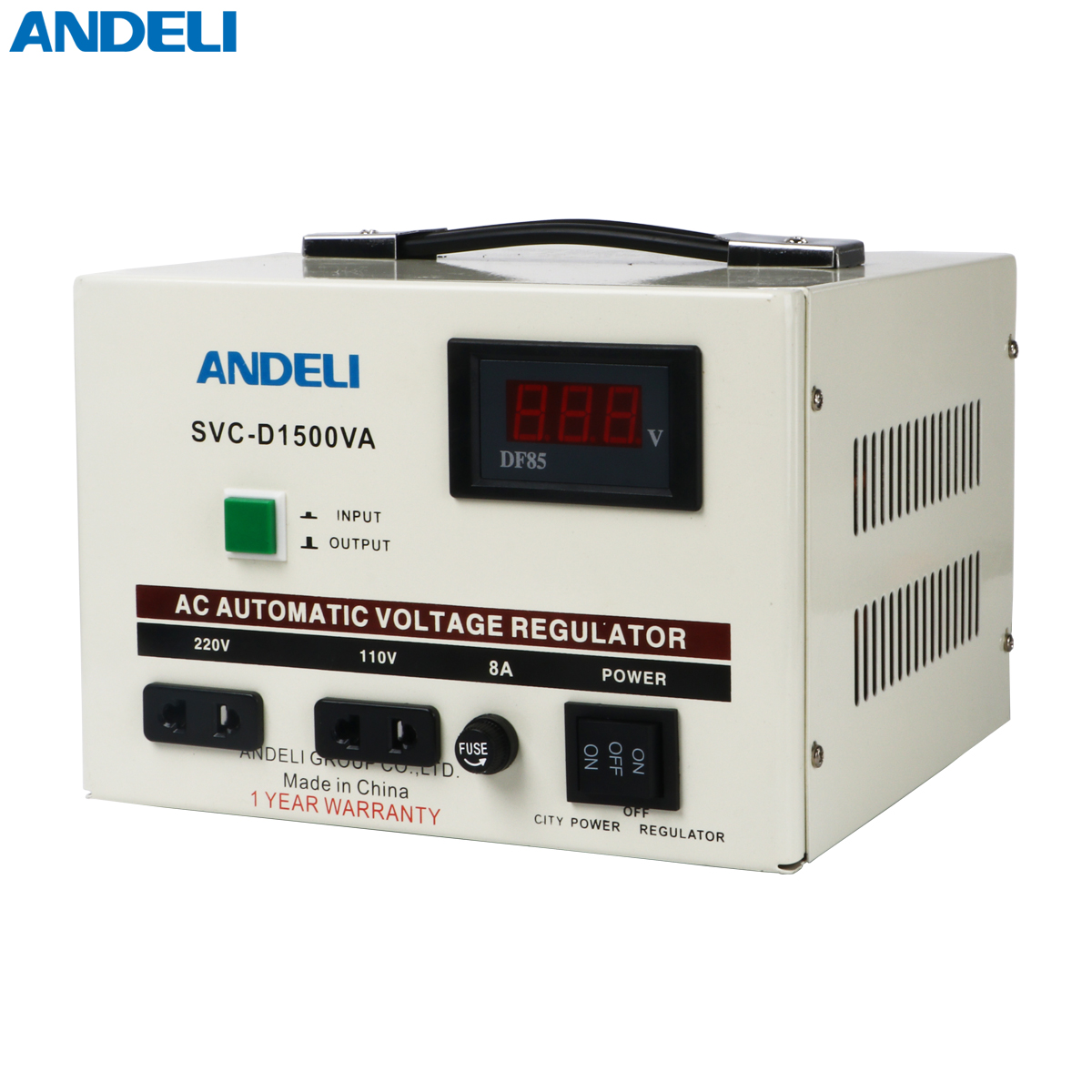

1500VA Automatic AC Voltage Stabilizer
This AC automatic voltage stabilizer provides a stable voltage output. It features a digital display and multiple power outlets.

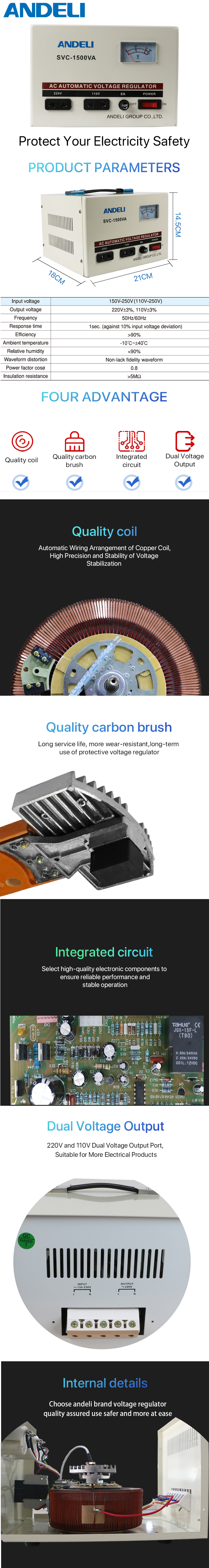

Technical Specifications
Product Overview
Professional AC Voltage Stabilization
This 1500VA automatic voltage regulator is engineered to provide a stable AC power supply for sensitive electronics and industrial equipment. It features high-precision dual-voltage output (220V/110V) and advanced internal control circuitry to protect against fluctuations. Designed for reliability, the unit combines a quality copper coil and a durable carbon brush system to ensure consistent performance and longevity.
Electrical Specifications
Performance Key Metrics
1,500 VA
Capacity
8 A
Rated Current
90 %
Efficiency
Voltage Parameters
| Parameter | Value |
|---|---|
| Input Voltage Range | 150V-250V (Option 110V-250V) |
| Output Voltage 1 | 220V ±3% |
| Output Voltage 2 | 110V ±3% |
| Frequency | 50Hz/60Hz |
Operational Conditions
Operating Environment
- Ambient Temperature: -10°C to +40°C
- Relative Humidity: <90%
- Insulation Resistance: >5 MΩ
- Power Factor: 0.8
Safety & Design
- Protection Features
- Fuse ProtectedDigital DisplayDual Voltage PortsOver-voltage Protection
