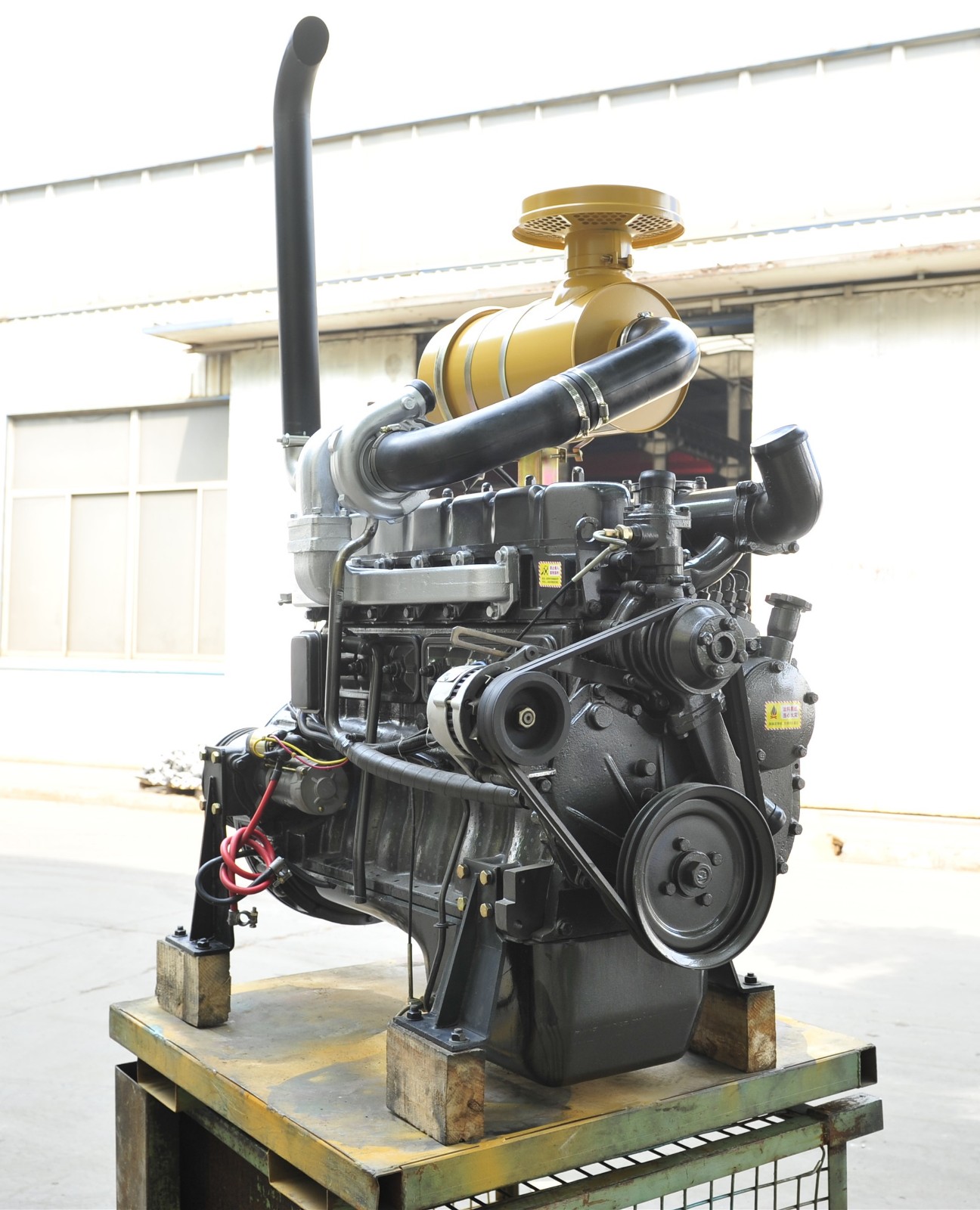

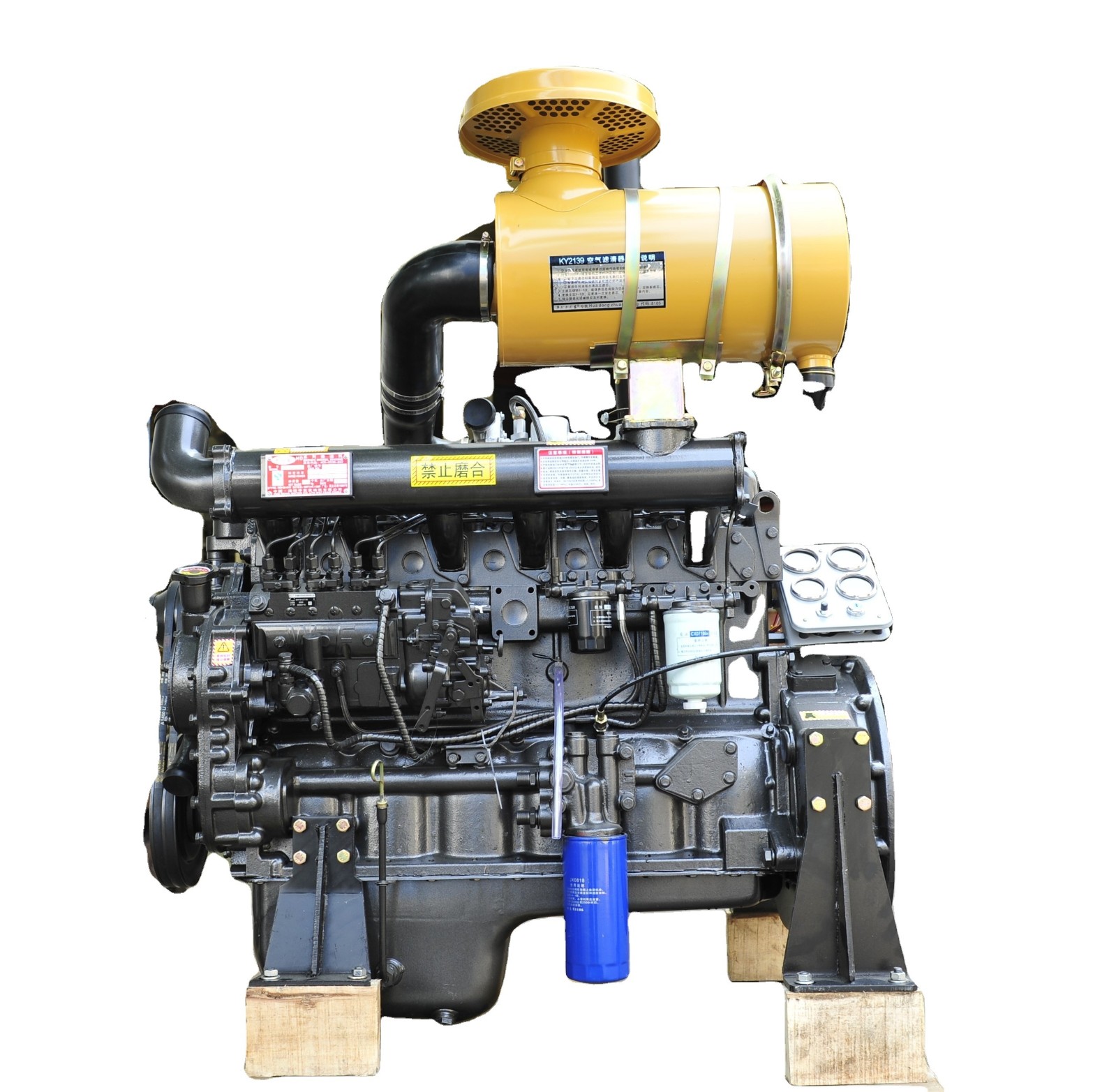

1500rpm Diesel Engine for Generator Drive
This diesel engine features a compact design for easier installation and transportation. It is designed for generator drive applications.
Technical Specifications
Overview
High-Performance Generator Drive Solutions
This series of 1500rpm diesel engines is specifically engineered for reliable generator drive applications, featuring a compact design for easy installation and transport. The engines incorporate advanced piston and valve sealing techniques to significantly reduce fuel consumption while extending the operational lifespan of injectors and high-pressure pumps via integrated water filtration. With an overhaul interval exceeding 10,000 hours and high-frequency hardened components, these engines offer exceptional fatigue strength and wear resistance for demanding industrial environments.
Key Performance Metrics
Performance Highlights
Technical Specifications
Engine Model Comparison
| Model | Cylinders | Displacement (L) | Bore x Stroke (mm) | Output @1500rpm (kW) | Weight (kg) |
|---|---|---|---|---|---|
| K4100D | L4 | 3.61 | 100×115 | 30.1 | 330 |
| K4100ZD | L4 | 3.61 | 100×115 | 41.2 | 340 |
| K4102ZD | L4 | 3.76 | 102×115 | 45 | 360 |
| R4105ZD | L4 | 4.33 | 105×125 | 56 | 435 |
| R6105ZD | L6 | 6.49 | 105×125 | 84 | 580 |
| R6105AZLD | L6 | 6.75 | 105×130 | 110 | 620 |
| R6105IZLD | L6 | 7.1 | 105×135 | 135 | 620 |
| HD6126ZLD | L6 | 9.726 | 126×130 | 235 | 950 |
| HD12ZLD | L6 | 11.596 | 126×155 | 288 | 1,100 |
Design Features
Advanced Engineering Features
- Compact design for convenient installation and transportation
- Advanced water filtration system to protect injectors and high-pressure pumps
- Specialized piston ring and valve sealing to minimize consumption rates
- High-frequency hardened shaft diameters and rounded corners for wear resistance
- Forged high-pressure components for improved fatigue strength
Compliance & Quality
- Standards & Certifications
- ISO 9001:2015GB/T19001-2016CE CertifiedMachinery Directive 2006/42/ECISO 12100:2010
Applications
Target Applications
Logistics
Export-Grade Packaging
Engines are prepared for international transit using moisture-control silica gel desiccants and protective plastic wrapping. Units are secured in heavy-duty wooden crates labeled with model specifications and quantities, ensuring safety during containerized shipping.
