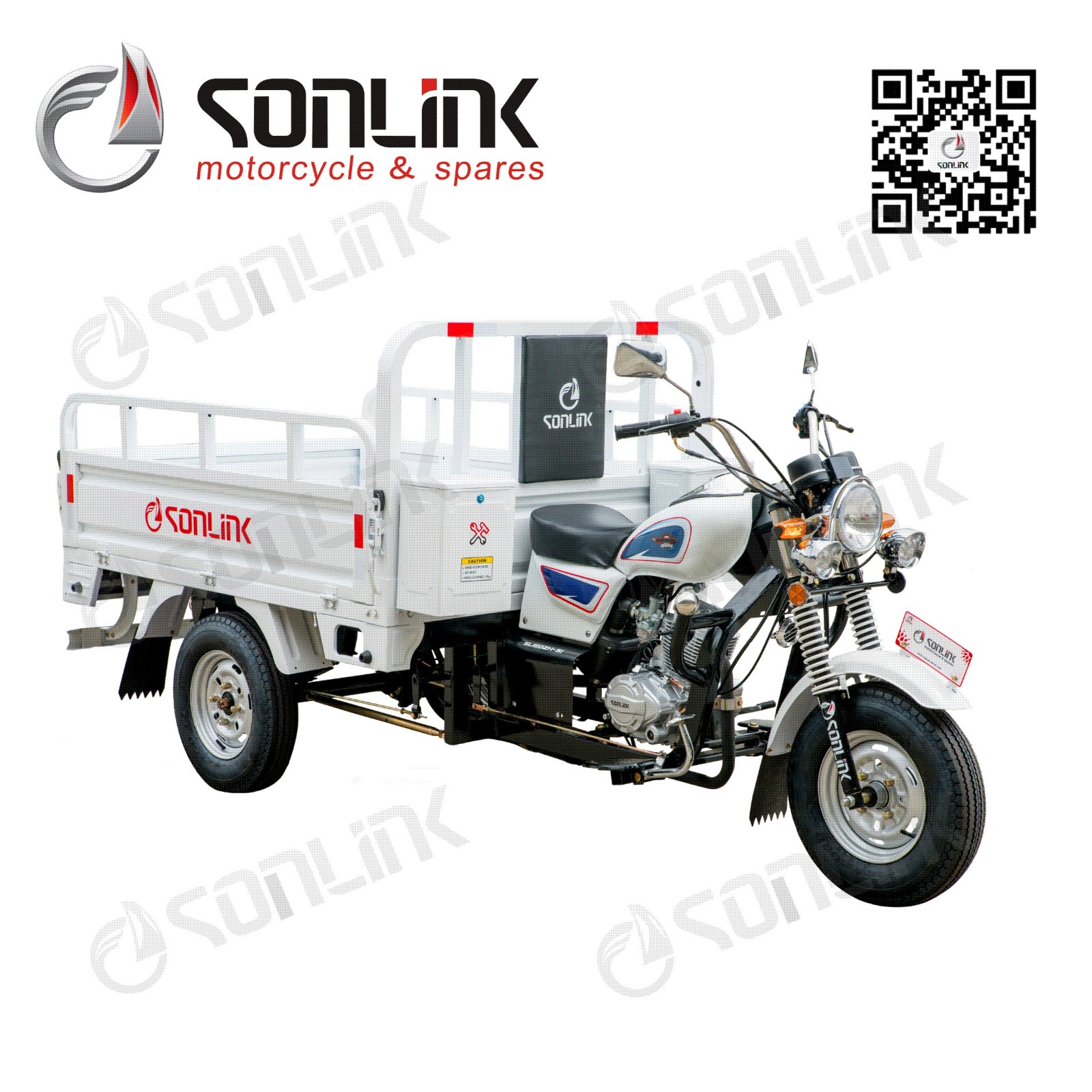

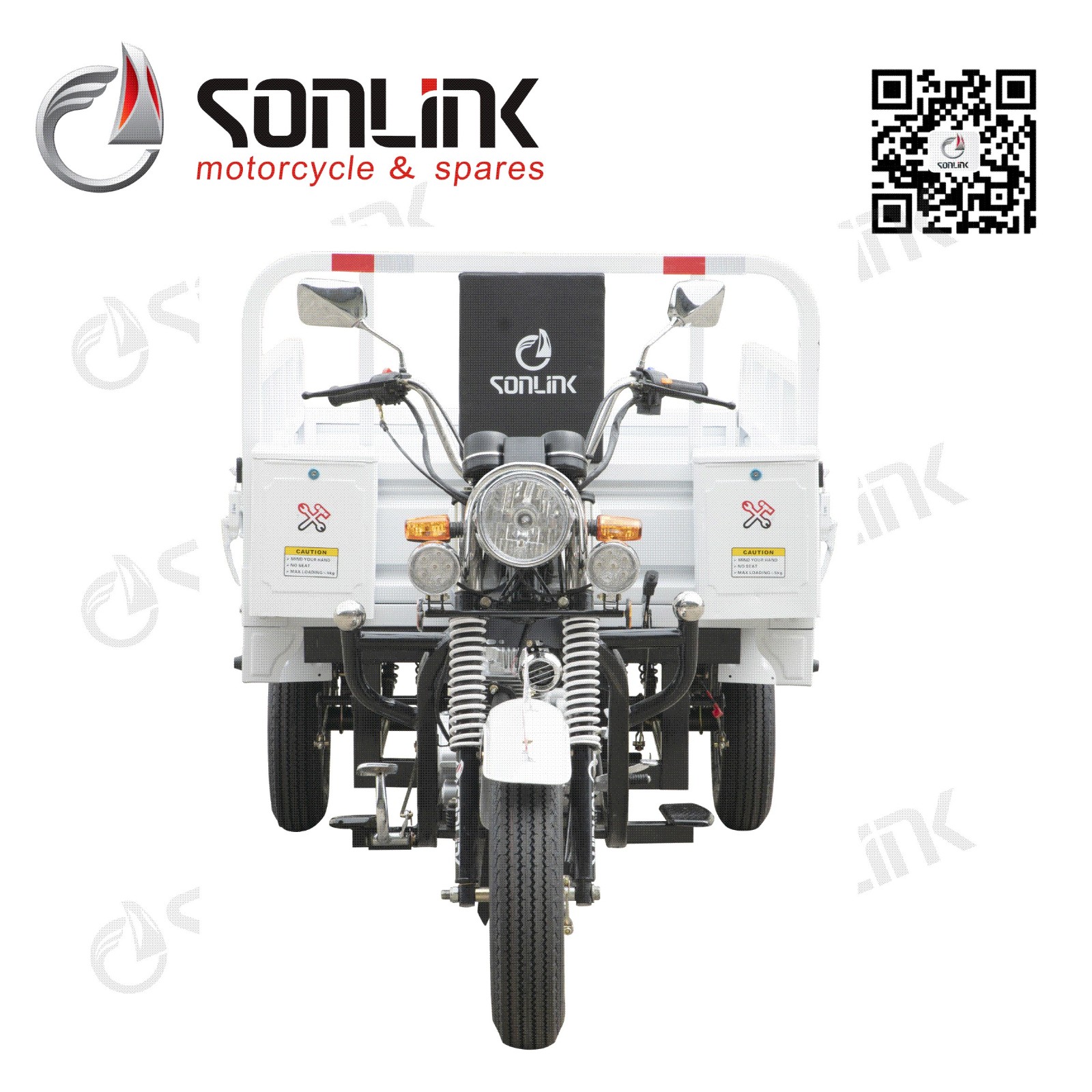

150-250cc Air/Water Cooled Engine Tricycle
This tricycle features classic headlights and a simple, stylish design. It has a 13L fuel tank, high-end front shock absorbers, and a 40mm engine cylinder head space for convenient maintenance.
Technical Specifications
Overview
Durable Open Cargo Tricycle
This versatile three-wheel motorcycle is designed for heavy-duty cargo transport and utility applications, offering a robust frame and high loading capacity. Available in 150cc, 200cc, and 250cc configurations, it features both air and water cooling options to ensure optimal thermal management during demanding tasks. With a 13L enlarged fuel tank and efficient fuel consumption, it provides a reliable and cost-effective solution for professional B2B sourcing needs.
Performance Metrics
Performance Highlights
1,000 kg
Max Loading Capacity
70 km/h
Maximum Speed
9 kw/r/min
Max Power
Engine Specifications
- Engine Type
- 200cc single-cylinder, Water-cooled, four-stroke
- Ignition & Starter
- C.D.I with Electric/Kick start system
- Gear Shift Pattern
- 5
- Cooling System Options
- Air CooledWater Cooled
Chassis & Build
Key Design Features
- Classic stylish headlights
- Anti-skid points on foot pedal
- High-end front shock absorber
- 40mm engine cylinder head space for maintenance
- 13L enlarged fuel tank
- Braking System
- Drum (Front) / Drum (Rear)
- Tire Size
- 5.0-12 (Front) / 5.0-12 (Rear)
Dimensions & Weight
Vehicle Dimensions
| Parameter | Value |
|---|---|
| LWH | 3460 x 1200 x 1400 mm |
| Wheel Base | 2270 mm |
| Seat Height | 900 mm |
| Ground Clearance | 150 mm |
| Dry Weight | 340 kg |
Efficiency & Logistics
- Fuel Consumption
- 3.8 L/100km
- Container Loading (CKD)
- 48 units per 40HQ container
Compliance
Quality Standards
ISO 14001:2004CCCSONCAPGB/T 24001-2004
