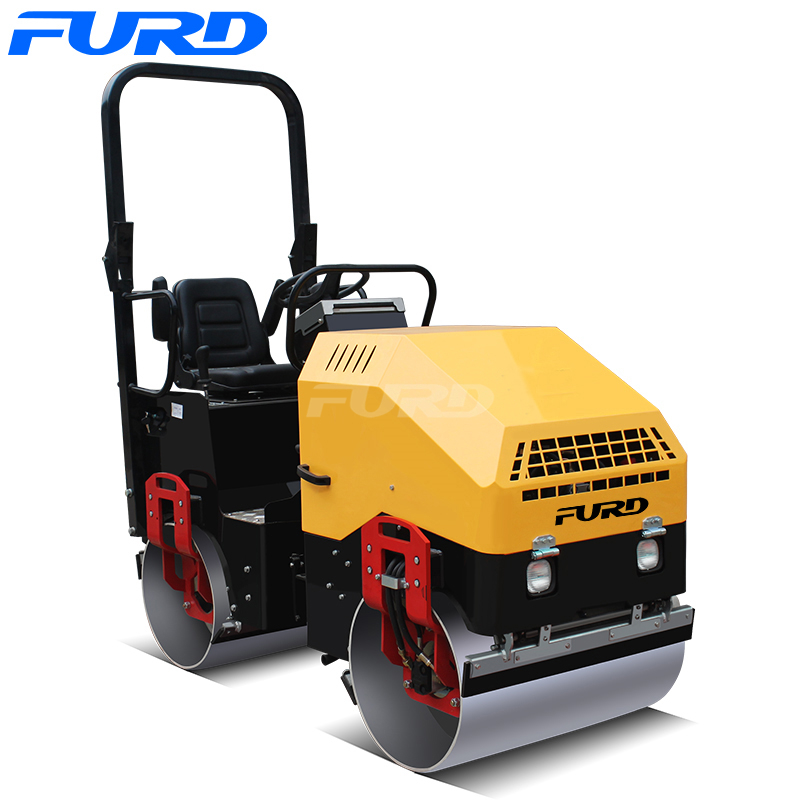

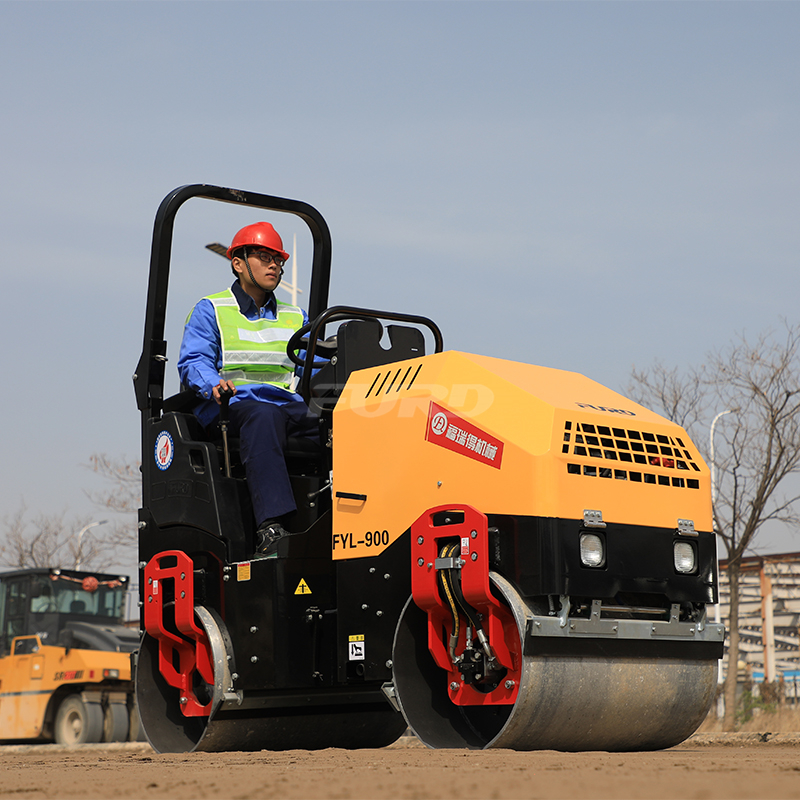

1.5 Ton Hydraulic Vibratory Road Roller
This 1.5 ton full hydraulic vibratory road roller is a compact machine designed for efficient soil and asphalt compaction. It features a vibratory drum for optimal compaction performance and enhanced surface stability.
Technical Specifications
Overview
Compact Hydraulic Vibratory Roller
The 1.5 Ton Hydraulic Vibratory Road Roller is a versatile construction machine engineered for efficient soil and asphalt compaction. Featuring a fully hydraulic system with infinitely variable speed, it offers precise maneuverability in narrow areas and groove backfill applications. With its robust vibration capacity and dual-drum drive, this roller ensures high-quality surface density and stability for various road maintenance and paving projects.
Performance Metrics
Key Performance Indicators
1,500 kg
Working Weight
8 km/h
Max Travel Speed
30 KN
Exciting Force
65 Hz
Vibration Frequency
Technical Specifications
Engine Configuration
- Perkins 403D-11 (25HP)
- HONDA GX630 (20HP)
Detailed Technical Data
| Parameter | Value |
|---|---|
| Gradeability | 30% |
| Static Linear Load | 55/70 N/cm |
| Nominal Amplitude | 0.6 mm |
| Water Tank Capacity | 100 L |
| Hydraulic Oil Tank | 60 L |
- Drive & Steering
- Fully Hydraulic SystemDouble Drum DriveHydraulic Steering Gear
Physical Dimensions
- Machine Dimensions
- 2500 x 1200 x 1750 mm (Package Size)
- Steel Wheel Size
- Φ560 x 900mm / Φ560 x 1000mm
