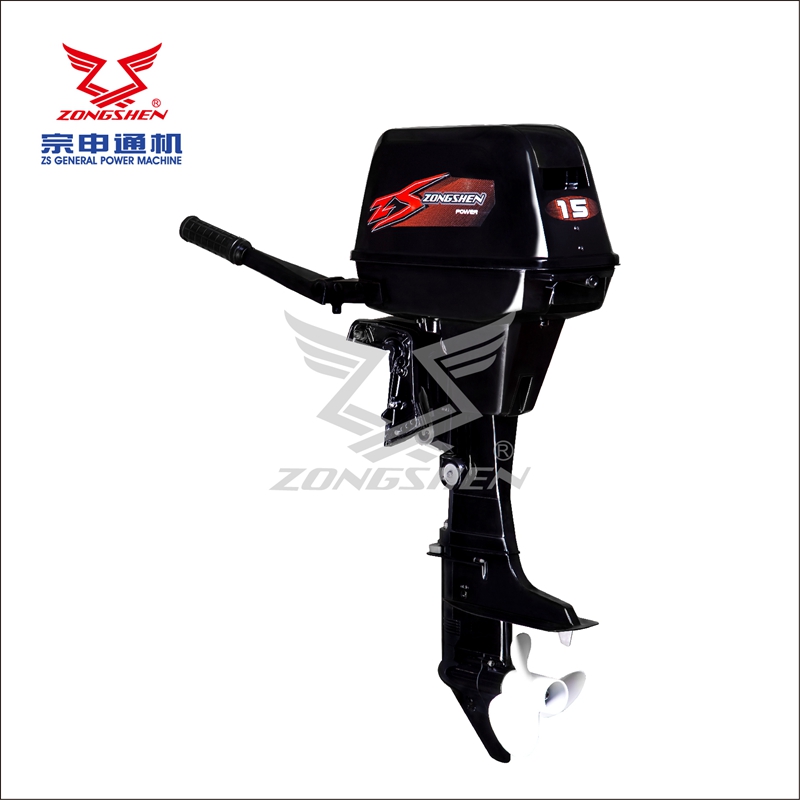

15 HP 2-Stroke Outboard Engine
This 15 HP 2-stroke outboard engine is designed for small to medium-sized boats. It features a robust construction, efficient fuel consumption and smooth operation.
Technical Specifications
Overview
High-Performance 2-Stroke Outboard Engine
This 15 HP 2-stroke outboard engine is engineered for reliability and efficient performance on small to medium-sized vessels ranging from 2.0m to 7.0m. Designed to meet EU EC emission standards, it offers a refined, low-noise operation without unpleasant odors or smoke. With versatile starting options and a durable, user-friendly design, it is an ideal choice for fishing, recreation, and general water transportation.
Performance Metrics
Key Performance Indicators
15 hp
Max Output Power
259 cm3
Displacement
5,500 rpm
Max Operating RPM
Technical Specifications
Engine Configuration
| Attribute | Specification |
|---|---|
| Engine Type | 2-stroke, 2-cylinder |
| Bore x Stroke | 58 x 49 mm |
| Ignition System | CDI |
| Cooling System | Forced-water cooling |
| Exhaust | Through propeller-hub |
Fuel & Lubrication
- Fuel: Petrol (min 92 RON)
- Oil Mix Ratio: 50:1
- Recommended Oil: TC-WII or TC-WIII
- Fuel Tank Capacity: 12 Litres
Compatibility & Dimensions
Transom Height Compatibility
Standard Shaft: 390 mmLong Shaft: 520 mm
Weight by Configuration (kg)
| Configuration | Manual Start | Electric Start |
|---|---|---|
| Standard Shaft | 35 | 38 |
| Long Shaft | 36 | 39 |
Operation
- Gear & Control
- ForwardNeutralReverseTiller Handle Steering
