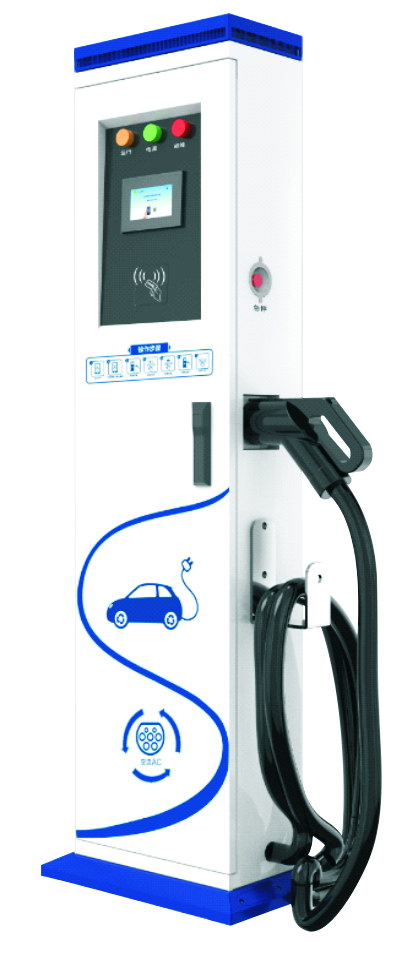

15-40kW DC Electric Vehicle Charging Pile
This DC charging pile is designed for electric vehicles, with a power range of 15-40kW. It supports swiping a card or scanning a QR code to initiate charging, with multiple payment methods available.
Technical Specifications
Overview
Versatile DC Charging Solution
This 15-40kW DC electric vehicle charging pile is designed for reliability and efficiency in both public and private settings. Featuring a robust IP54-rated enclosure, it is built to withstand outdoor environmental conditions while providing a user-friendly interface. With support for multiple payment methods and flexible charging modes, this unit offers a comprehensive solution for modern EV infrastructure.
Electrical Specifications
Rated Output Power
15 kW
Minimum Power
40 kW
Maximum Power
- Input Voltage
- AC380V ± 20%
- Input Frequency
- 45-65Hz
- Output Voltage
- 50-750V
- Output Current
- 0-54A / 110A
Safety & Compliance
Protection Grade
IP54
- Leakage Protection
- Current ≤ 30mA, Action time ≤ 0.1s
Connectivity & Interface
Communication Interfaces
- Ethernet
- CAN interface
- RS232 / 485
- GPRS / 3G / 4G wireless
- Display
- 4.3-inch color touch screen
Operation & Payment
- Charging Modes
- AutomaticQuantitativeTimingPricing
- Payment Methods
- Mobile APPCredit CardWeChatAlipay
- Configuration
- Single gun / Double gun (optional)
