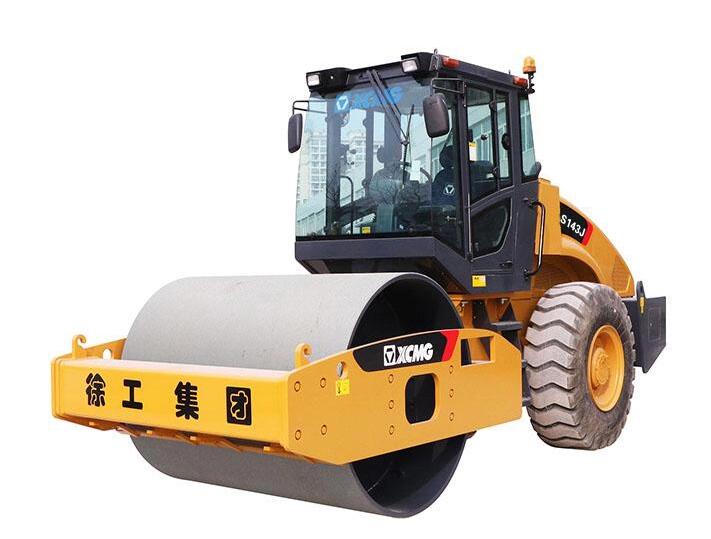

14-Ton Single Drum Vibratory Road Roller
This 14-ton single drum vibratory road roller features a high static line load and exciting force. It is suitable for compacting pebbles, sandy soils, moraine soil, blasting rock, and clayey soil in large projects.
Technical Specifications
Overview
High-Performance 14-Ton Vibratory Roller
This 14-ton single drum vibratory roller is engineered for heavy-duty compaction tasks, including soil, sub-base, and asphalt materials. It features a robust high-strength frame and a reliable hydraulic vibratory system designed for consistent performance across diverse construction projects. With a spacious operator cabin and user-friendly controls, this machine balances power, efficiency, and operator comfort for infrastructure and road building applications.
Performance Metrics
Rated Power
103 kW
Rated Power
1,800 r/min
Rated Speed
Compaction Capabilities
| Metric | Value |
|---|---|
| Static Line Load | 315 N/cm |
| Vibration Frequency | 28/33 Hz |
| Theoretical Amplitude | 1.9/0.95 mm |
| Exciting Force | 274/190 kN |
| Compaction Width | 2130 mm |
Technical Specifications
Weight Distribution
- 14,000
- 7,300
- 6,700
Operating Speeds
| Direction | Gear I | Gear II | Gear III |
|---|---|---|---|
| Forward (km/h) | 2.85 | 5.08 | 11.17 |
| Backward (km/h) | 2.88 | 5.02 | 0 |
Dimensions & Geometry
Maneuverability & Clearance
- 3,040
- 6,800
- 431
- Overall Dimensions
- 6150 x 2300 x 3200 mm
- Theoretical Gradeability
- 30 %
