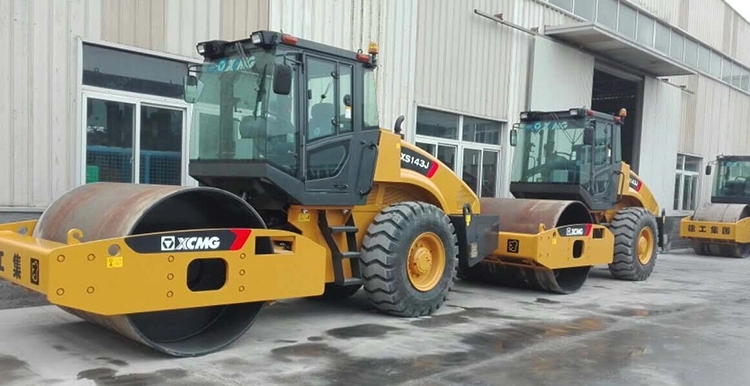

14-Ton Single Drum Mechanical Vibratory Roller
This 14-ton single drum vibratory roller features a unique drum structure for enhanced rigidity. The bearing adopts a short cylindrical design, offering a high rotary speed limit and strong bearing capacity.
Technical Specifications
Overview
Heavy-Duty Compaction Performance
This 14-ton single drum mechanical vibratory roller is engineered for high-performance soil and rock fill compaction. Designed for versatility, it is an ideal solution for modern infrastructure projects including freeways, airports, dams, and railways. The unit combines a robust mechanical drive system with a reliable hydraulic vibratory system to ensure efficient, high-quality compaction across diverse job sites.
Key Performance Metrics
Operating Weight
14,000 kg
Operating Weight
2,130 mm
Compacting Width
30 %
Theoretical Gradeability
Technical Specifications
Mass Distribution
| Component | Mass |
|---|---|
| Driving Wheel | 7,300 |
| Vibrating Drum | 6,700 |
Vibration System
- Frequency: 28/33 Hz
- Theoretical Amplitude: 1.9/0.95 mm
- Centrifugal Force: 274/137 kN
- Static Linear Load: 315 N/cm
Engine & Power
Engine Specifications
- Model: SC4H140.1G2
- Rated Power: 103 kW
- Rated Speed: 1800 r/min
- Water-cooled, low noise design
Operational Features
- Cabin & Control Features
- Spacious CabWide ViewHumanity Instrument PanelSynchronizer GearboxAnti-slip Drive Axle
- Maintenance Design
- Yes
