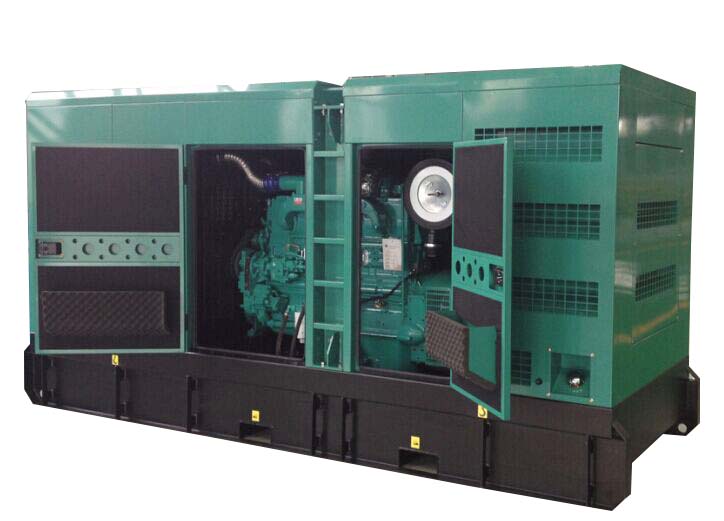

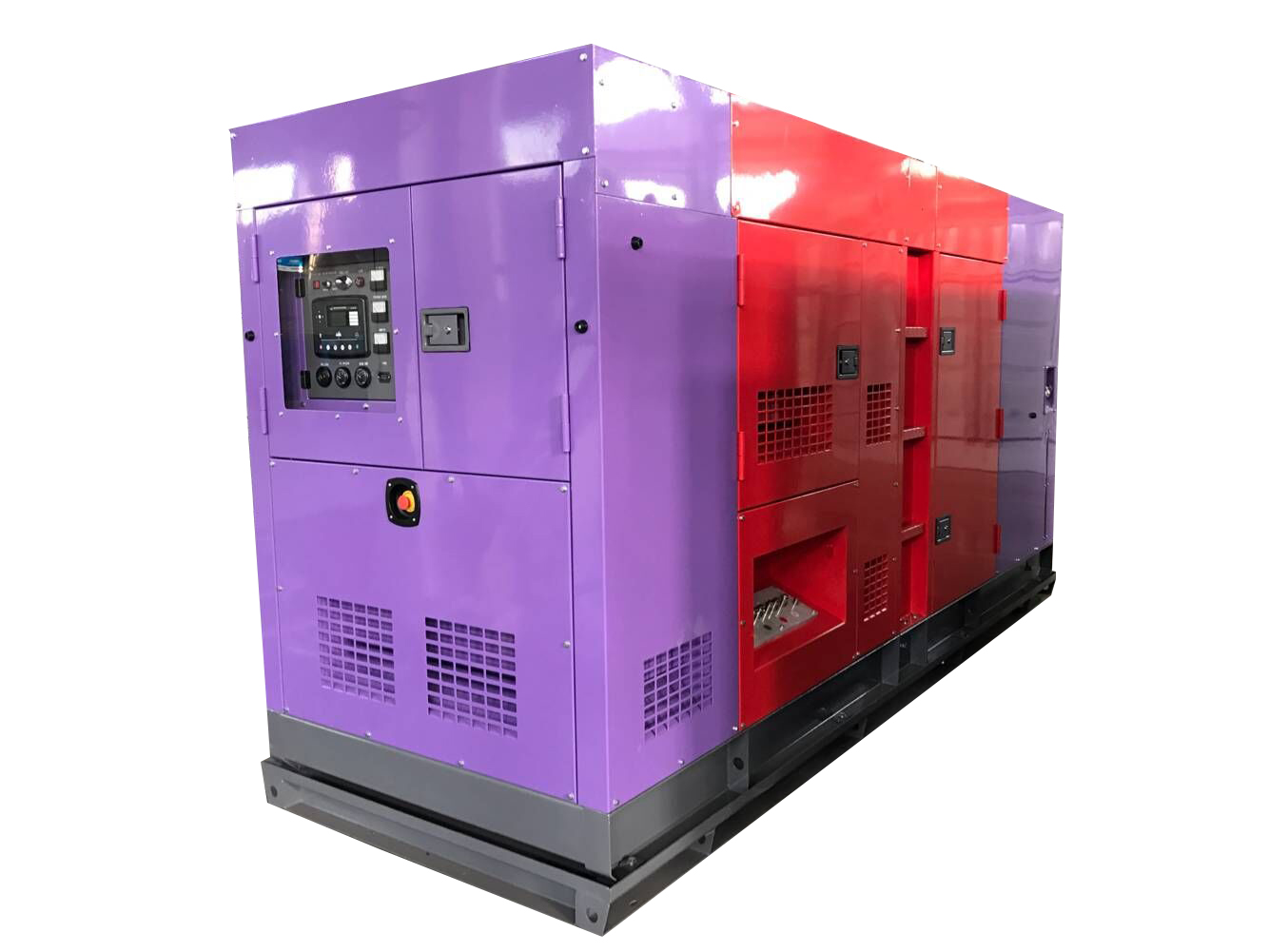

138kVA 110kW 50Hz Silent Diesel Generator
This 138kVA diesel generator provides a reliable 110kW power output at 50Hz. The soundproof enclosure ensures quiet operation for various applications.
Technical Specifications
Overview
Reliable High-Capacity Power Solution
This 138kVA silent diesel generator is engineered for high-torque performance and easy maintenance, making it an ideal primary or backup power source for demanding B2B applications. Featuring a corrosion-resistant, high-quality sheet metal canopy, it offers exceptional waterproof and dust-proof protection for reliable operation in harsh environments. The unit is designed with a focus on low noise emissions and user-friendly omni-directional controls to ensure a seamless power management experience.
Performance Metrics
Rated Output
138 kVA
Prime Capacity
110 kW
Prime Power
50 Hz
Frequency
Engine Specifications
Engine Technical Data
| Parameter | Specification |
|---|---|
| Configuration | 6-Cylinder, In-Line |
| Cycle | 4-Stroke |
| Bore / Stroke | 102 mm / 120 mm |
| Compression Ratio | 17.3:1 |
| Displacement | 5.9 L |
| Induction Type | TCA |
| Governing Type | Electronic |
| Cooling Method | Water Cooled |
| Lubricant Capacity | 16.4 L |
| Coolant Capacity | 10 L |
Alternator & Electrical
Alternator Features
- 100% Copper Windings
- Insulation Class: H
- Protection Rating: IP23
- Voltage Regulation: ± 1.0%
- Excitation System: Self-excited, SHUNT
- Winding Pitch: 2/3
- THF (BS EN60034-1): < 2%
- TIF (NEMA MG 1-22): < 50
Physical Design
- Enclosure & Handling
- Silent CanopyCorrosion-ResistantScratch-ResistantRain-ProofDust-ProofCrane Lifting PointsForklift PocketsIntegrated Fuel Tank
Operational Limits
Operating Environment
| Condition | Value |
|---|---|
| Ambient Temperature Limit | 50 °C |
| Lower Temperature Limit | -15 °C |
| Max Altitude (No Power Dissipation) | 3000 m |
| Fuel Tank Autonomy | ≥ 8 Hours |
| Noise Level | 72 dBA @ 7m |
Protection & Control
Safety & Monitoring
- Low Oil Pressure Shutdown
- Overvoltage Protection
- Overspeed Protection
- Overload Protection
- Short-Circuit Protection
- High Water Temperature Protection
- RS232/RS485 Communication Interfaces
- Optional ATS (Automatic Transfer Switch)
Quality & Compliance
Certifications
ISO 9001:2008ISO 14001:2004OHSAS 18001:2007CE CertifiedEU Environmental CompliantEPA Environmental Compliant
Applications
- Target Industries
- TelecommunicationsConstruction SitesMedical FacilitiesData CentersMining OperationsHotels & Commercial BuildingsAirports & Harbors
