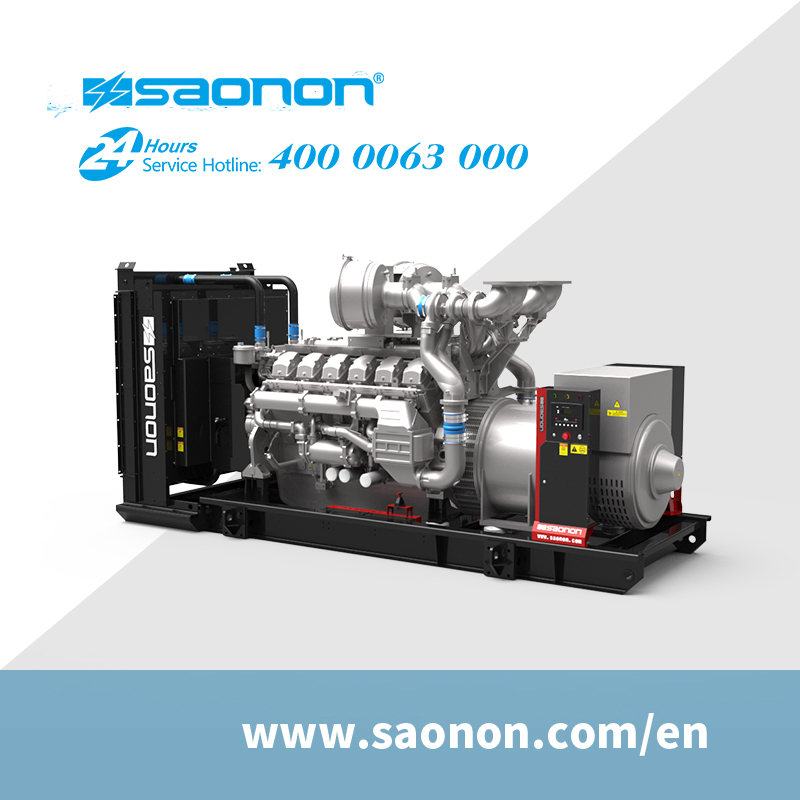

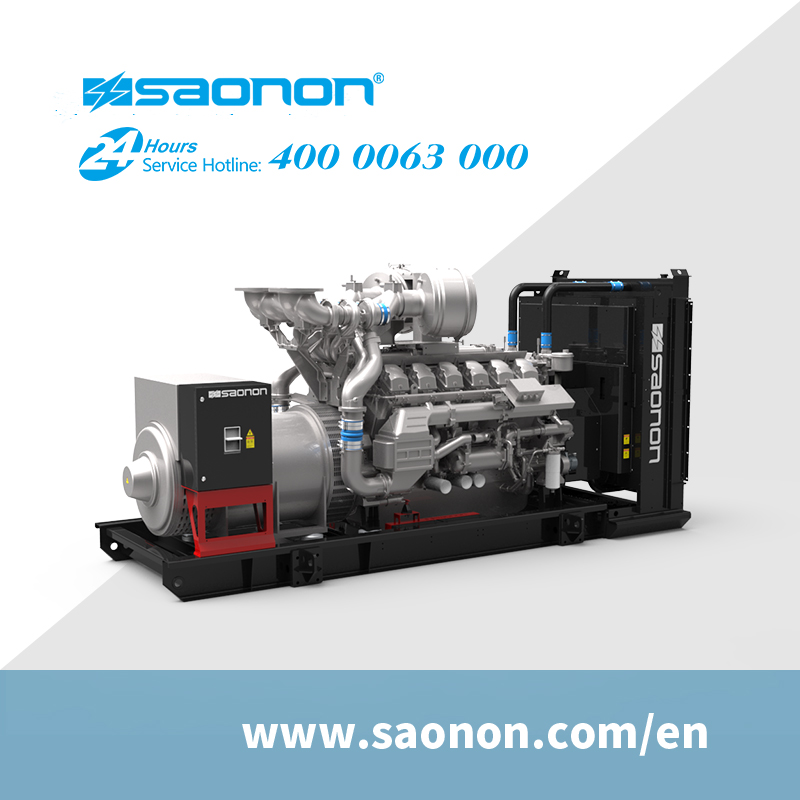

1375kVA Open Type Diesel Generator Set
This 1375kVA open type diesel generator set delivers dependable power for various applications. Its open design allows easy access for maintenance, while advanced controls ensure monitoring and protection.
Technical Specifications
Overview
High-Capacity Power Generation
This 1375kVA open-type diesel generator set is engineered for consistent and reliable power performance in demanding industrial and commercial environments. Equipped with a high-efficiency engine and alternator, the unit provides stable output suitable for both prime and standby applications. The open-type construction ensures straightforward maintenance access, while the sturdy base frame provides vibration isolation and operational stability.
Performance Metrics
Core Performance Metrics
1,375 kVA
ESP Rating
1,250 kVA
PRP Rating
1,500 r/min
Rated Speed
50 Hz
Frequency
Technical Specifications
Technical Parameters
| Parameter | Value |
|---|---|
| Rated Voltage | 400 V |
| Engine Model | 4012-46TWG2A |
| Alternator Model | LSA50.2M6 |
| Weight | 9950 kg |
| Dimensions (LxWxH) | 4800x2200x2477 mm |
Features
Key Advantages
- Robust open-type design for easy maintenance access
- Advanced monitoring and control system
- Durable steel base frame for enhanced vibration isolation
- Quality anti-corrosion coating for longevity
- Safety shutdown features for oil pressure, temperature, and speed
- Operational Standards
- ReliableSafeEnvironmentally FriendlyEconomical
