130 Series Brushless DC Motor
This brushless DC motor delivers high torque up to 14.5Nm. It offers a power output of up to 4500W.
Technical Specifications
Overview
High-Performance Industrial BLDC Motor
The 130 Series Brushless DC Motor is designed for demanding industrial applications such as robotics, automation, and precision motion control. It offers high torque density up to 14.5Nm and power outputs reaching 4500W, ensuring robust performance in a compact frame. With a focus on efficiency and reliability, this motor features Class B insulation and a maintenance-free brushless design suitable for various equipment integrations.
Key Performance Metrics
Key Performance Metrics
4,500 W
Max Rated Power
14.5 Nm
Max Rated Torque
3,000 rpm
Rated Speed
72 V
Voltage
Technical Specifications
Model Comparison Table
| Model | Rated Power (W) | Rated Torque (Nm) | Rated Current (A) | Peak Torque (Nm) | Weight (Kg) | Length (mm) |
|---|---|---|---|---|---|---|
| 130DMW190-7230 | 3,000 | 9.5 | 52 | 28 | 10.4 | 190 |
| 130DMW240-7230 | 4,500 | 14.5 | 78 | 43 | 13 | 240 |
General Specifications
Insulation Class
Class B
- Winding Type
- Star
- Hall Effect Angle
- 120 degree electrical angle
- Shaft Run Out
- 0.025 mm
- Dielectric Strength
- 500VDC for one minute
- Operating Temperature
- -20 to +40 °C

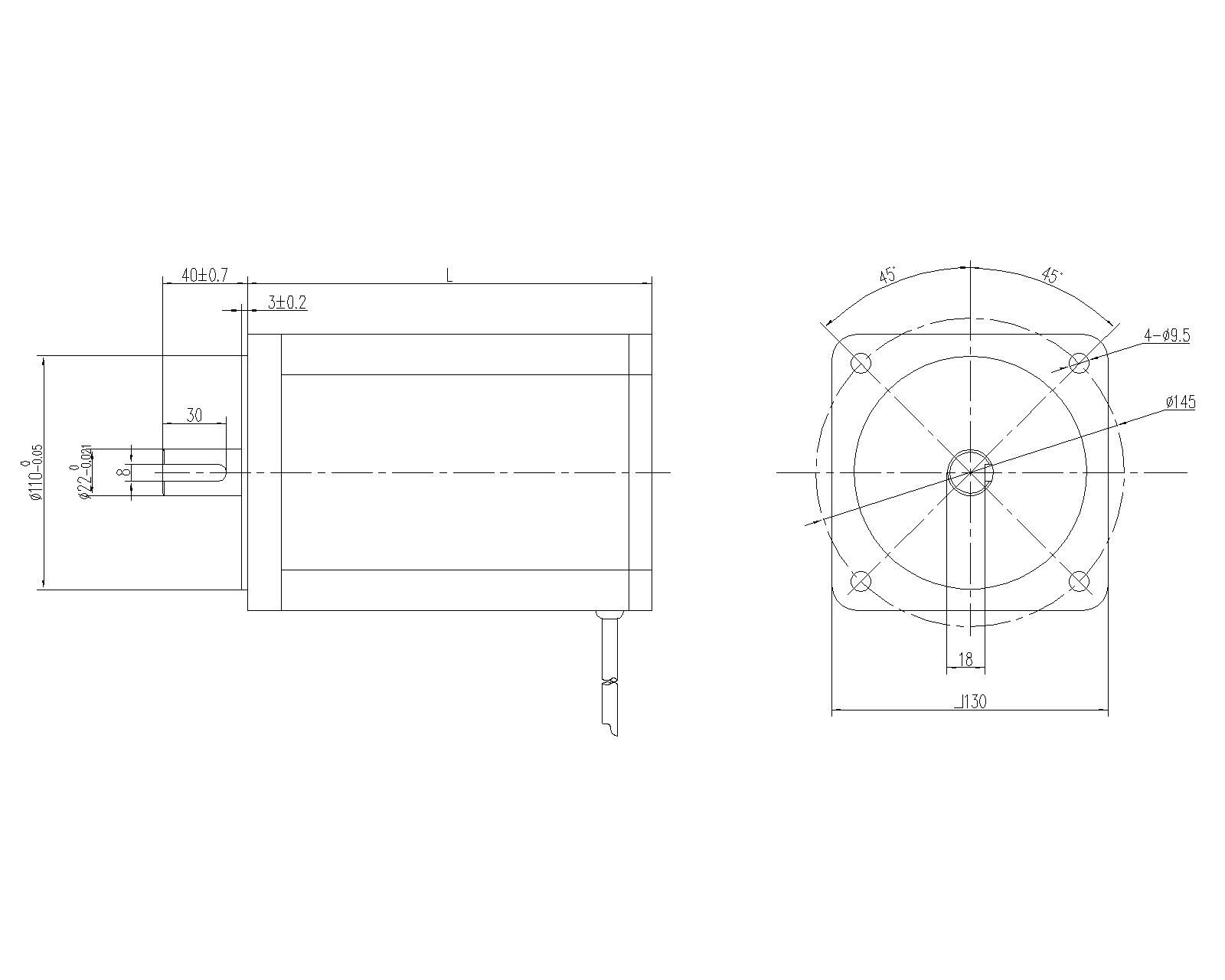

Mechanical Dimensions
- Frame Size
- 130mm Square
- Shaft Diameter
- 22 mm
- Mounting Circle Diameter
- 145 mm

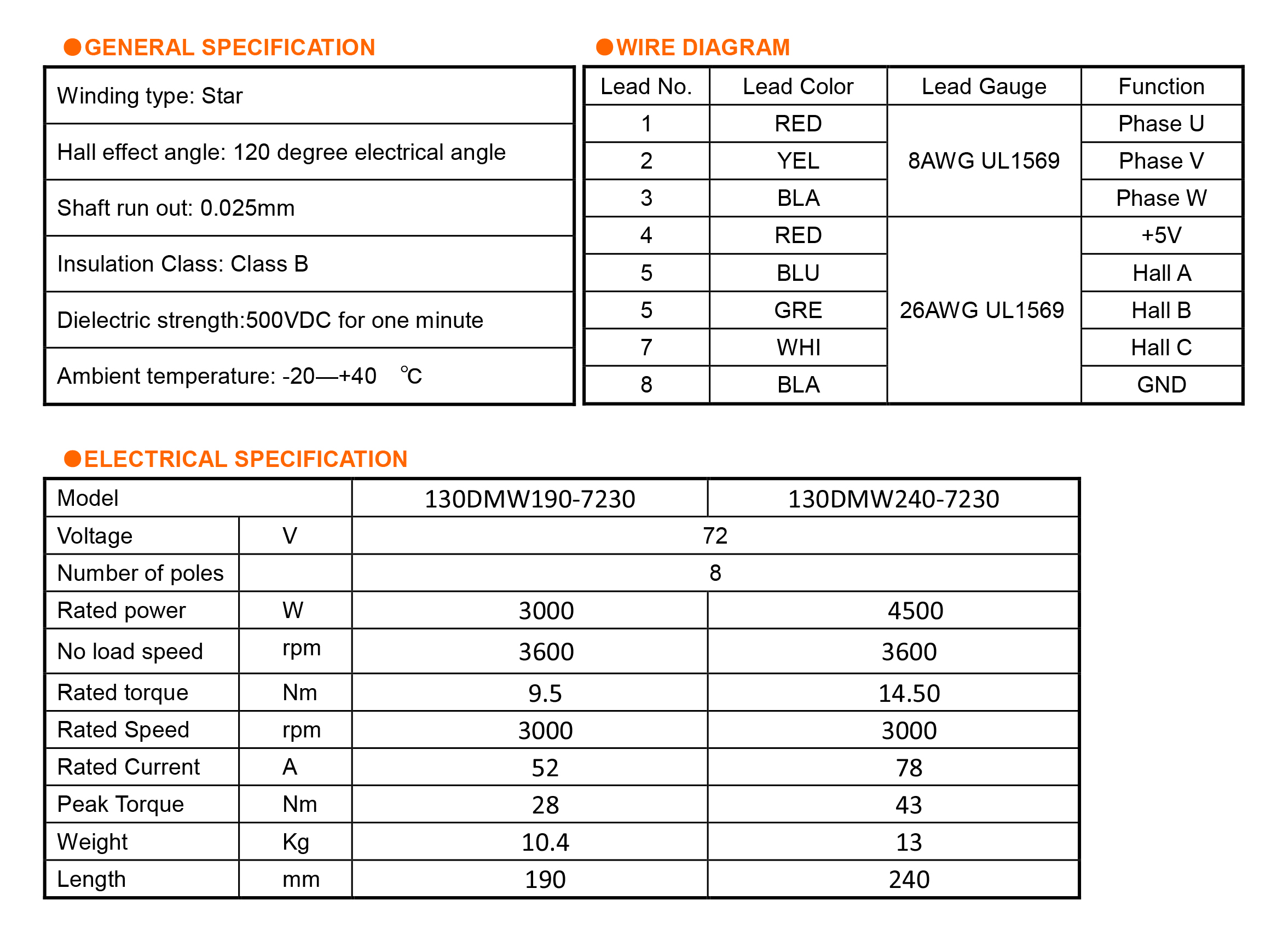

Wiring Configuration
Hall Sensor Wiring (26AWG)
- +5V (Red)
- Hall A (Blue)
- Hall B (Green)
- Hall C (White)
- GND (Black)
- Phase Wiring (8AWG)
- Phase U (Red)Phase V (Yellow)Phase W (Black)
