Technical Specifications
Overview
Effortless Trailer Maneuvering

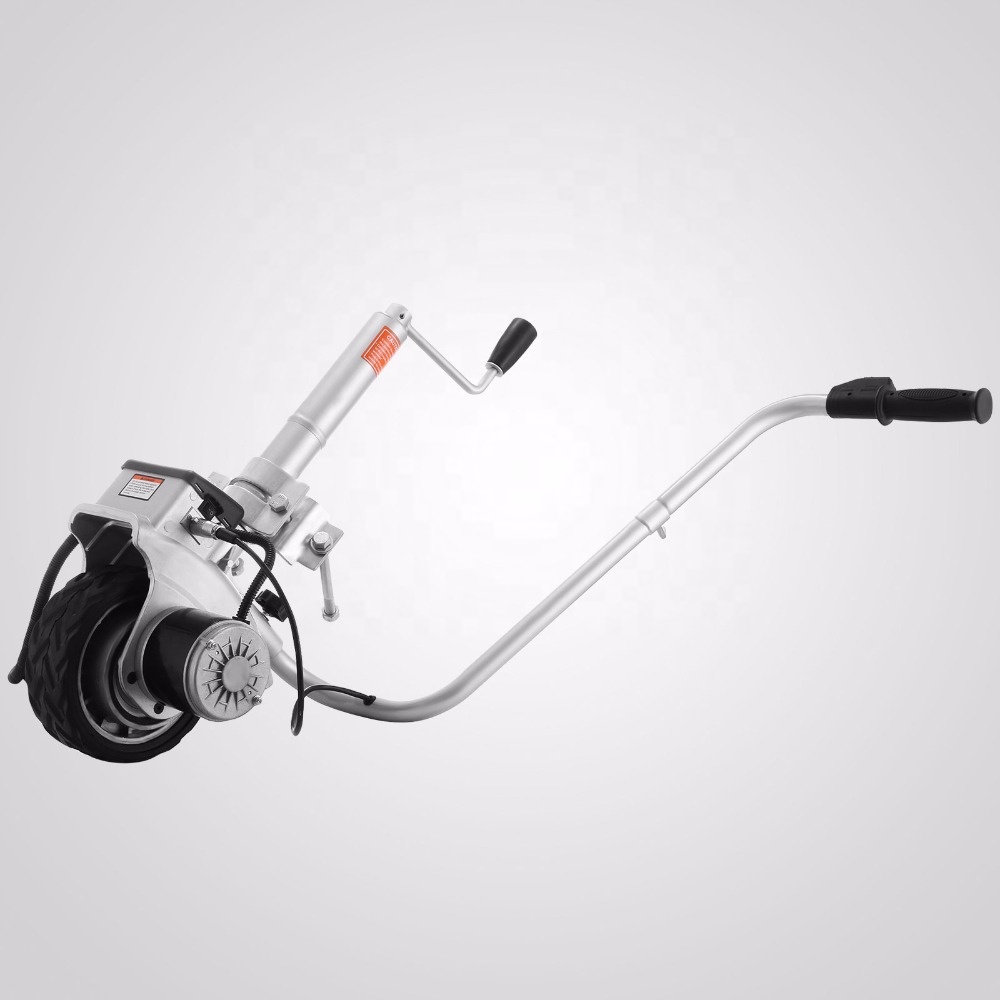

The 12V Electric Trailer Jockey Wheel is designed to simplify the positioning of caravans, boats, horse floats, and trailers. Featuring a powerful 350W motor with forward and reverse motion, it allows for precise maneuvering in tight spaces without manual strain. Equipped with an automatic brake system and an oversized anti-slip wheel, this mover provides reliable performance on slight inclines and various surfaces.
Performance Metrics
Key Performance Metrics
2,270 kg
Max Vehicle Load
272 kg
Max Jockey Wheel Load
350 W
Motor Power
5 Degrees
Max Incline
Technical Specifications
Technical Details
| Parameter | Value |
|---|---|
| Motor Voltage | 12V |
| Min. Battery Power | 12V / 18A |
| Gear Ratio | 326:1 |
| Max Speed | 6-7 m/min |
| Tire Diameter | 19 cm |
| Adjustable Clamp Height | 32-42 cm |
Features
Key Features
- Automatic brake function for safety
- Forward and reverse motion control
- Oversized anti-slip wheel for traction
- Integrated control box with overheat protection
- Locking pin and cover for theft prevention
- Adjustable lift handle for height customization
Safety & Usage
- Operational Safety
- Automatic BrakeOverheat ProtectionIndoor/Outdoor UseCheck Battery Connections
