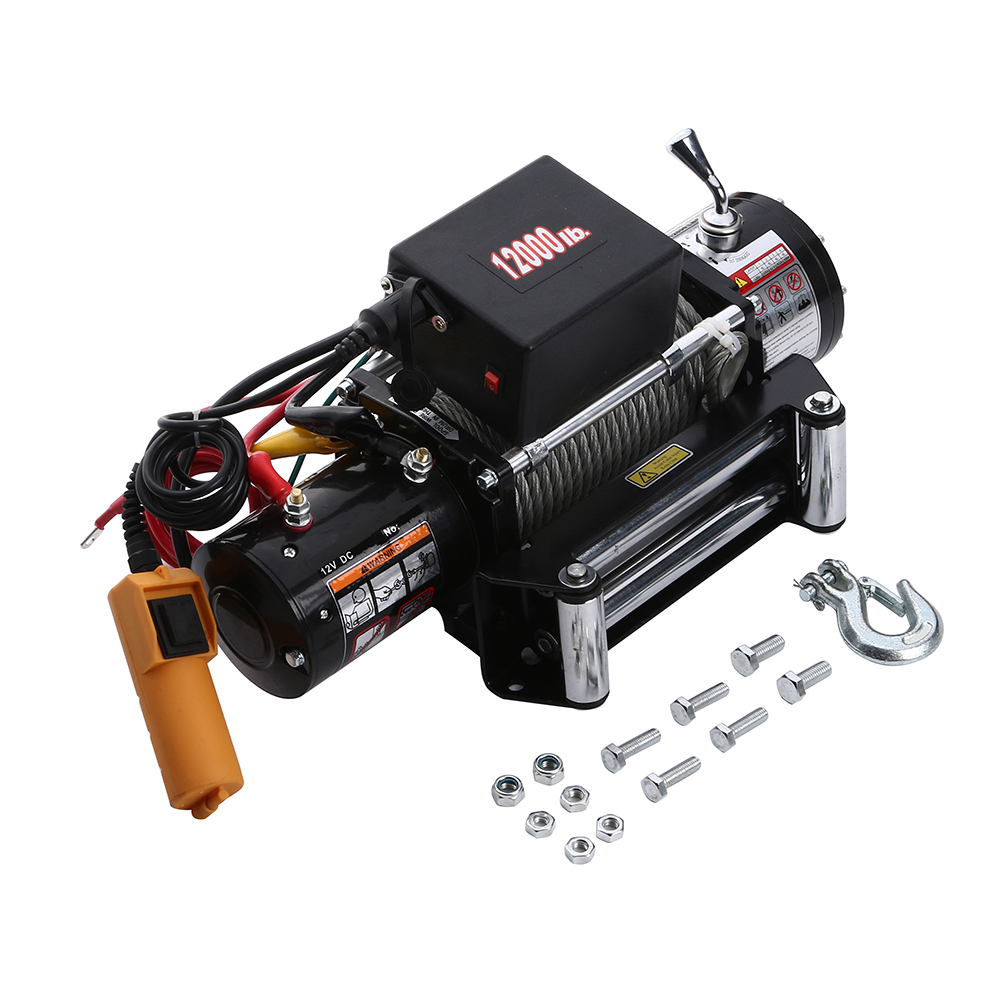

12V DC Electric Winch
This electric winch is designed for heavy-duty applications like vehicle recovery and towing. It features a powerful motor, durable steel cable, and includes a remote control for safe operation.
Technical Specifications
Overview
High-Performance 12V DC Electric Winch
This 12000lb electric winch is engineered for heavy-duty vehicle recovery and industrial lifting applications. Featuring a powerful 6.8hp series-wound motor and a full metal 3-stage planetary gear system, it delivers consistent, reliable pulling power. The unit includes advanced safety features like an automatic braking system and weather-sealed components, ensuring durability in demanding environments.
Performance Metrics
Rated Line Pull
12,000 lbs
Rated Line Pull
5,454 kgs
Rated Line Pull
Motor Power
6.8 hp
Horsepower
5 kw
Power Output
- Gear Ratio
- 402 :1
Technical Specifications
- Wire Rope Dimensions
- 0.43" x 92' (11mm x 28m)
- Drum Size
- 2.83" x 8.58" (72mm x 218mm)
- Overall Dimensions
- 23" x 7.3" x 9.3" (583mm x 186mm x 236mm)
Features
Key Features
- Power load in and Power out
- Full metal 3-stage planetary gear system
- Automatic braking system
- Lever shift clutch for Free-spooling
- Weather sealed solenoid with ON/OFF
- Heavy duty 4-Way Roller fairlead
- Control Options
- Sealed handlebar remoteWireless remote control (optional)Handsaver strap included
