Technical Specifications
Overview

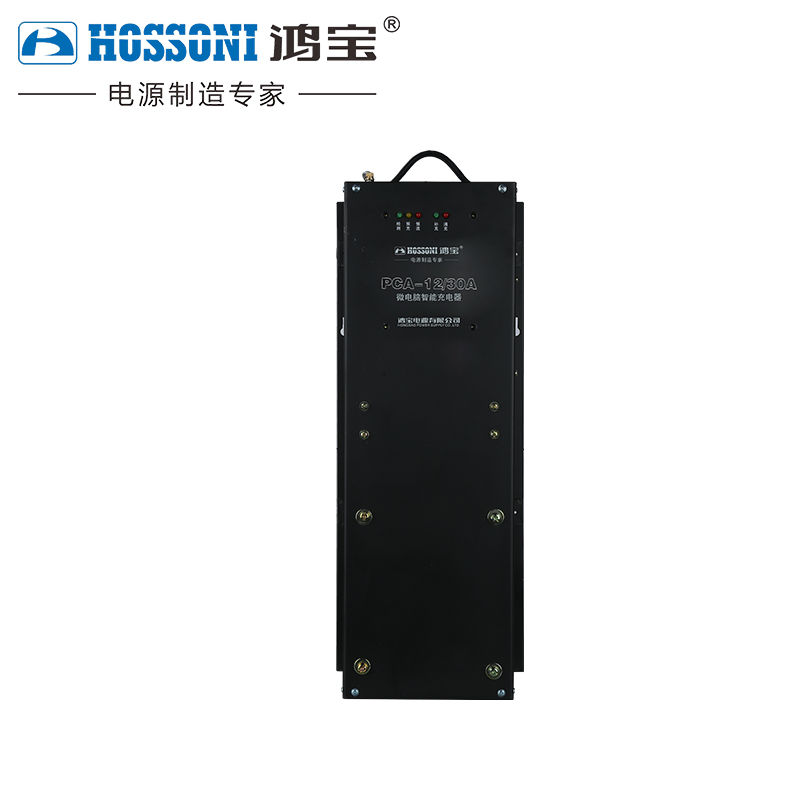

Intelligent Battery Charging Solution
This advanced deep-cycle lead-acid battery charger utilizes microprocessor control to deliver a precise, five-step charging process. By automatically adjusting current and voltage based on real-time battery state, including voltage and temperature, it ensures batteries are charged to their optimum condition. Designed for convenience and long-term connection, it offers a safe, reliable power supply with comprehensive protection features.
Technical Specifications
Charging Current
15 A
Low Setting
30 A
High Setting
- Charging Voltage
- 12 V
- Input Voltage
- AC 220V ±10%
- Charging Method
- Fully automatic 5-step process
Operating Environment
- Ambient Temperature
- -10°C to +40°C
- Relative Humidity
- < 90%
- Max Temperature Rise
- 60 °C
Safety & Protection
Emergency Controls
Emergency Stop ButtonC10 Circuit Breaker
- Protection Features
- Over-temperature protectionOverload protectionReverse polarity protectionShort circuit protectionNo-spark connection

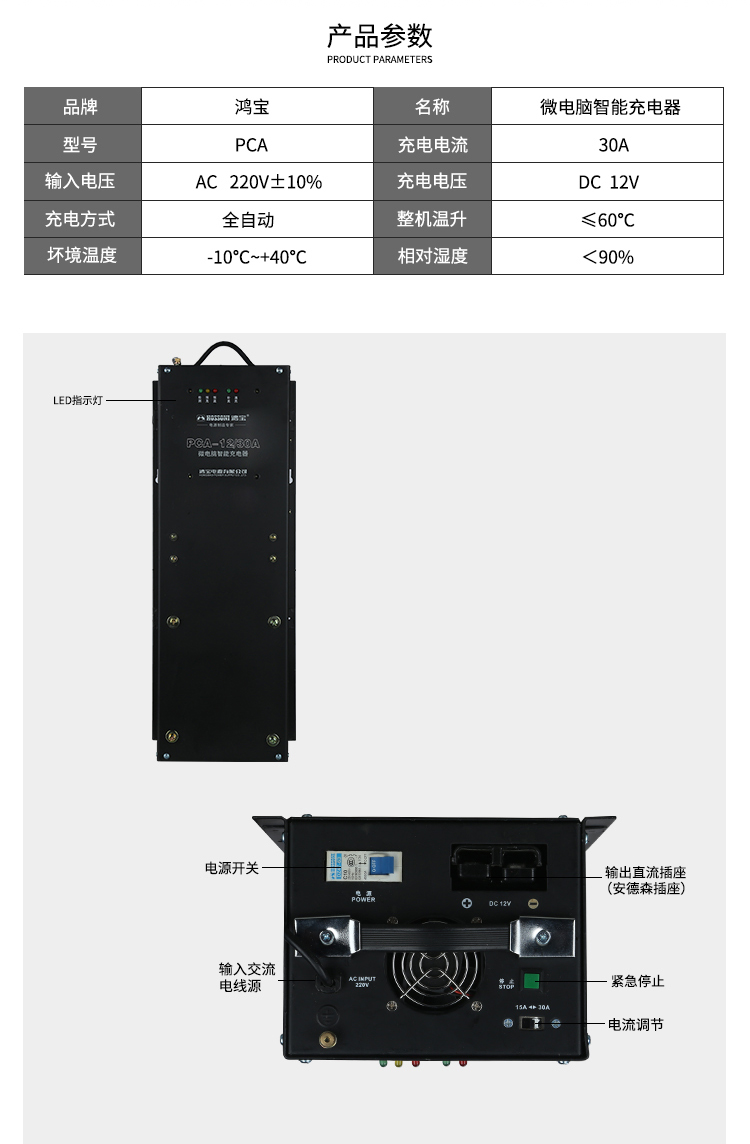

Interface & Connectivity
Interface Components
- LED Indicators
- Power Switch
- Current Adjustment Dial
- Anderson DC Output Socket
