Technical Specifications
Overview
Reliable Silent Power Solution

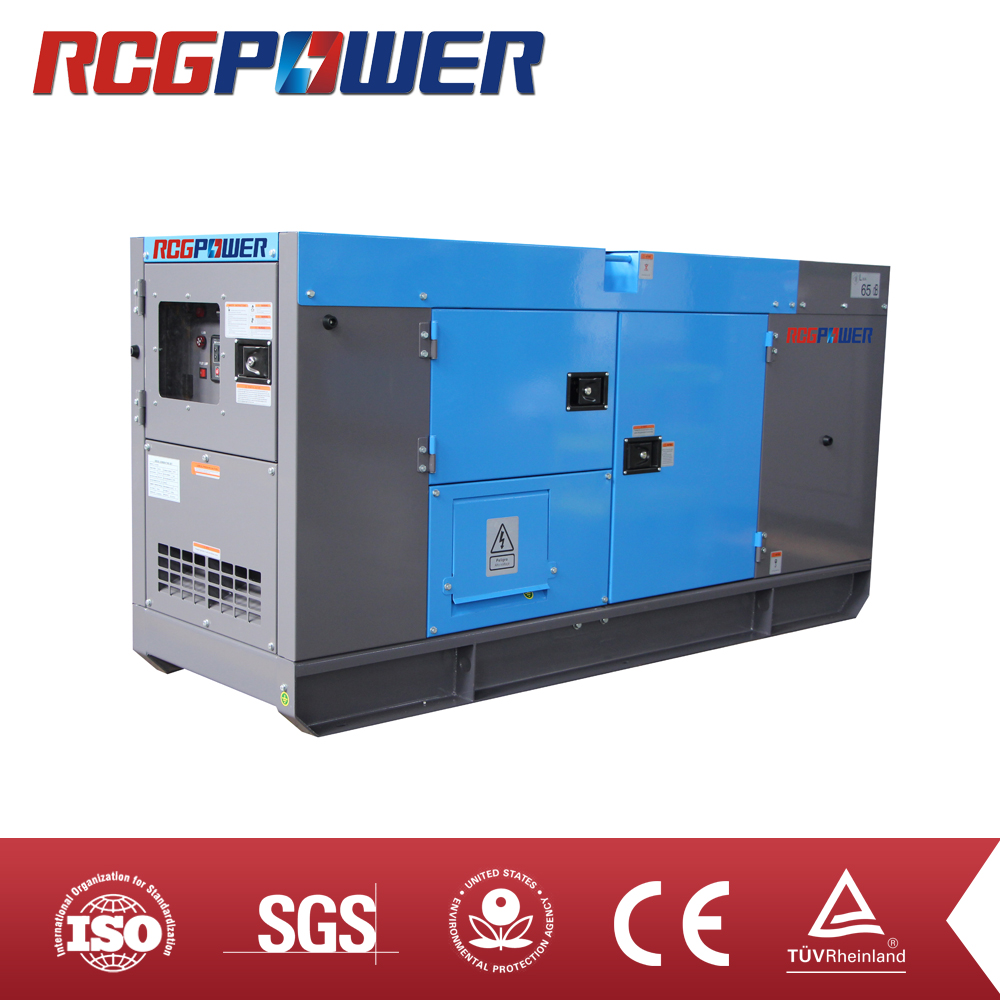

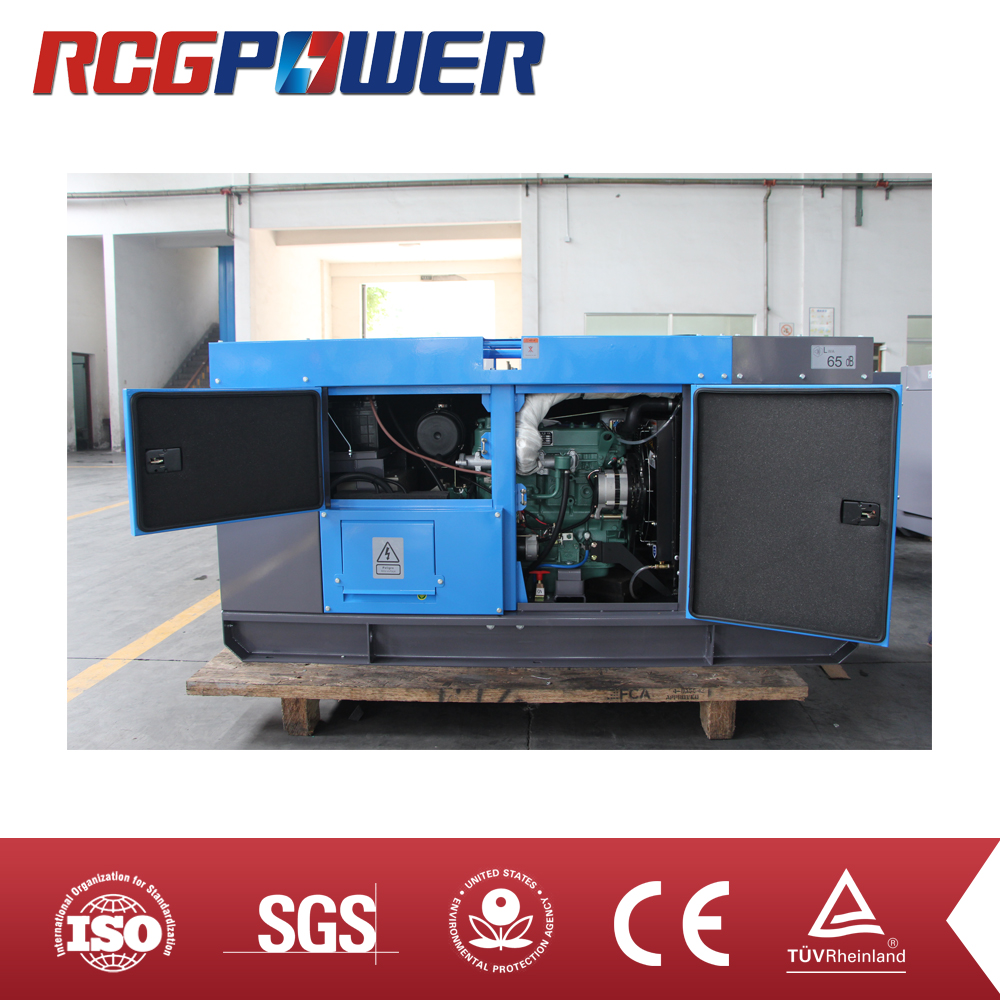

This 12kW silent diesel generator is engineered for consistent and quiet power delivery, making it an ideal choice for residential, commercial, and noise-sensitive environments. Featuring a robust 4-stroke engine and a high-efficiency alternator, it provides reliable prime and standby power. The unit is encased in a soundproof canopy to minimize noise pollution while ensuring stable operation across various load conditions.
Performance Metrics
Power Output
12 kW
Prime Power
13 kW
Standby Power
1,500 RPM
Rated Speed
- Certifications & Standards
- ISOCESGSTÜV Rheinland
Engine Specifications
Engine Configuration
| Parameter | Specification |
|---|---|
| Cylinders | 4 In-Line |
| Cycle | 4 Stroke |
| Displacement | 2.27 L |
| Compression Ratio | 17:1 |
| Governing | Electronic |
- Fuel Consumption (100% Load)
- 3.5 L/h
Alternator Specifications
Key Features
- 100% Copper Windings
- IP23 Protection
- Self-excited, SHUNT Excitation
- Voltage Regulation ± 1.0%
General Specifications
Electrical Configuration
- 400V / 230V Voltage
- 50Hz Frequency
- 3 Phase, 4 Wires
- 0.8 Power Factor
Operating Conditions
40 °C Ambient Temp1000m Altitude
