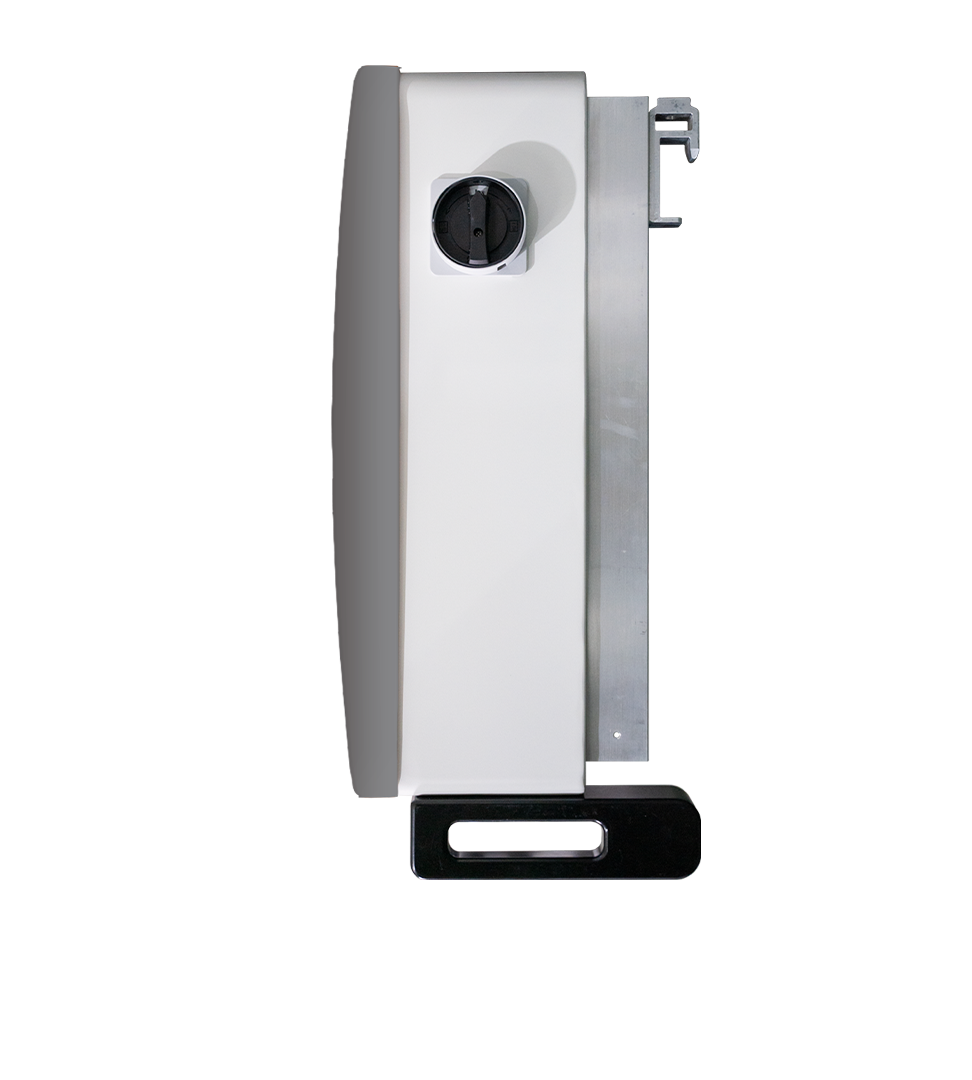

125kW String Inverter for Solar PV Systems
This string inverter offers a maximum efficiency of 99.1% and a DC/AC ratio of 150%. It is compatible with bifacial modules and provides strong reactive power compensation.
Technical Specifications
Overview
High-Efficiency 125kW Solar PV Inverter
This 5G three-phase string inverter is engineered for large-scale commercial and industrial solar photovoltaic applications. Delivering a maximum efficiency of 99.00%, it supports a 1.5 DC/AC load ratio to optimize energy generation. Designed for versatility, the system features up to 20 string inputs and integrated safety measures including touch-safe DC fuse holders.
Technical Performance
Key Performance Indicators
125 kW
Rated Power Output
99 %
Maximum Efficiency
20 strings
Max String Inputs
1.5 ratio
DC/AC Load Ratio
- Inverter Topology
- Three-phase string inverter
Safety and Protection
- Integrated Safety Measures
- Touch-safe DC fuse holdersOvervoltage protectionArc fault detection
Operation and Interface
Operational Controls
- Integrated LCD status display
- Menu navigation (UP, DOWN, ESC, ENTER)
- Operation and Alarm status LEDs
- Remote diagnostics capability
