Technical Specifications
Overview
Portable Solar Power Solution

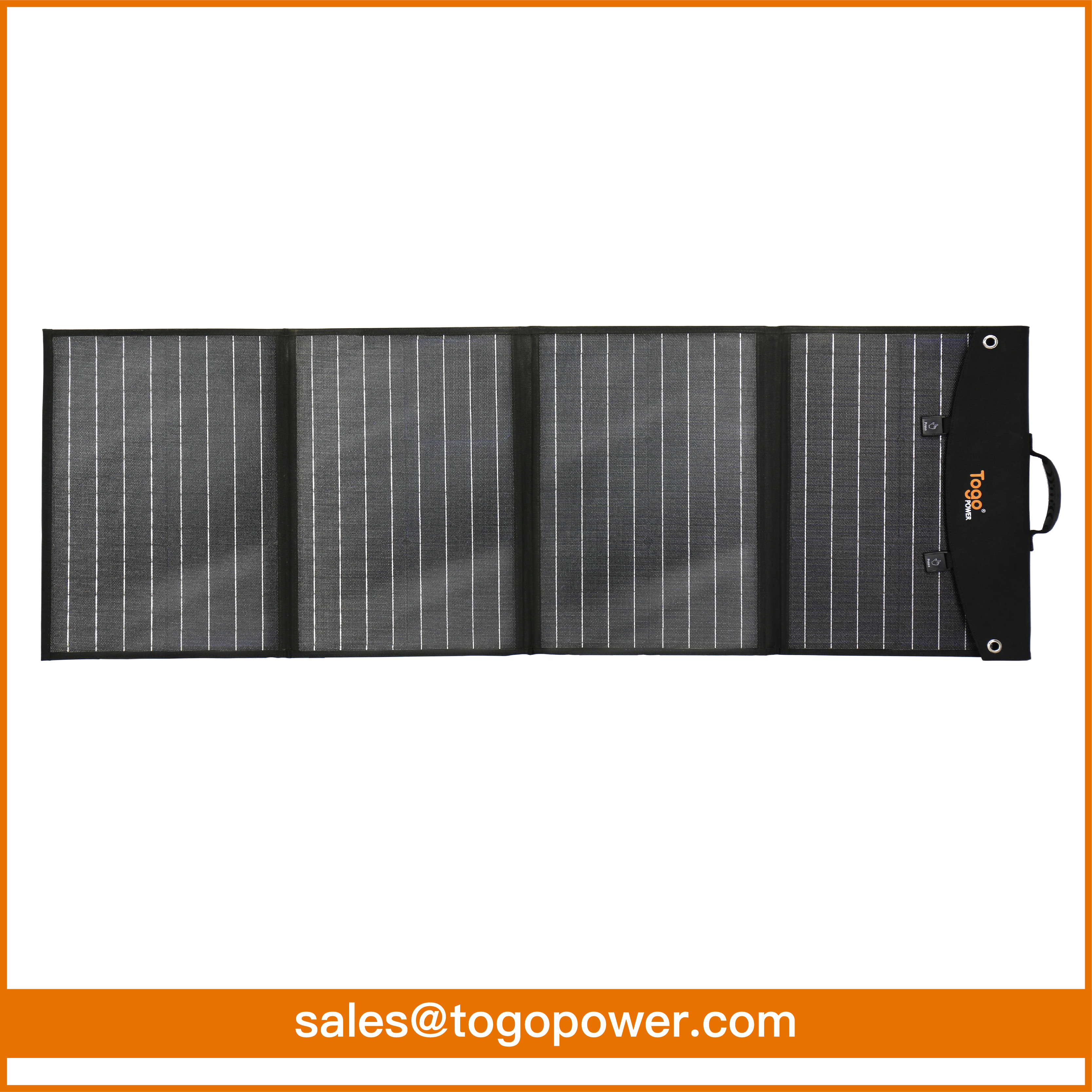

This 120W portable solar panel is engineered for high-efficiency energy conversion, boasting 23% cell efficiency for reliable power in outdoor settings. Designed for versatility and ease of use, it features a foldable structure with integrated kickstands, making it an ideal companion for camping, RV trips, and off-grid power generation. With multiple output options including DC, USB-A, and USB-C, it seamlessly integrates with portable power stations and mobile devices.
Performance Metrics
Peak Power Output
120 W
Peak Power
23 %
Cell Efficiency
Technical Specifications
USB Output Ports
| Port Type | Voltage Range | Max Current |
|---|---|---|
| USB-A | 5-12V | 3.4A |
| USB-C | 5-12V | 3.1A |
- Cell Type
- Monocrystalline (4pcs)
- DC Output
- 18V / 6.6A Max
Physical Dimensions
Dimensions
| State | Dimensions (mm) |
|---|---|
| Unfolded | 1650 x 520 x 30 |
| Folded | 520 x 370 x 50 |
- Weight
- 4.6 kg
Features
- Key Features
- Foldable DesignWaterproofAdjustable KickstandsPortable Bag
Accessories
Included Accessories
- 1x User Manual
- 1x 1.5m Anderson 30A Cable
- 1x 3m Anderson 30A to MC4 adapter
- 1x 3m Anderson 30A to 8mm DC adapter
