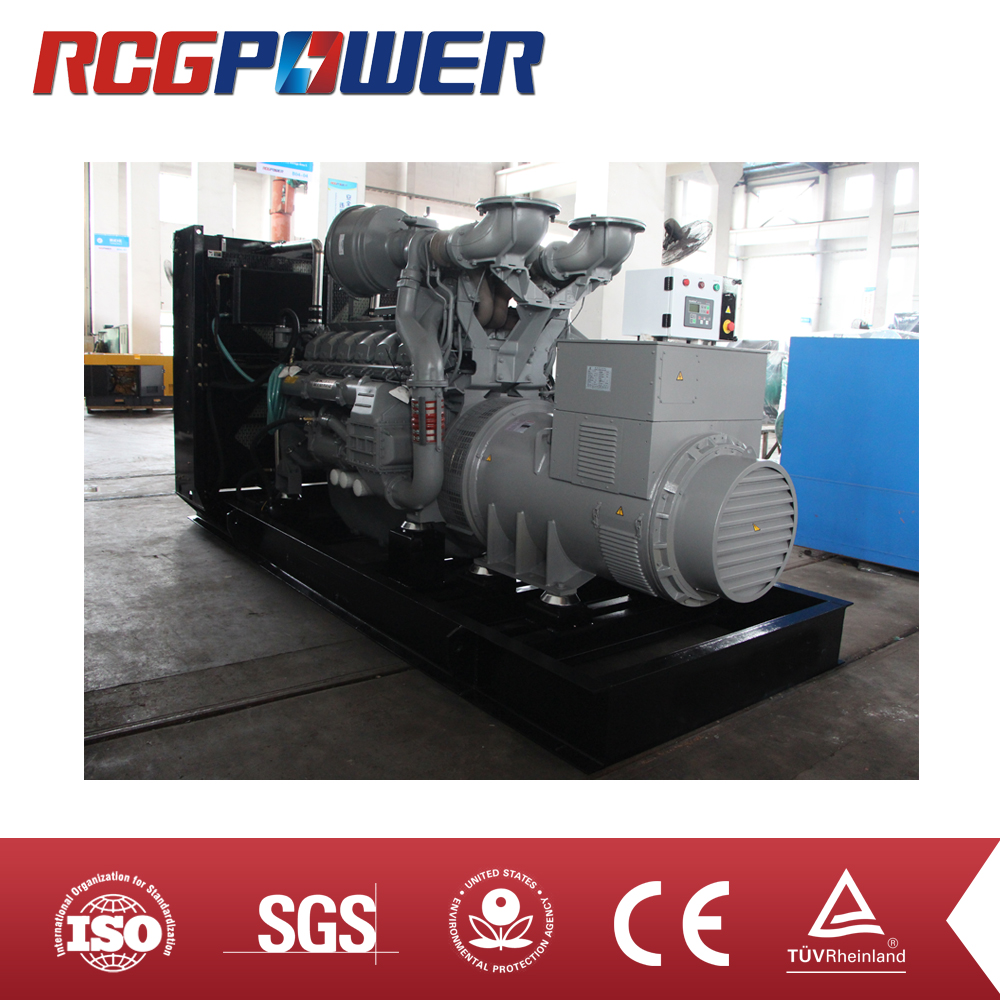

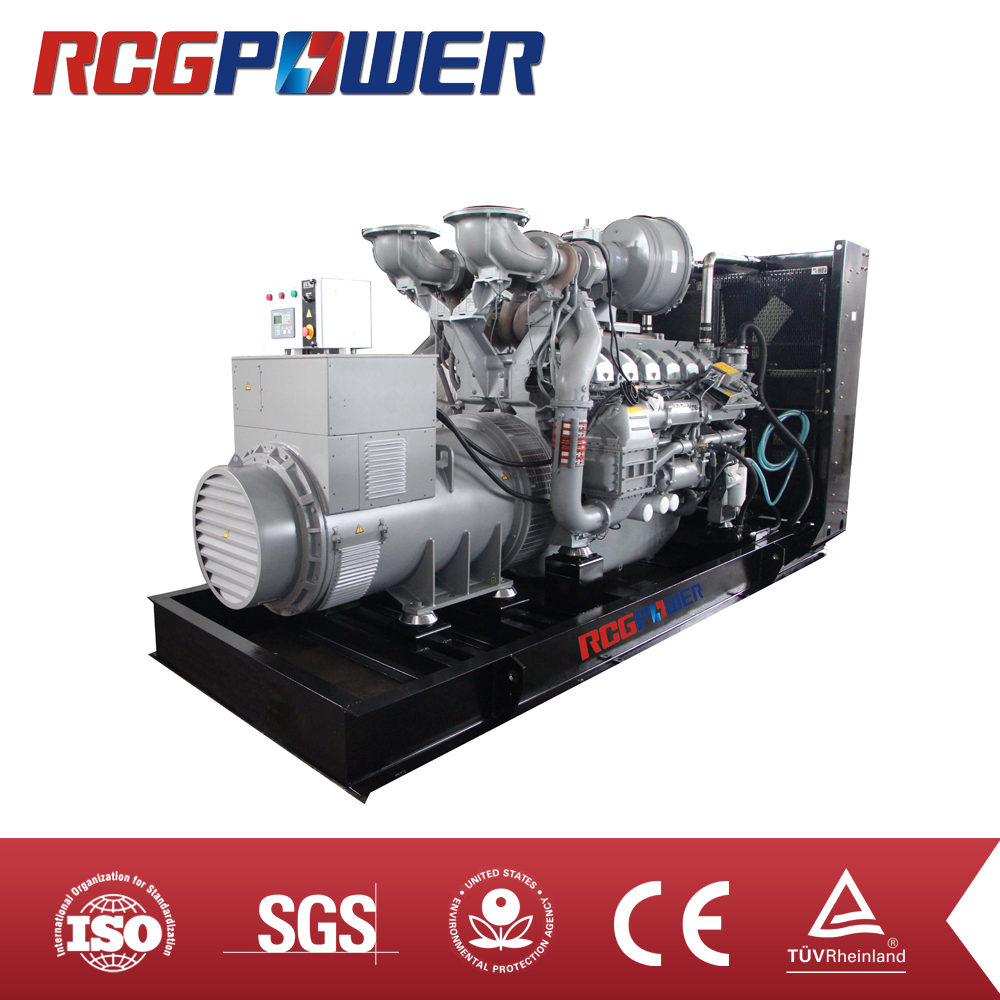

1200kW Diesel Generator, Open Type
This open-type diesel generator delivers up to 1200kW of power. It is ideal for industrial, commercial, and emergency applications.
Technical Specifications
Overview
High-Performance Industrial Power Solution
This open-type diesel generator is engineered for reliable continuous and standby power supply in demanding industrial and commercial environments. Equipped with a robust 12-cylinder engine and a high-efficiency alternator, it delivers consistent performance with a prime power output of 1000 kW. Its open design ensures straightforward access for routine maintenance, while advanced electronic governing and protection systems guarantee safe, stable operation.
Performance Metrics
Key Power Ratings
1,000 kW
Prime Power
1,100 kW
Standby Power
1,500 RPM
Rated Speed
Engine Specifications
Engine Configuration
| Parameter | Value |
|---|---|
| Cylinders | 12 (V-Alignment) |
| Displacement | 45.842 L |
| Compression Ratio | 13:1 |
| Cooling System | Water Cooled |
| Governing | Electronic |
Fluid Capacities
- Coolant Capacity: 73 L
- Lubricant Oil Capacity: 177 L
Alternator Specifications
Alternator Characteristics
- Insulation Class: H
- Protection: IP23
- Voltage Regulation: ± 1.0%
- Windings: 100% Copper
- Excitation System: Self-excited, SHUNT
Operating Environment
- Environmental Limits
- Ambient Temp: 40°CAltitude: 1000m3 Phase, 4 Wires
Compliance
Standards & Compliance
ISO CertifiedSGS VerifiedCE CompliantTÜV Rheinland
