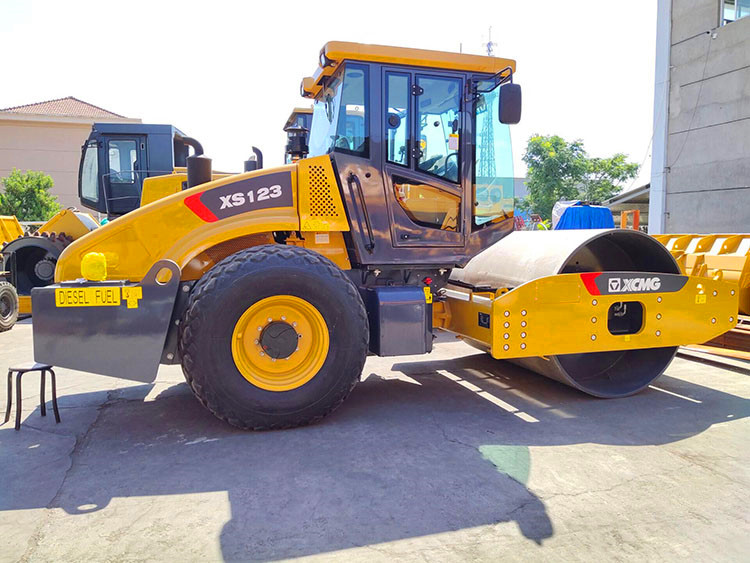

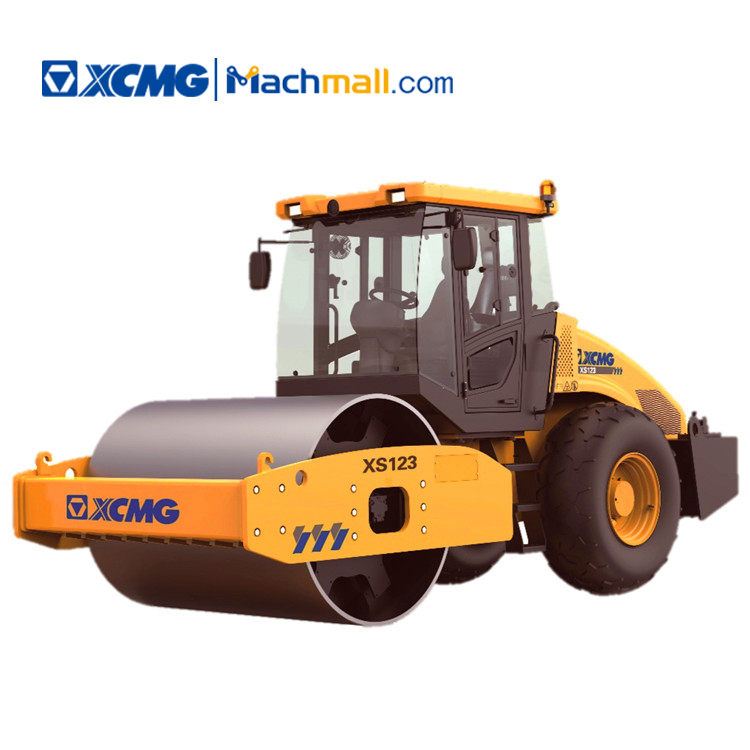

12-Ton Single Drum Vibratory Road Roller
This 12-ton single drum vibratory road roller is a self-propelled, full-hydraulic machine. It offers high compaction efficiency and quality for various construction projects.
Technical Specifications
Overview
High-Efficiency 12-Ton Vibratory Roller
This 12-ton self-propelled, full-hydraulic vibratory roller is engineered for superior compaction performance across large-scale projects like highways, airport runways, and dams. It features a reliable turbocharged engine and an advanced closed hydraulic drive system that provides excellent gradeability and infinite speed control. Built for durability, the unit is designed to handle a variety of materials including asphalt, sandy soil, and semi-cohesive substrates with high efficiency.
Technical Specifications
- Operating Weight
- 12000 kg
- Front Drum Load
- 6700 kg
- Rear Axle Load
- 5300 kg
Performance Metrics
- Static Linear Pressure
- 308 N/cm
- Vibration Frequency
- 30/35 Hz
- Nominal Amplitude
- 1.8/0.9 mm
Key Features
Braking Systems
- Drive axle integrated brake
- Wet type front drum reducer brake
- Closed hydraulic system emergency brake
- Parking brake
- Suitable Applications
- Highway ConstructionRailway EmbankmentsAirport RunwaysDam ConstructionAsphalt Pavement
