12-Inch Metal Cutting Wheel
This 12-inch cutting wheel is designed for cutting metal. It has dimensions of 300*3.0*25.4mm and is suitable for cutting steel, stainless steel, and other ferrous metals.
![[copy]Gold Elephant metal cutting wheels 12 inch cutting wheel discs - Image 1](https://cdn.merheinflare.com/public-site/products/copygold-elephant-metal-cutting-wheels-12-inch-cutting-wheel-discs/2.jpg)
![[copy]Gold Elephant metal cutting wheels 12 inch cutting wheel discs - Image 2](https://cdn.merheinflare.com/public-site/products/copygold-elephant-metal-cutting-wheels-12-inch-cutting-wheel-discs/1.jpg)
![[copy]Gold Elephant metal cutting wheels 12 inch cutting wheel discs - Image 3](https://cdn.merheinflare.com/public-site/products/copygold-elephant-metal-cutting-wheels-12-inch-cutting-wheel-discs/0.jpg)
Technical Specifications
Product Overview
High-Performance Industrial Cutting Wheel
This 12-inch metal cutting wheel is engineered for professional-grade performance in demanding industrial environments. Featuring a reinforced T41 flat design and a medium-hard bond, it provides an optimal balance between fast cutting action and extended service life. It is specifically designed for efficient processing of steel, stainless steel, and cast iron.
Technical Specifications

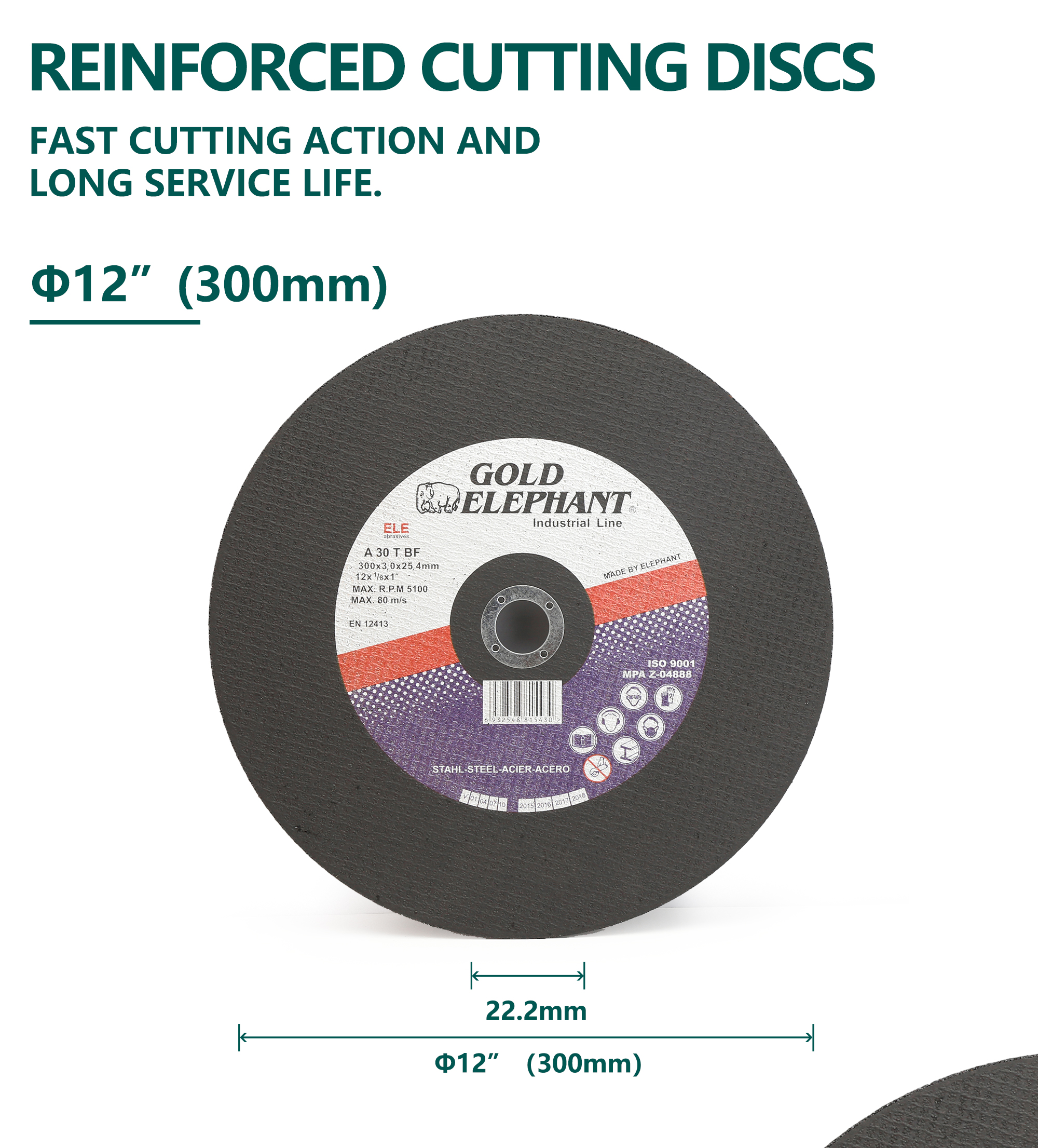

Dimensions
| Metric (mm) | Imperial (inch) |
|---|---|
| 300 x 3.0 x 25.4 mm | 12 x 1/8 x 1 inch |
- Wheel Type
- T41 (Large Flat Wheel)
- Abrasive Grade Options
- A 30 Q BFA 30 T BF
Performance Metrics
Operating Limits
5,100 RPM
Maximum Rotation Speed
80 m/s
Maximum Linear Speed

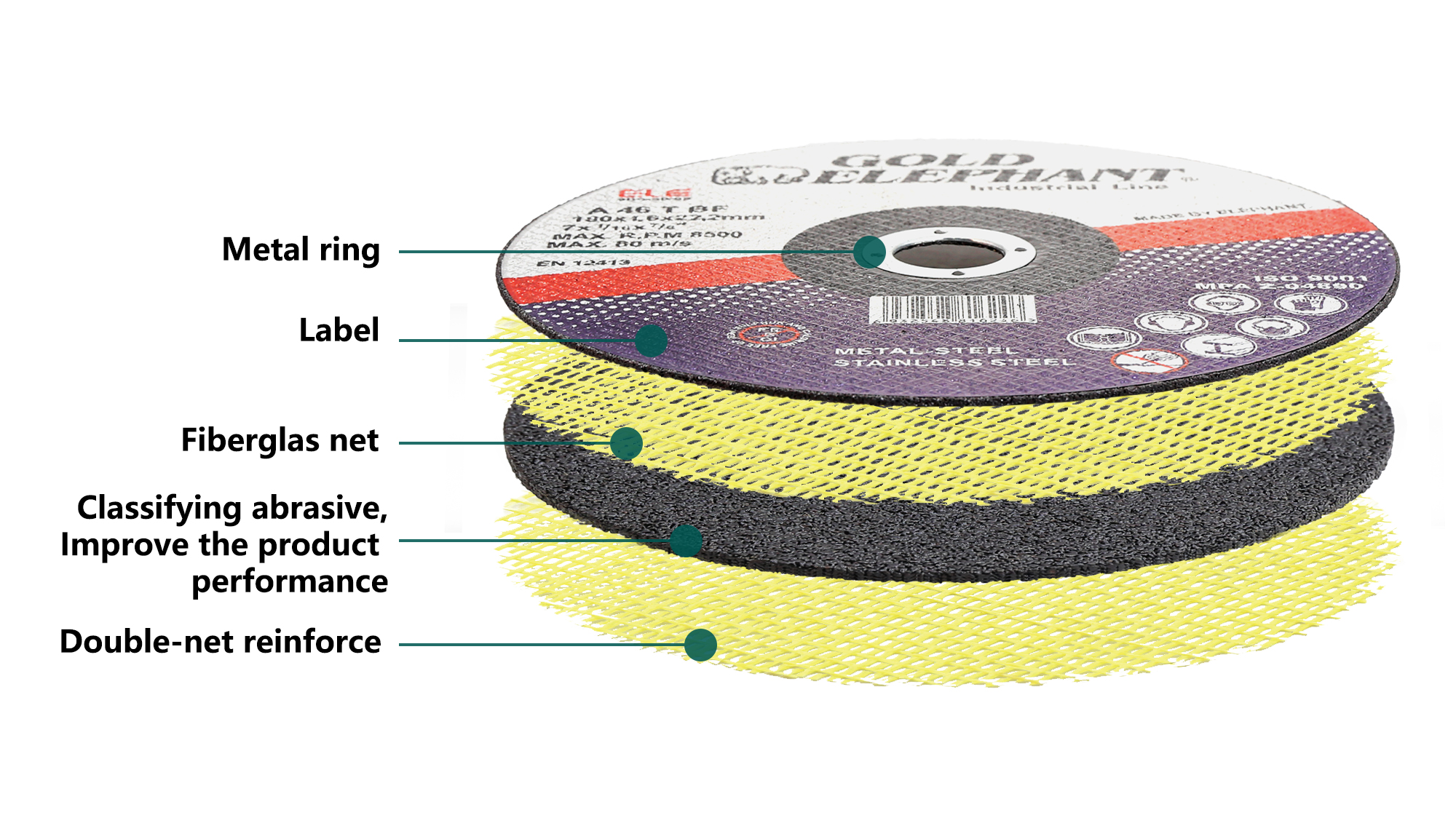

Material & Construction
Material Composition
- Normal Corundum abrasive material
- Medium-hard bond for optimal performance ratio
- Double-net reinforced fiberglass for high durability
- Includes metal ring for secure mounting
Applications
- Suitable Materials
- SteelStainless SteelAlloyed SteelCast IronFerrous Metals
Compliance & Quality
Certifications
ISO 9001MPA Z-04888EN 12413
