12-Channel Foldback LED Power Mixer
This 12-channel power mixer is designed for live sound reinforcement and recording. It features a foldback design for easy monitoring and LED indicators for visual feedback.
Technical Specifications
Overview
Professional 12-Channel Power Mixer

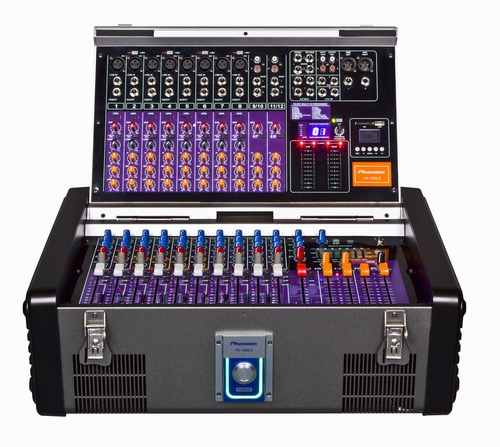

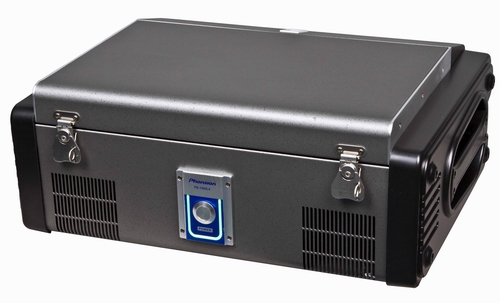

The PS-1200XL is a professional 12-channel power mixer designed for high-performance audio environments. It features a unique folding design for easy transport and protection, integrated LED level displays for precise monitoring, and a robust 350W+350W output at 8 ohms. With built-in DSP effects, a microphone preamplifier, and USB recording capabilities, this mixer provides a comprehensive solution for live sound reinforcement and recording applications.
Performance Metrics
Key Technical Metrics
350 W
Main Power Output per Channel
90 dB
S/N Ratio
0.005 %
Total Harmonic Distortion (T.H.D.)
Audio Capabilities
Input/Output Configuration
- 8 Mono Channels
- 2 Stereo Channels
- 2 Group Main Output
- 4 Group AUX Output
- 2 Group Stereo Foldback
Equalization Parameters
| Band | Frequency | Range |
|---|---|---|
| HI | 12 kHz | ±15dB |
| MID | 2.5 kHz | ±15dB |
| LOW | 80 Hz | ±15dB |
Technical Specifications
- Frequency Response
- 20Hz-20KHz
Features
- Integrated Features
- Built-in Compressor16 DSP EffectsUSB RecordingMP3 PlaybackEL Blacklight DisplayFoldable DesignLow-Cut Filter
